Engine Control System

DTC 4 - Crank,/Top Dead Center/Cylinder Position Sensors

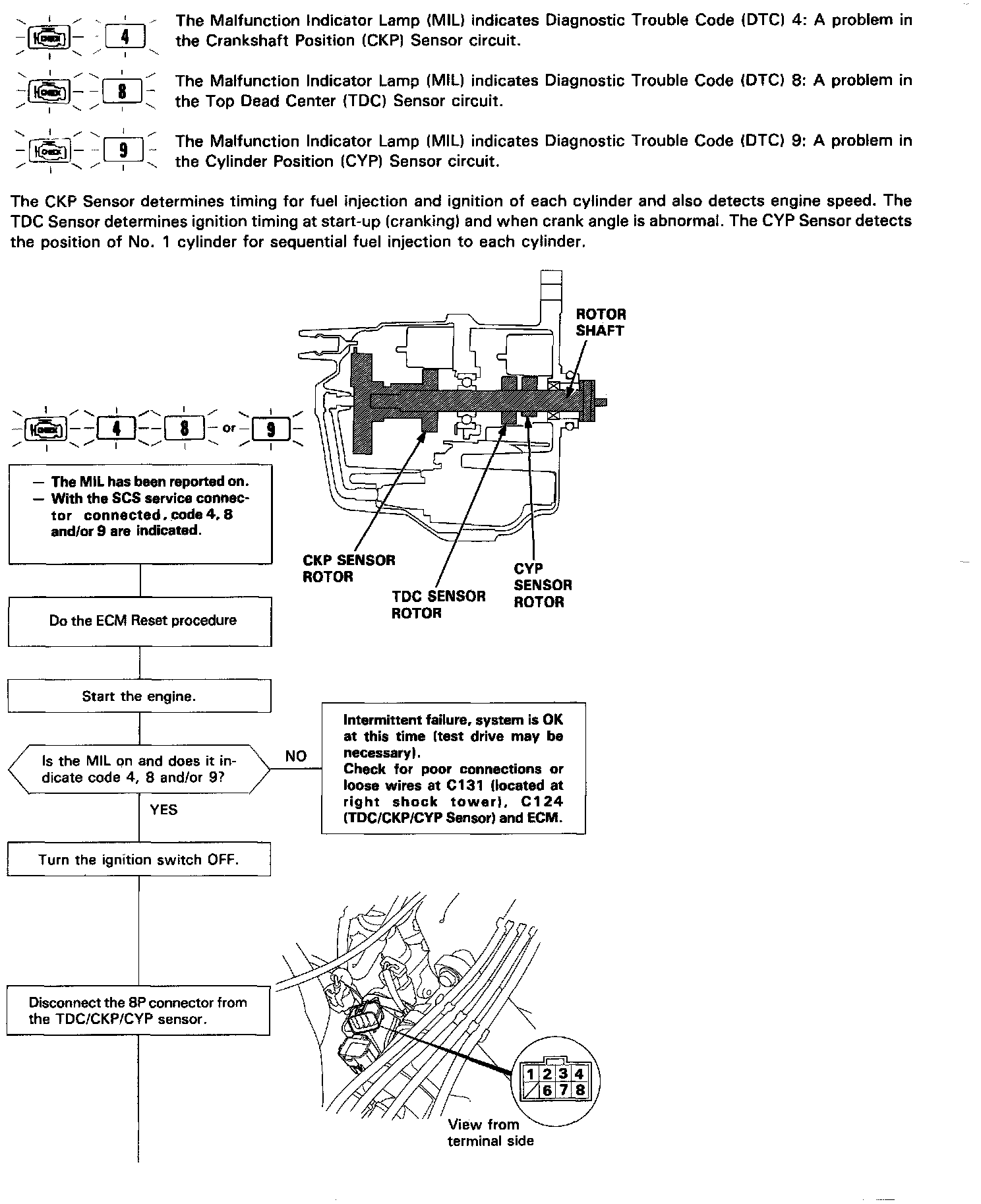

DTC 4, 8, 9: Crank/Top Dead Center/Cylinder Position Sensors, Part 1 Of 2:

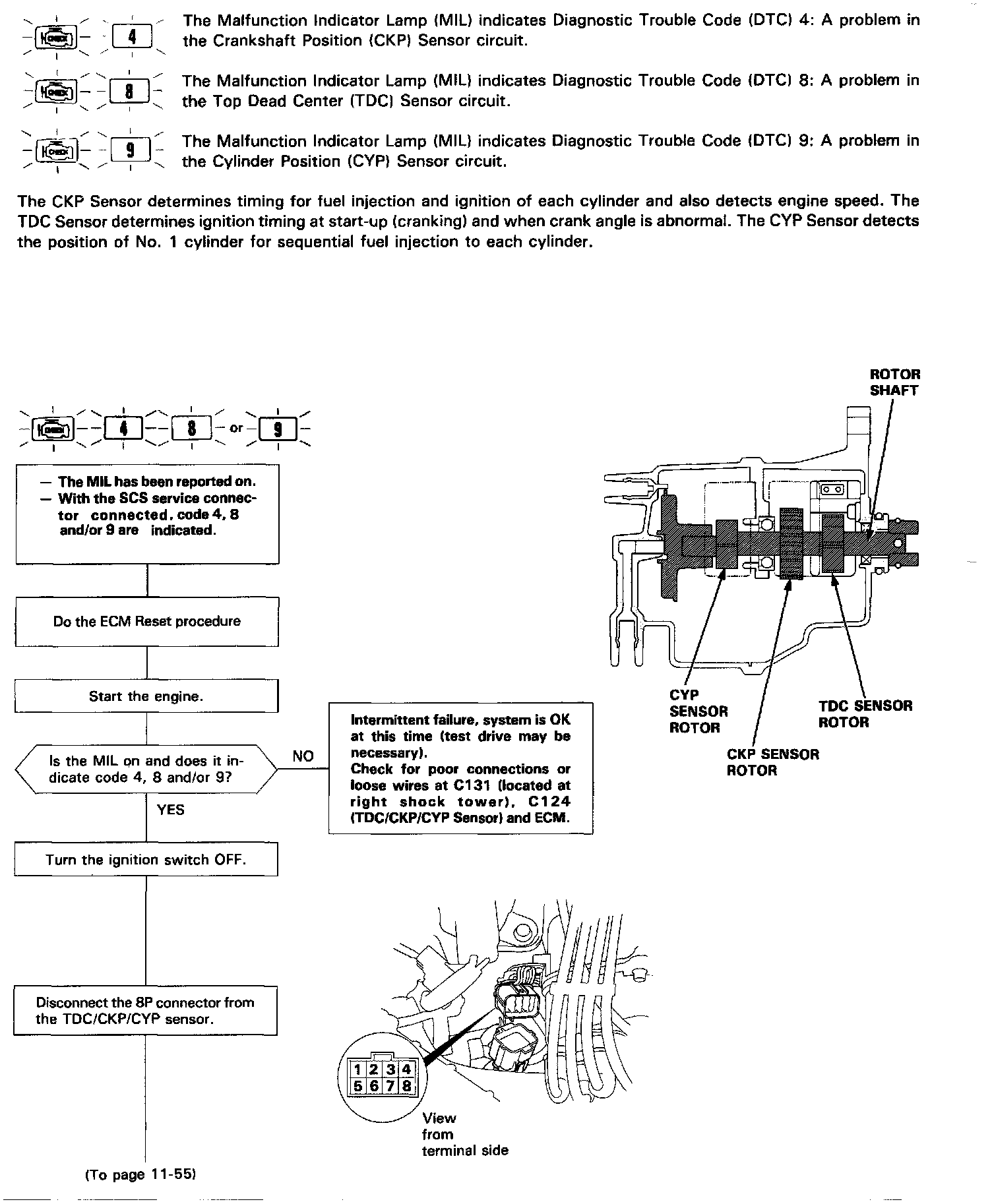

DTC 4, 8, 9: Crank/Top Dead Center/Cylinder Position Sensors, Part 1 Of 2:

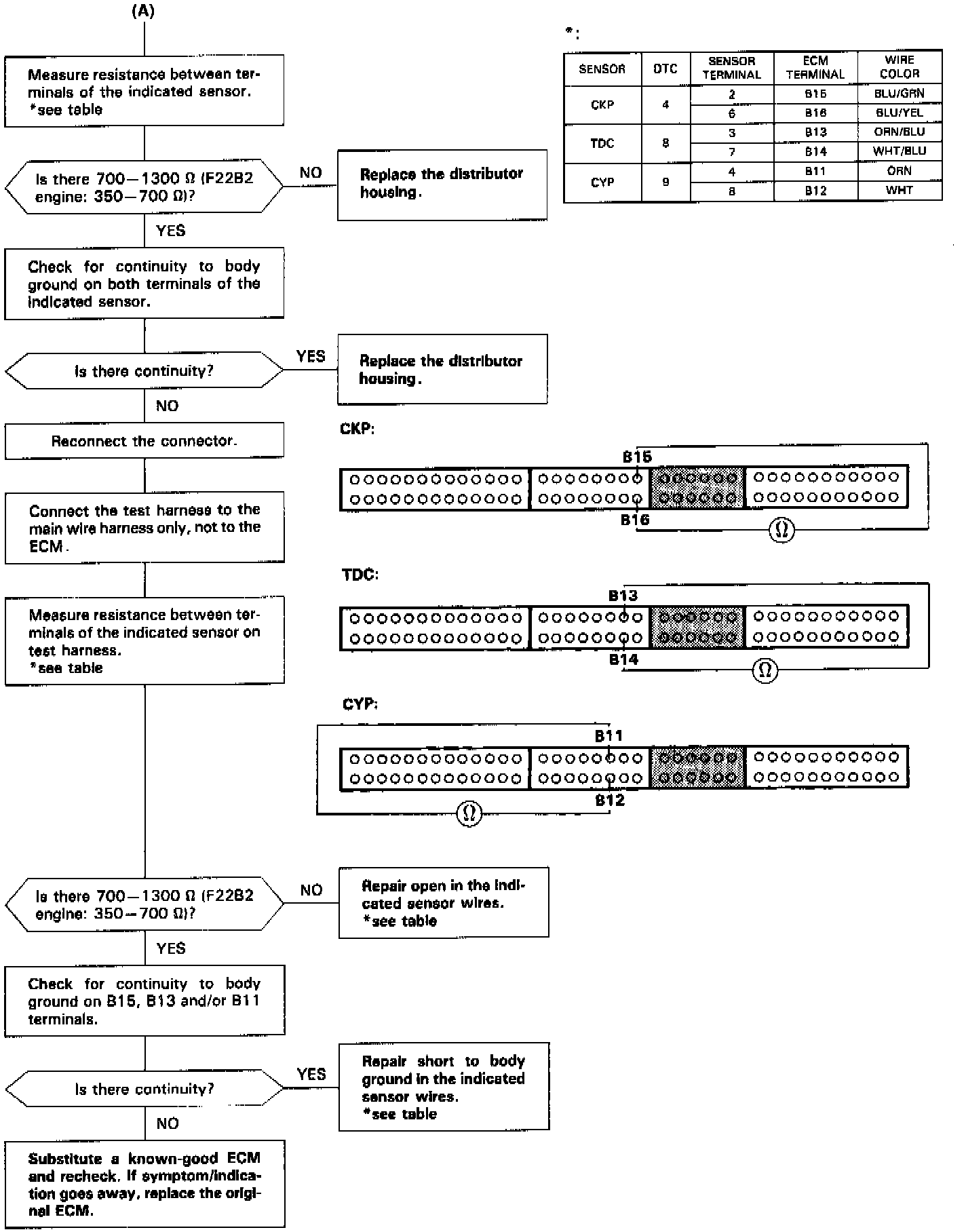

DTC 4, 8, 9: Crank/Top Dead Center/Cylinder Position Sensors, Part 2 Of 2:

The Check Engine warning light may come on, indicating a system problem, when, in fact, there is a poor or intermittent electrical connection. First, check the electrical connections, clean or repair connections if necessary.
