Home
>>
Honda
>>
1994
>>
Accord L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>
Connector Locations
>>
Engine Compartment
Engine Compartment

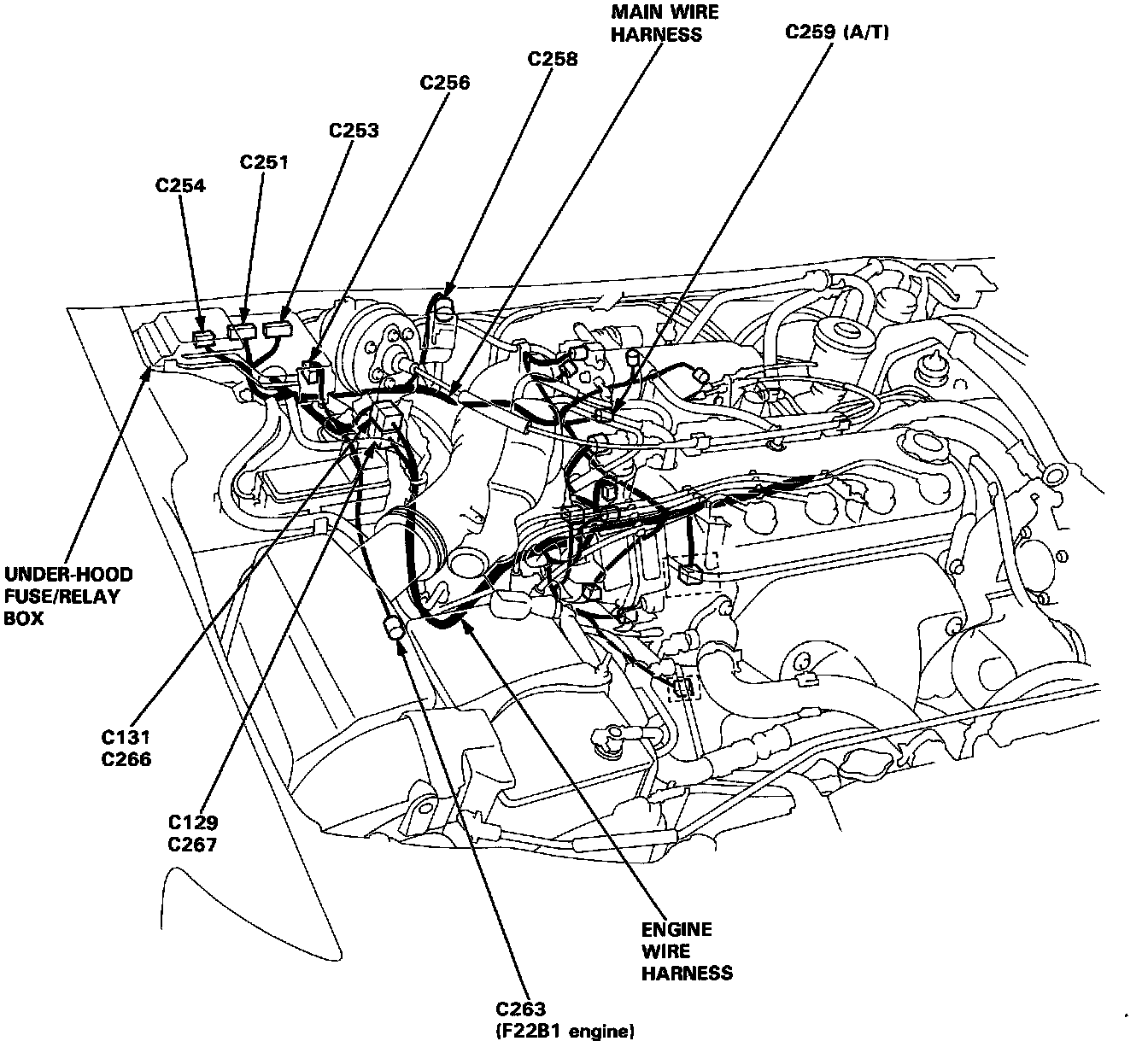

Engine Compartment Connectors:

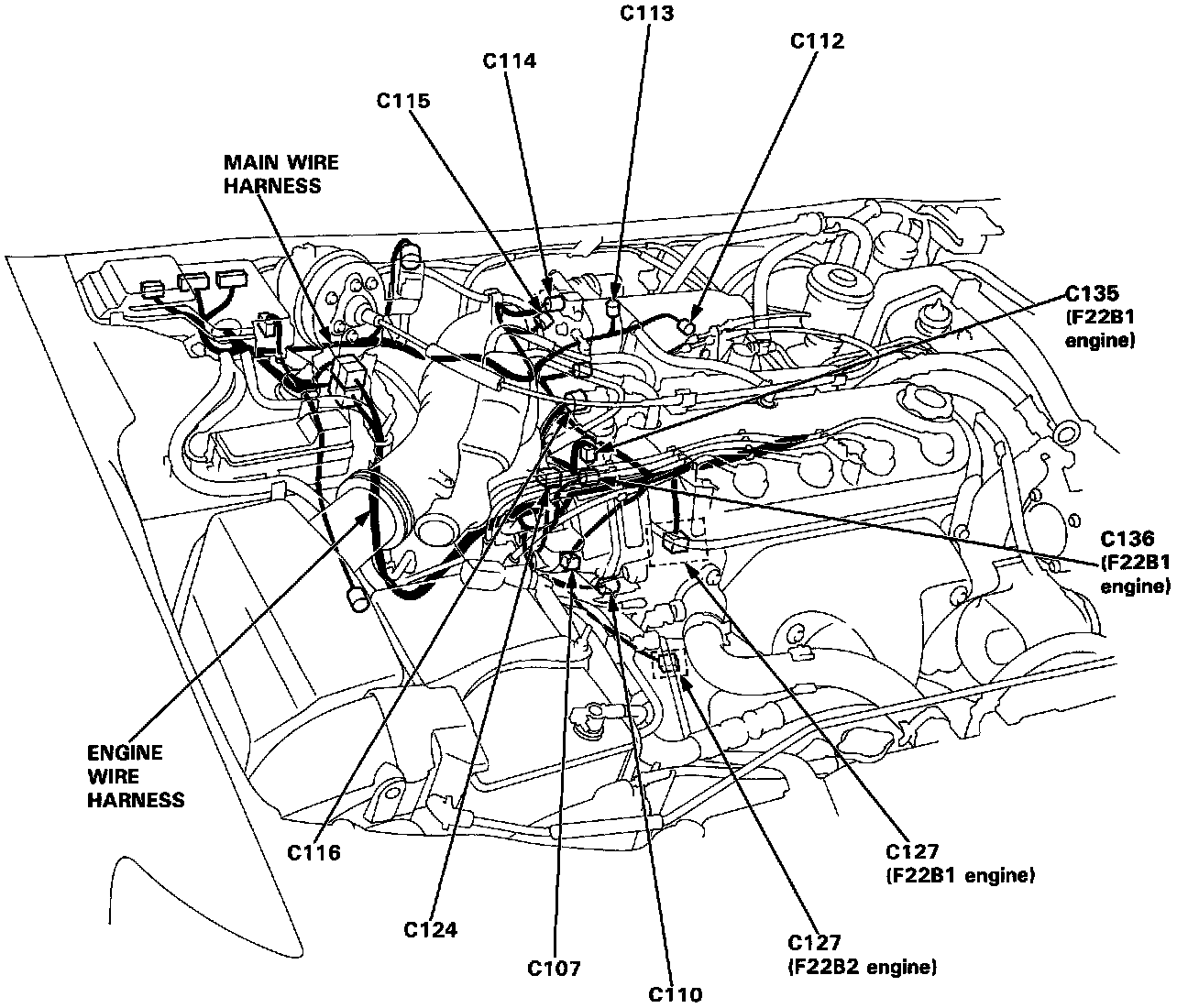

Engine Compartment Connectors:

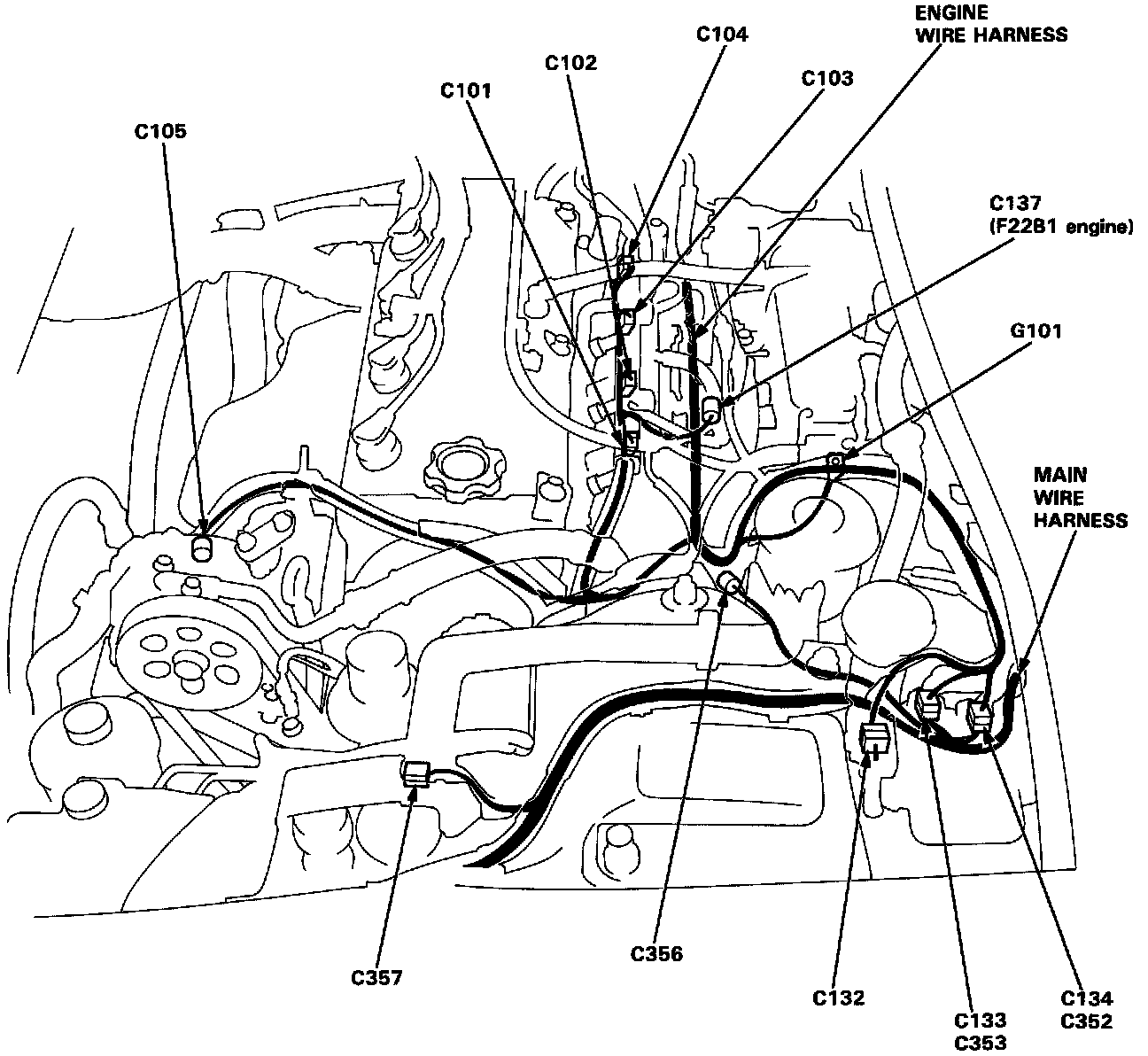

Engine Compartment Connectors:
