EGR Valve Position Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

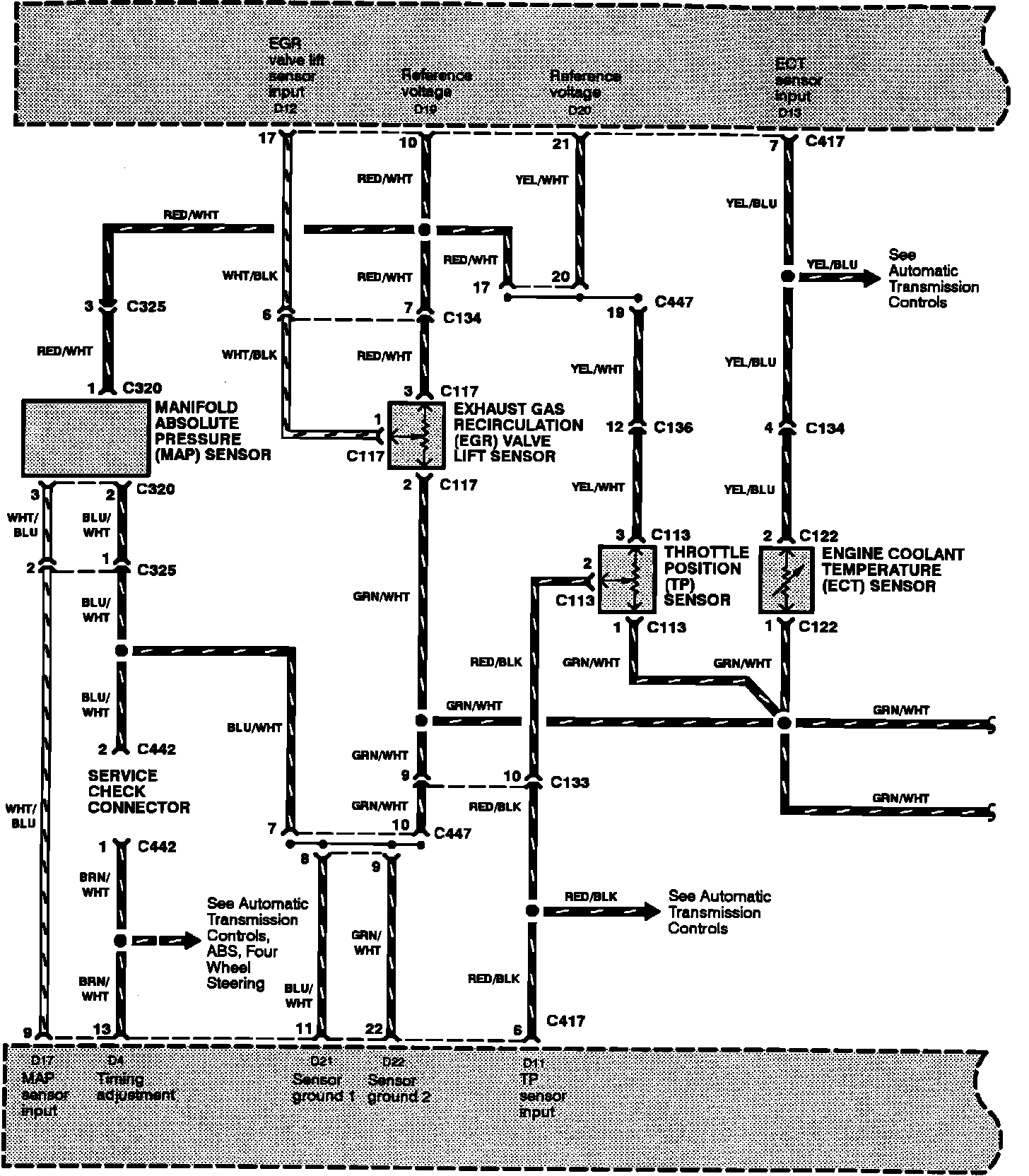

Programmed Fuel Injection System:
