Power and Ground Distribution
>>
Fuse
>>

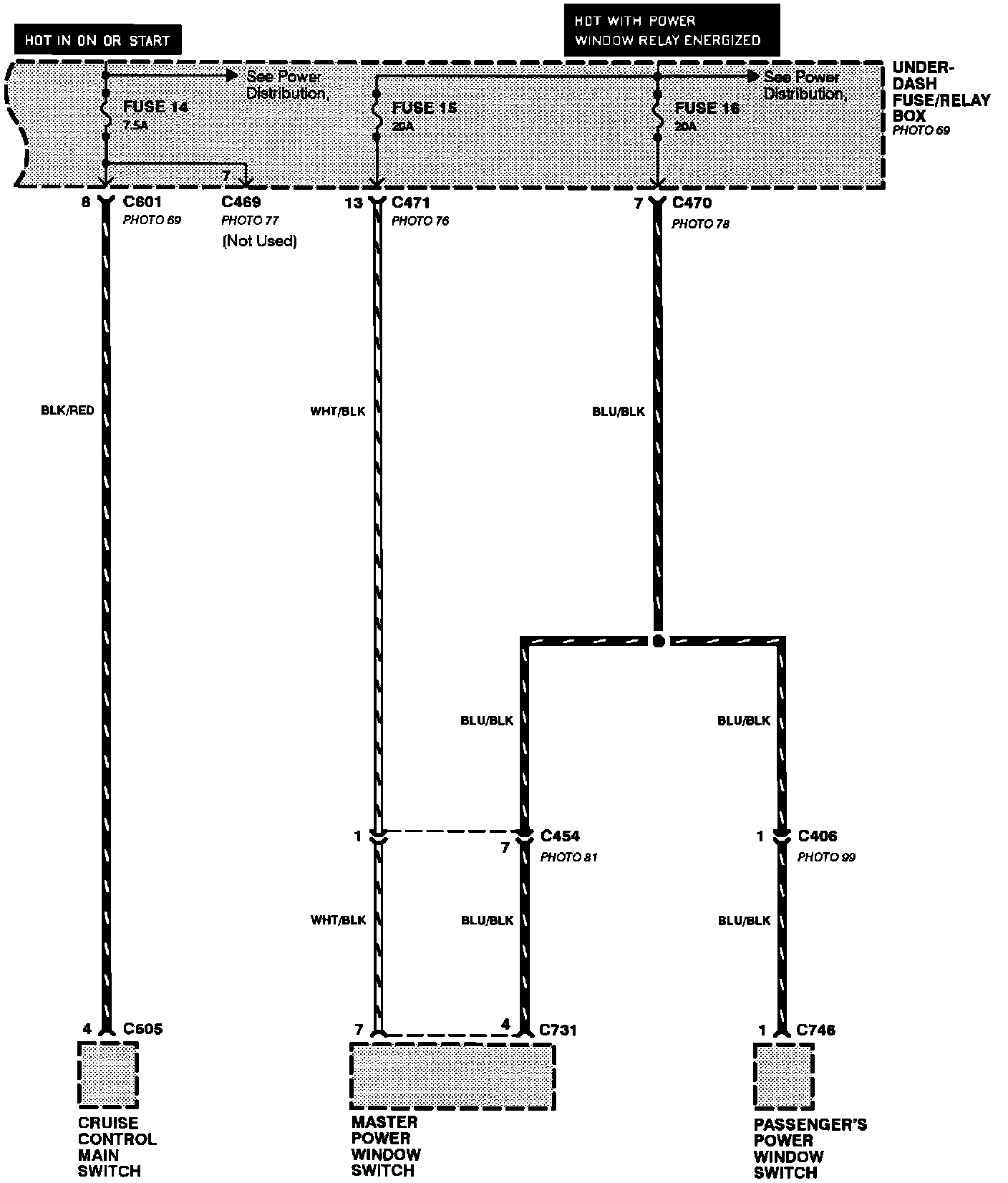

Fuse 13, 14, 15 and 16
Fuse 13, 14, 15 and 16
Power Distribution: Fuses And Relays To Components:
Power Distribution: Fuses And Relays To Components:
