Starter Solenoid: Testing and Inspection

Starter Solenoid Test:

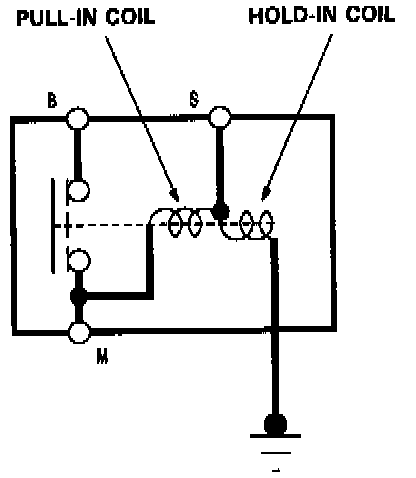

Starter Solenoid Diagram:

1. Remove the starter solenoid.

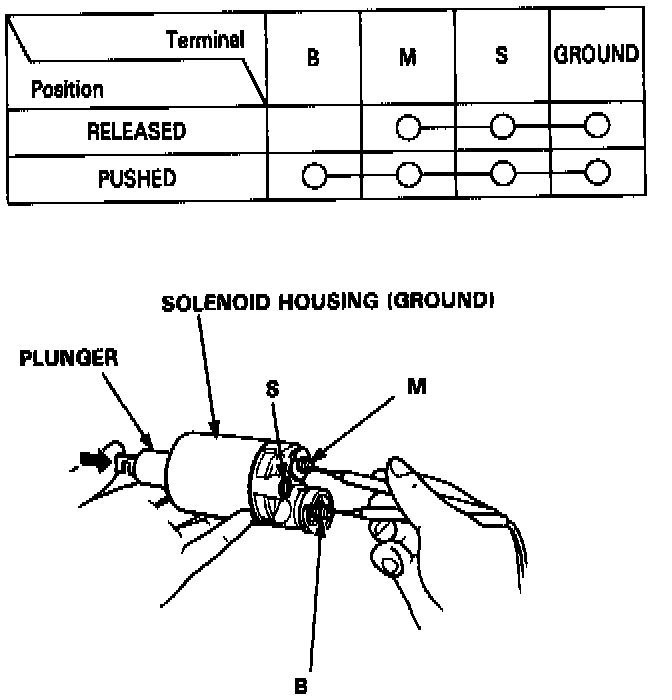

2. Check for continuity between the terminals in each solenoid plunger position according to the table.
