Home >> Honda >> 1993 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 41 and 42

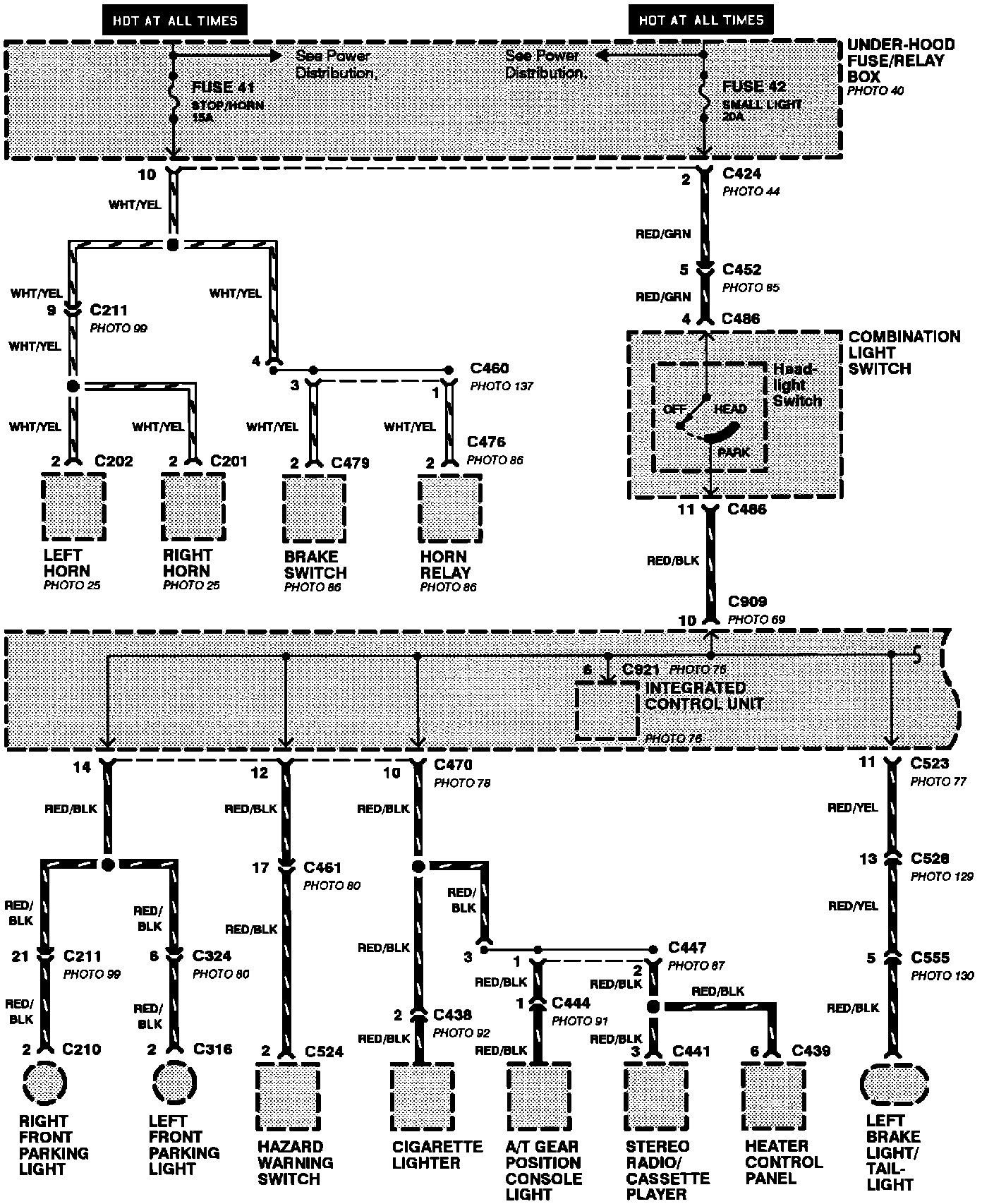

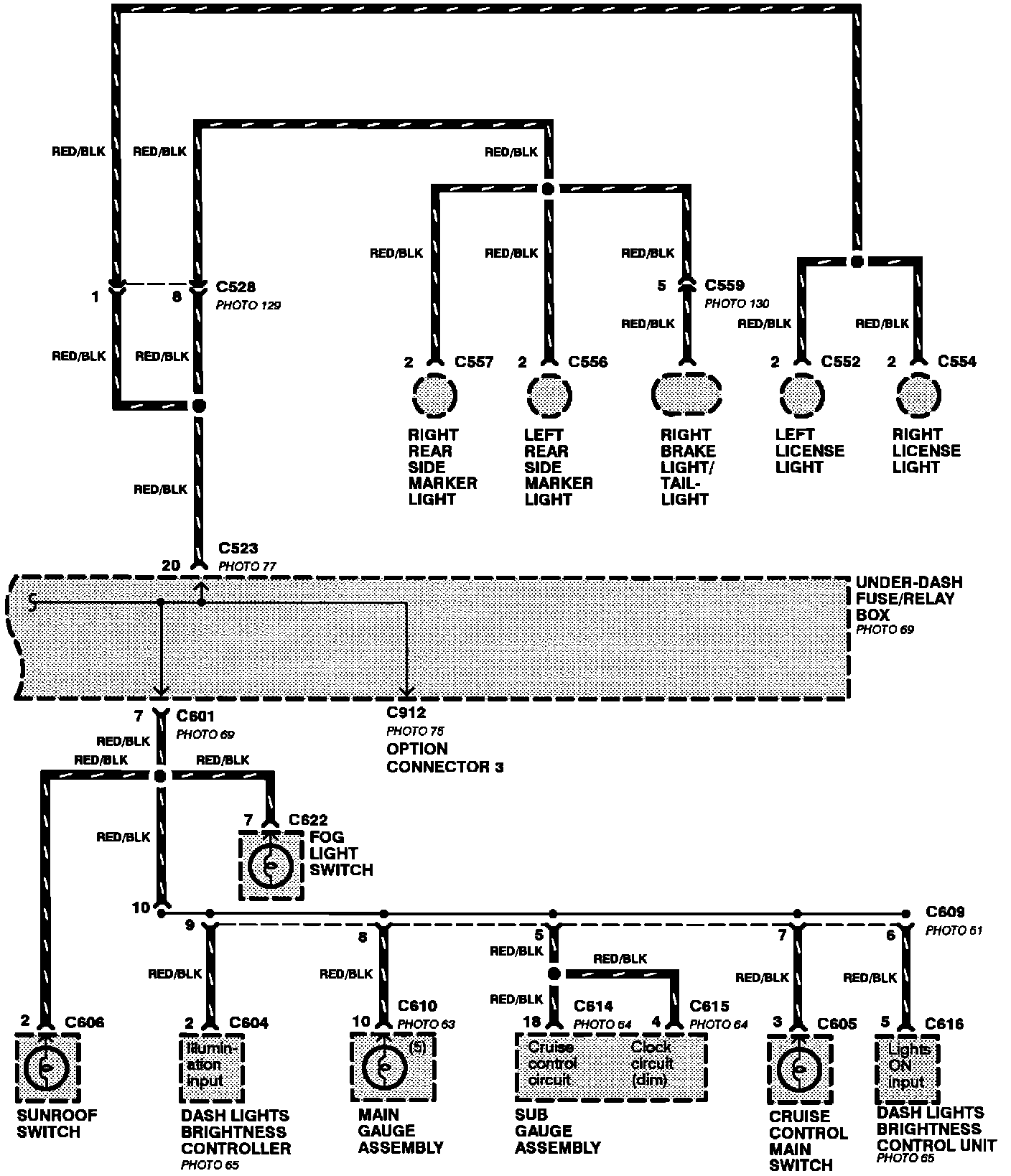

Fuse 41 and 42

Power Distribution: Fuses And Relays To Components:



Power Distribution: Fuses And Relays To Components:
