Home
>>
Honda
>>
1993
>>
Prelude L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Left Side Dash
Left Side Dash

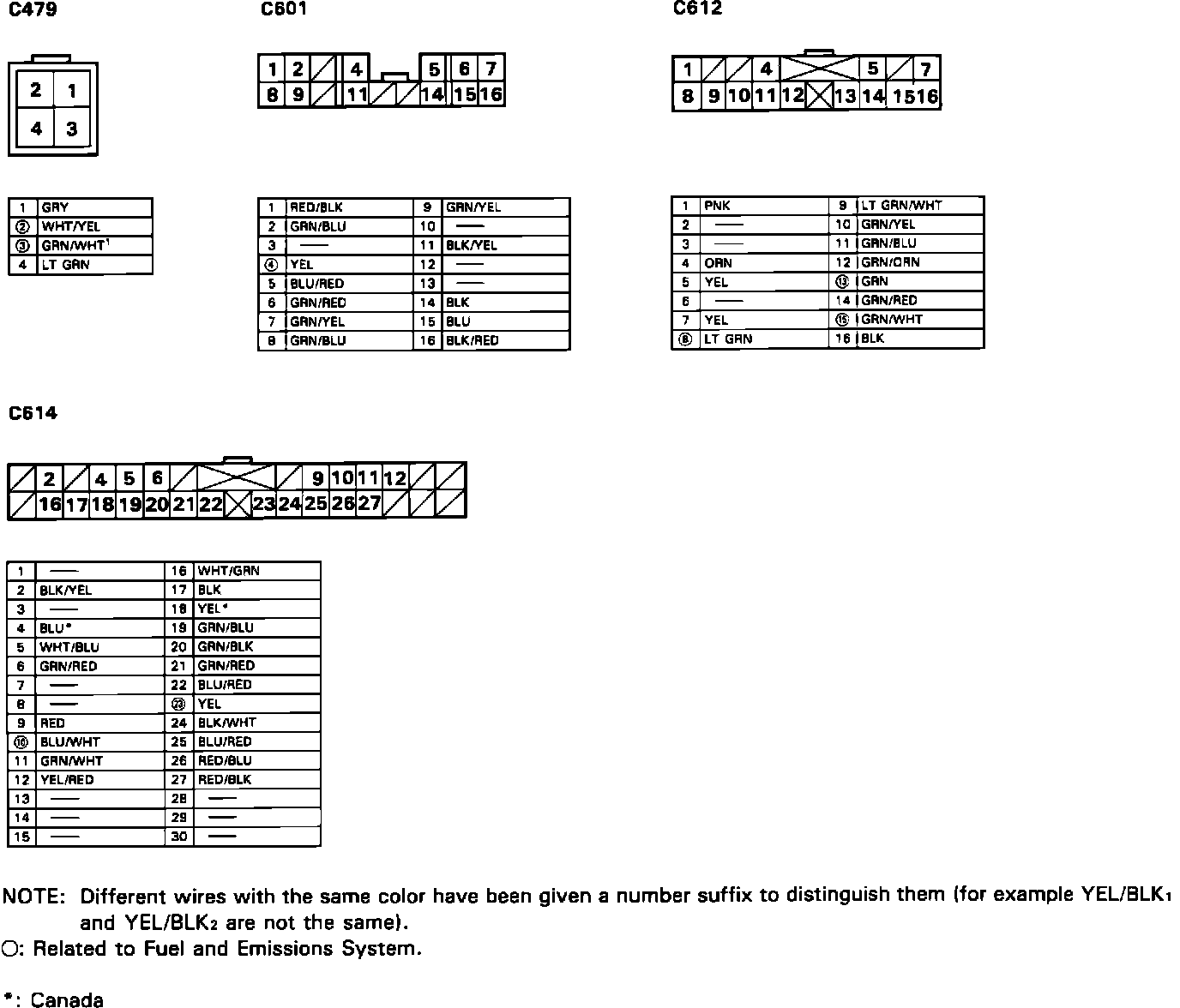

Electrical Connector Identification And Wire Location:
Electrical Connector Identification And Wire Location:
