Home
>>
Honda
>>
1993
>>
Prelude L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Wiring Schematics
>>
W/2 Wheel Steering
W/2 Wheel Steering

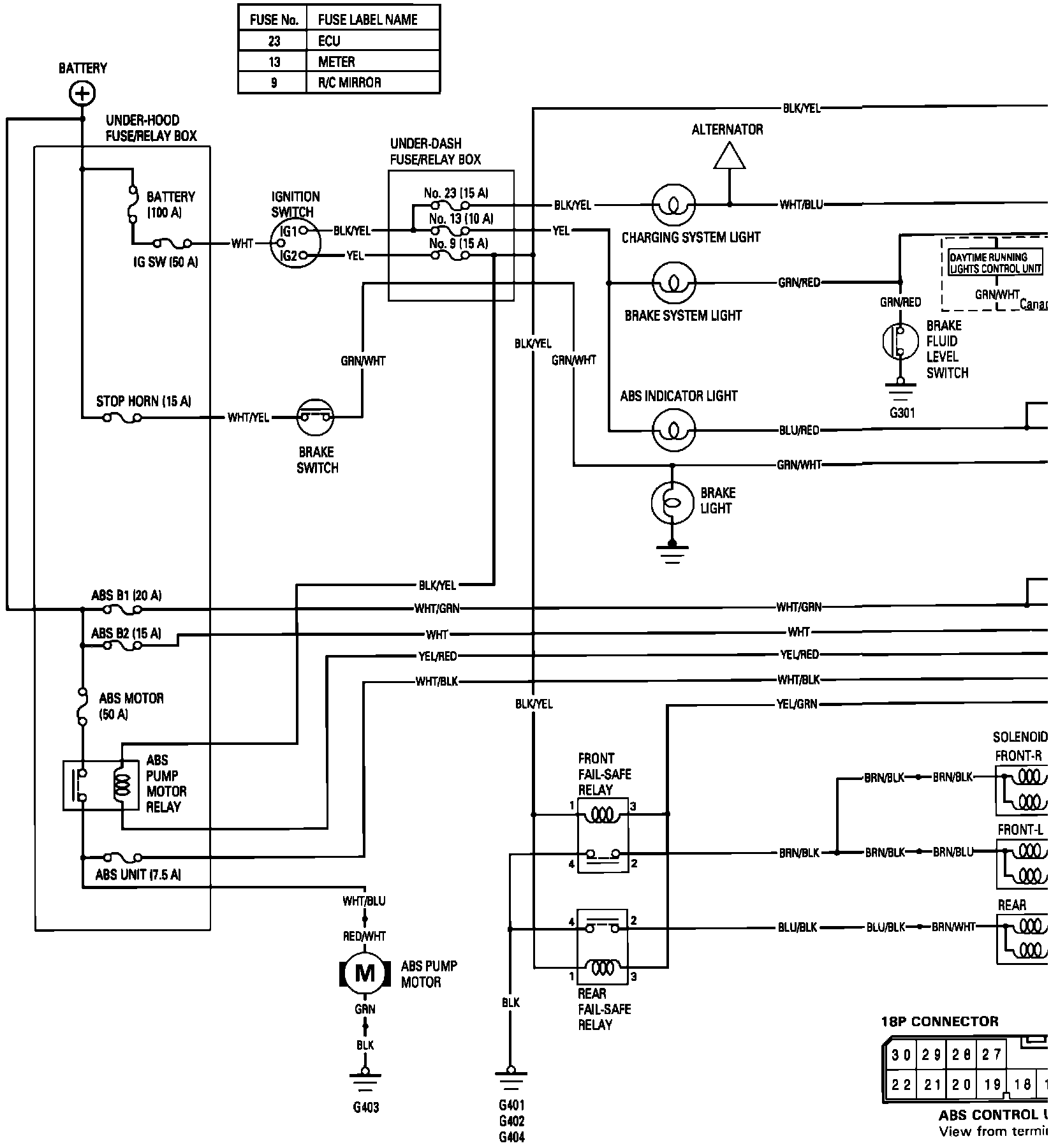

L�B;ABS Circuit Diagram (2 Wheel Steering):
