Civic L4-1590cc 1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

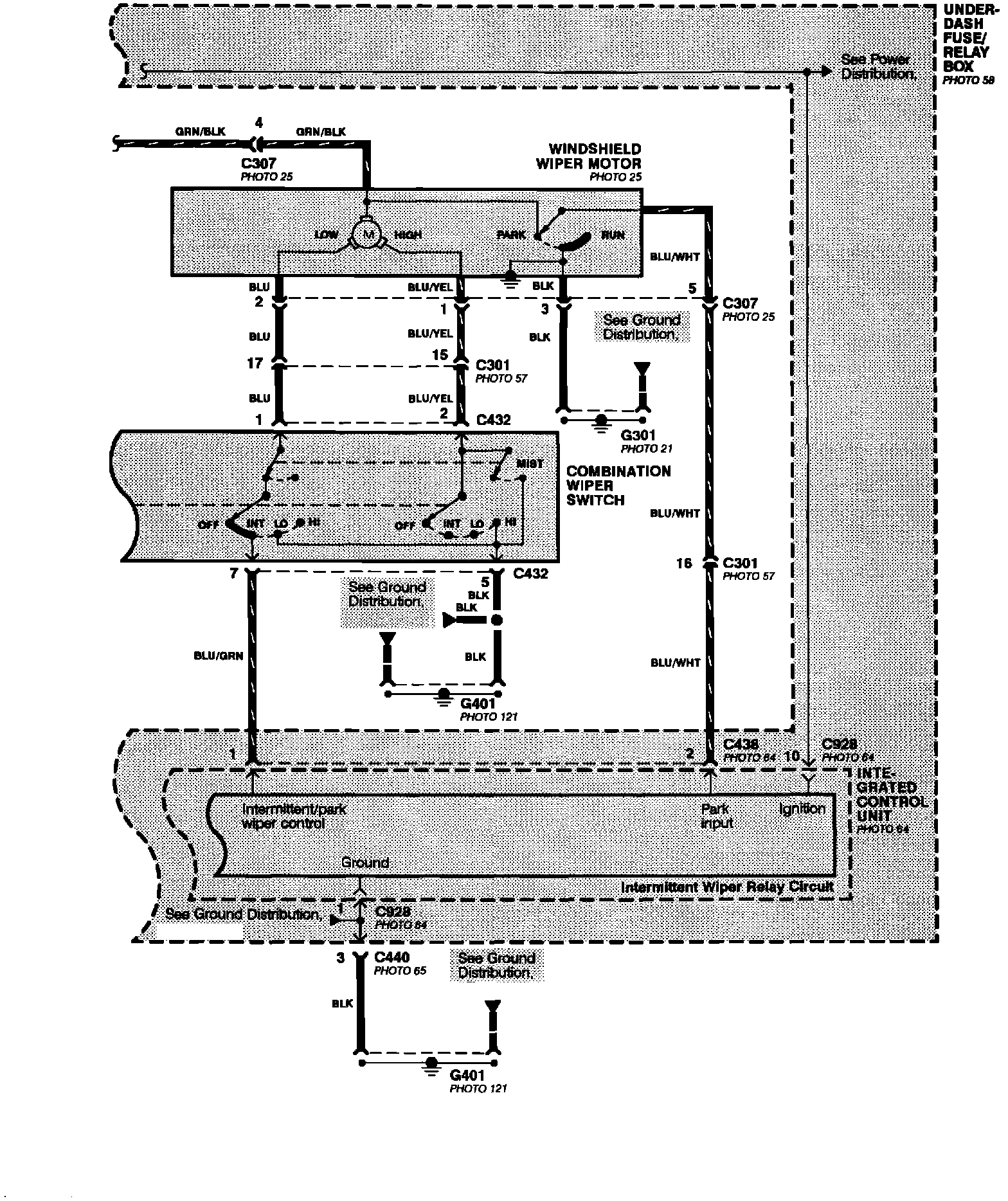

Front Wiper/Washer:

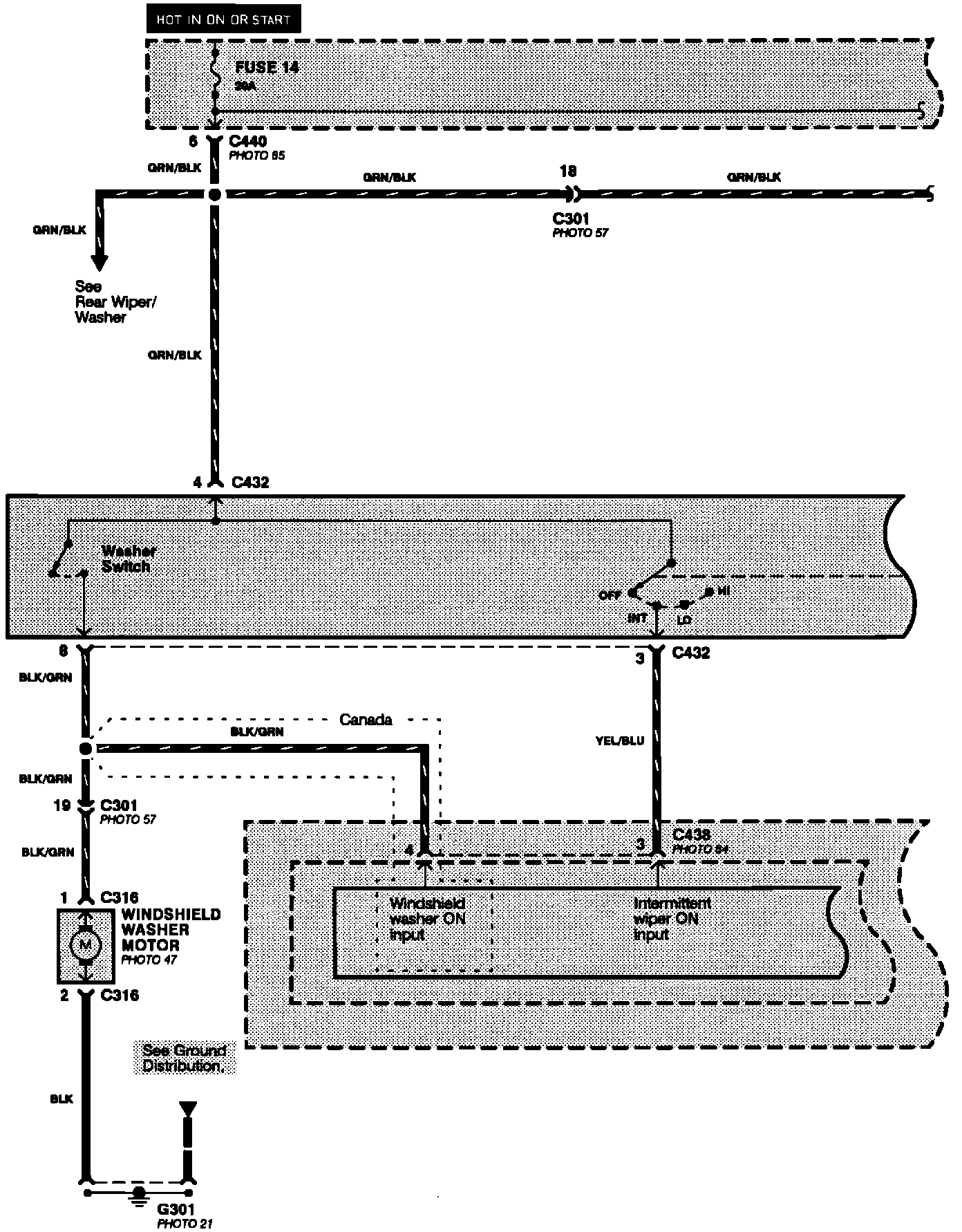

Front Wiper/Washer:

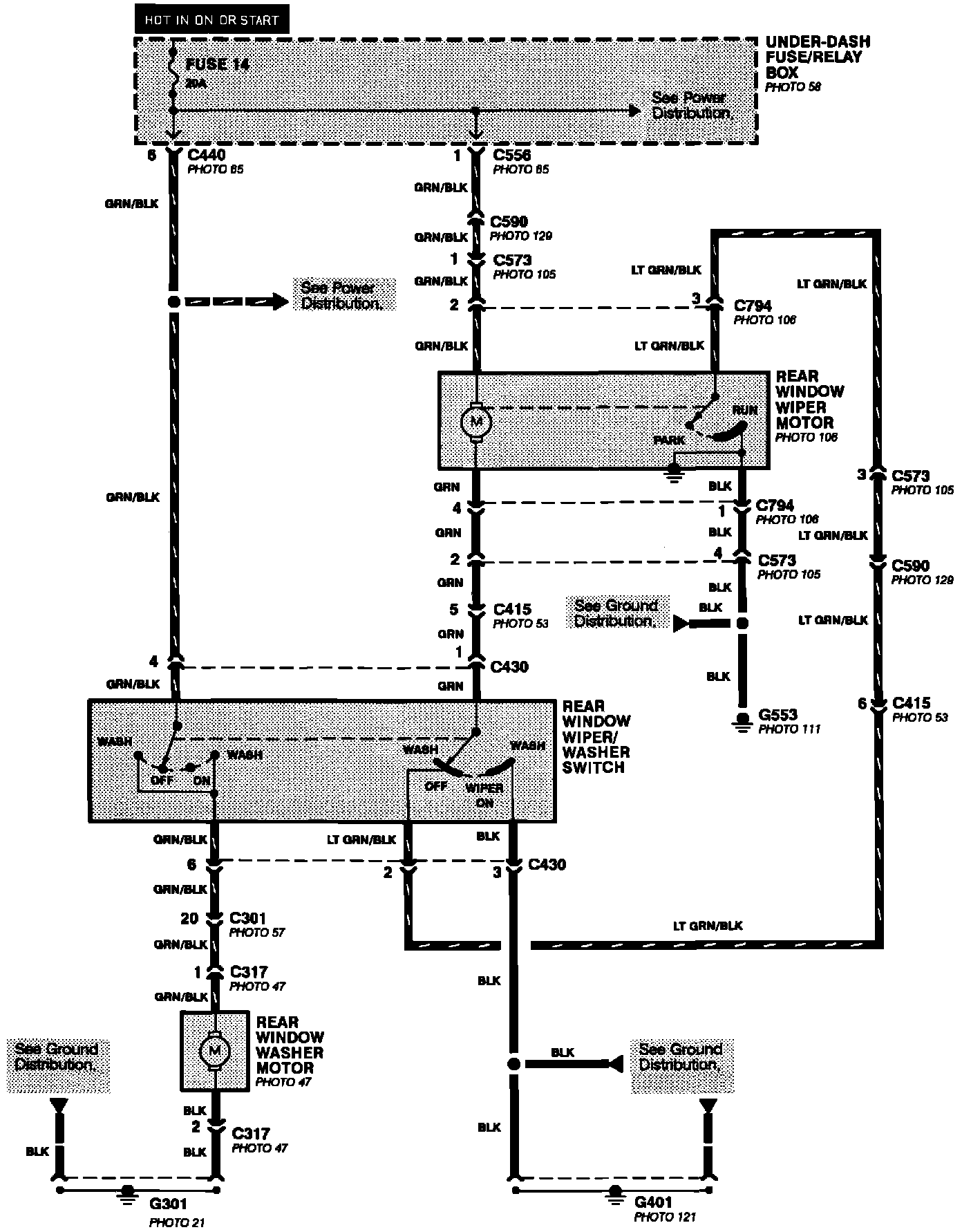

Rear Wiper/Washer:
