Nippondenso Starters

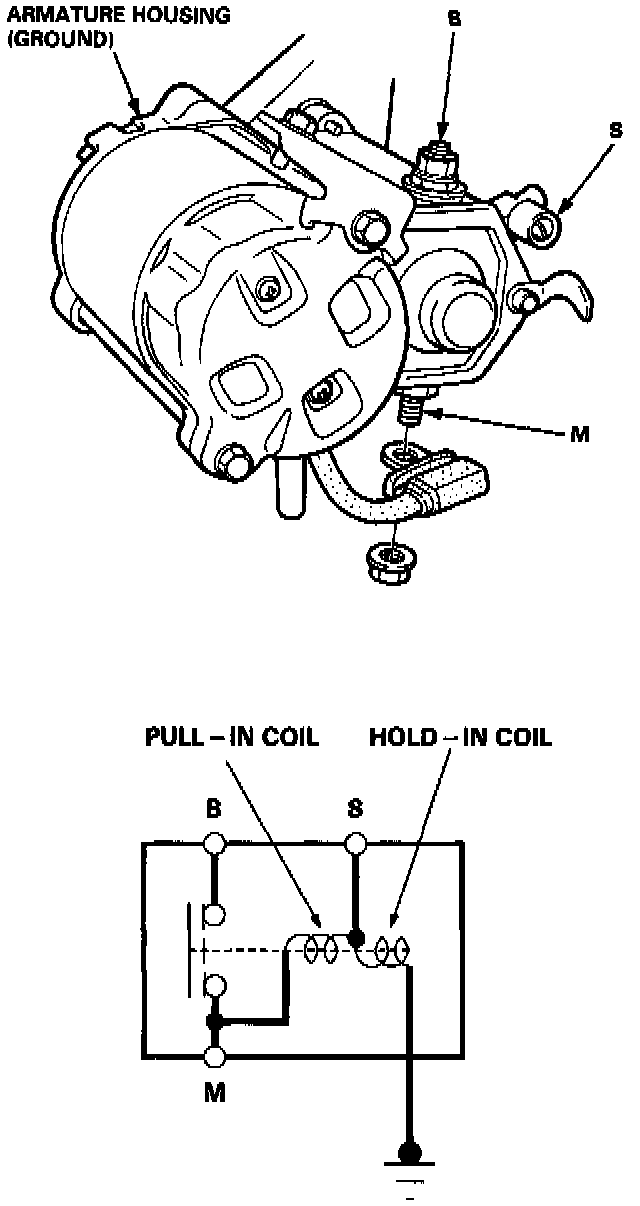

Starter Solenoid Testing (Nippondenso Type):

1. Check the hold-in coil for continuity between the S terminal and the armature housing (ground). Coil is OK if there is continuity.
2. Check the pull-in coil for continuity between the S and M terminals. Coil is OK if there is continuity.
