Exploded Views
>>
Mitsuba
>>
With Permanent Magnet
With Permanent Magnet

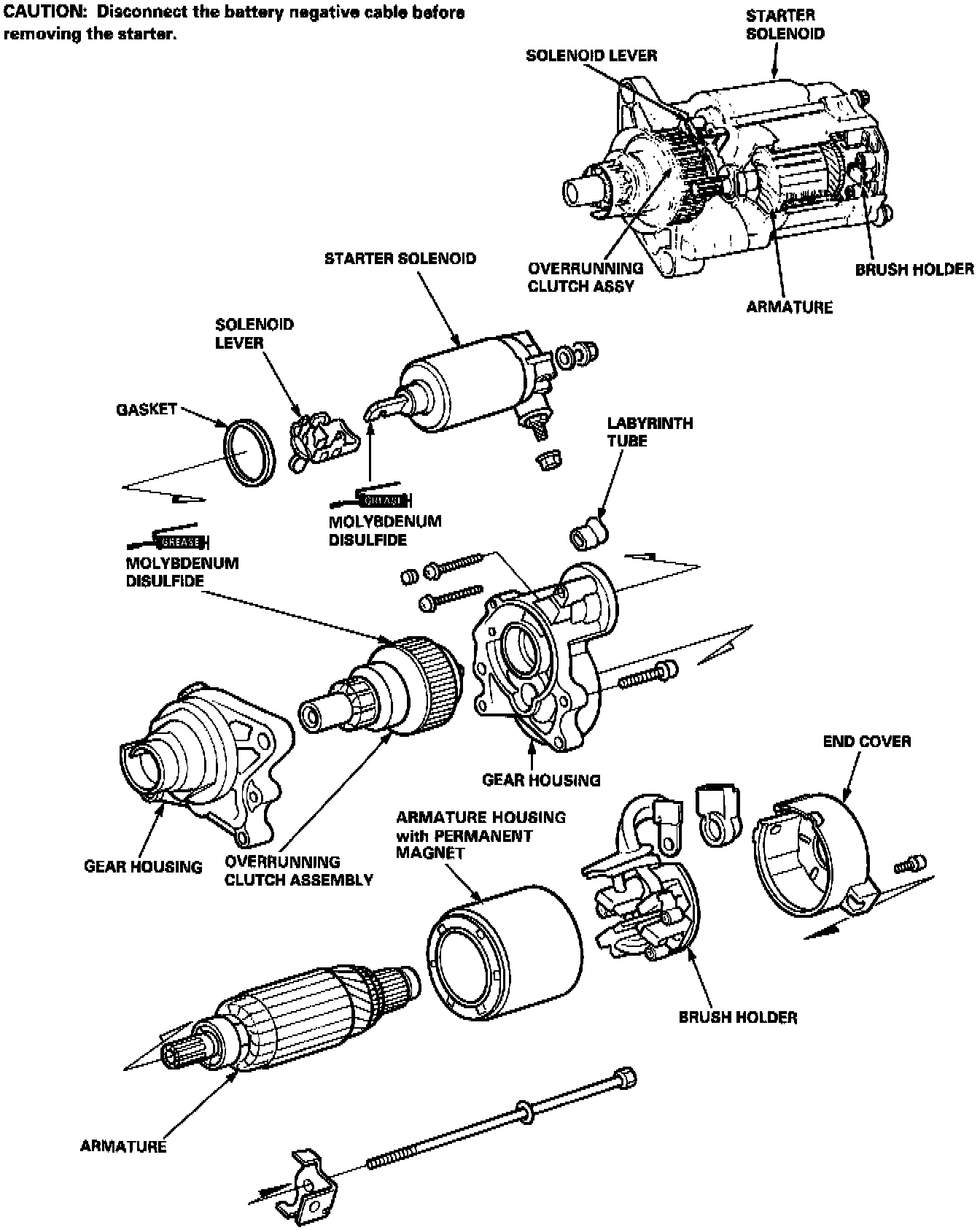

Starter Overhaul (Mitsuba Type - W/Permanent Magnet):
