Home
>>
Honda
>>
1993
>>
Civic L4-1590cc 1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Diagrams
>>
Exploded Views
>>
Mitsuba
>>
With Field Winding
With Field Winding

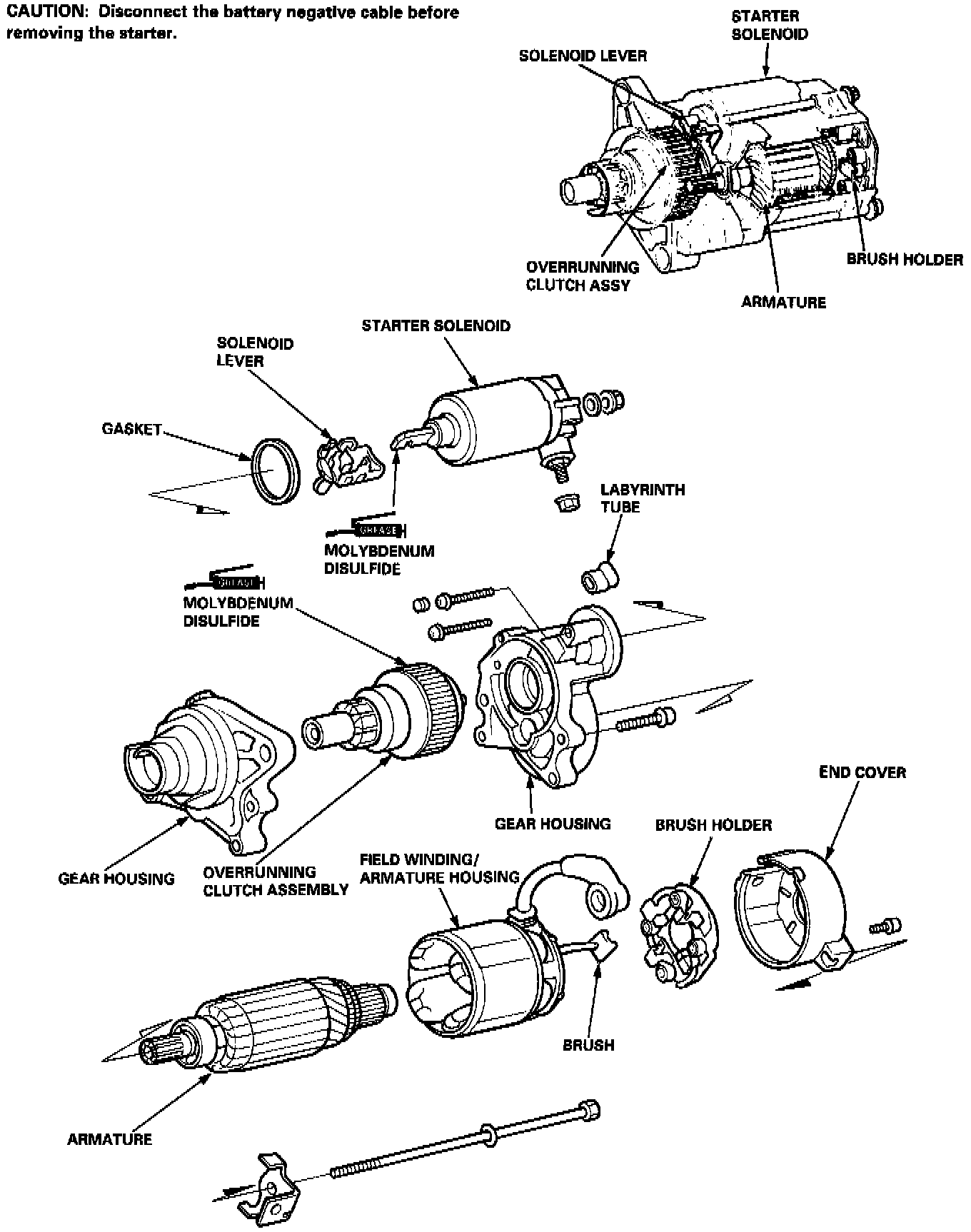

Starter Overhaul (Mitsuba Type- W/Field Winding):
