Locations
>>
Component Locations
Component Locations

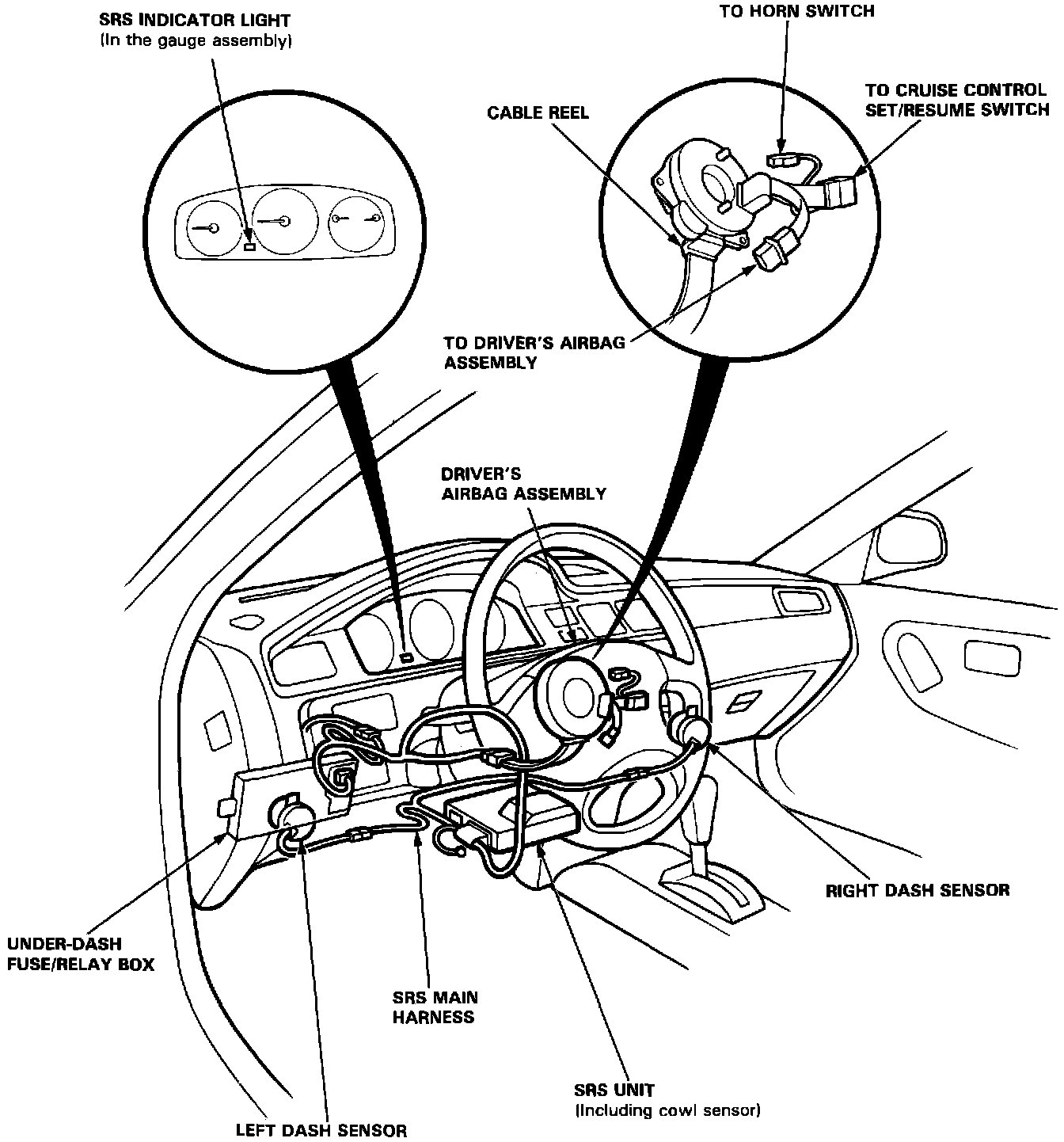

SRS Component Locations (Without Front Passenger Side Airbag):

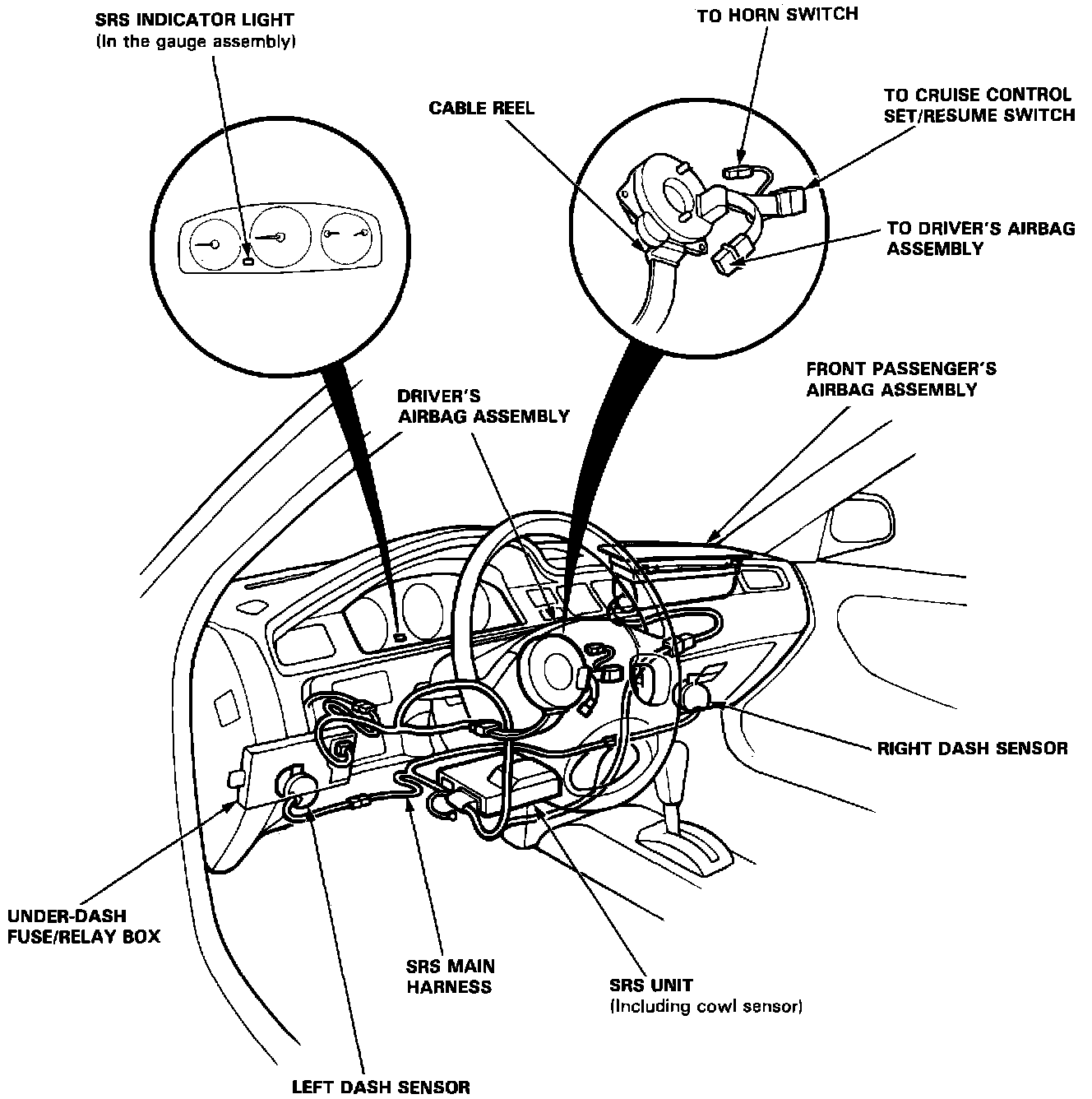

SRS Component Locations (With Front Passenger Side Airbag):
SRS Main Harness:
