Air Bag Safety Switch/Connector: Service and Repair
Short ConnectorINSTALLATION
WARNING: To avoid accidental deployment and possible injury, always install the protective short connector(s) on the driver's (and passenger's) airbag connector(s) before working near any SRS wiring.
1. Disconnect the battery negative cable, then disconnect the positive cable.
2. Install the short connector(s):
Installation Of Driver Side Short Connector:
Driver Side

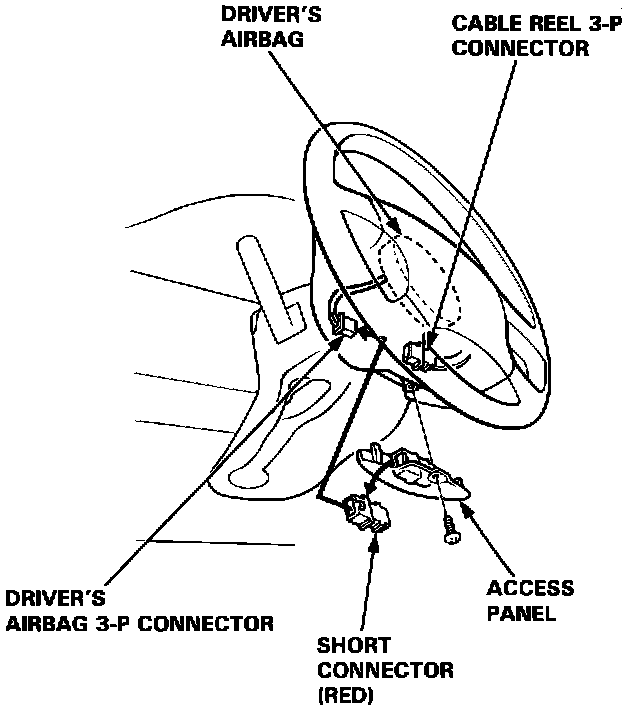

^ Remove the access panel from the steering wheel, then remove the short connector (RED) from the panel.
^ Disconnect the connector between the driver's airbag and cable reel, then install the short connector (RED) on the airbag side of the connector.
Installation Of Passenger Side Short Connector:
Front Passenger Side

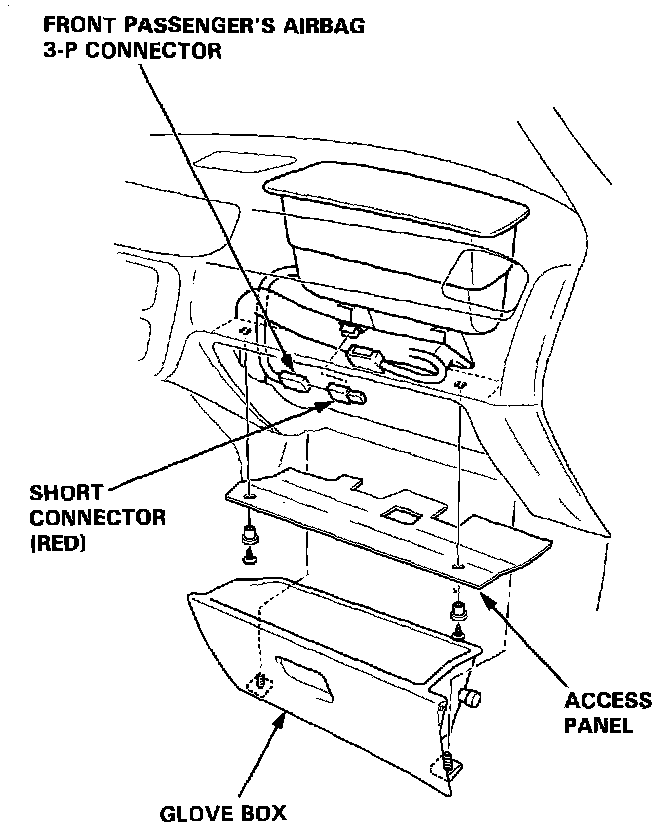

^ Remove the glove box and access panel, then remove the short connector (RED) from its holder.
^ Disconnect the connector between the front passenger's airbag and SRS main harness, install the short connector (RED) on the airbag side of the connector.
