Exc. VX Model

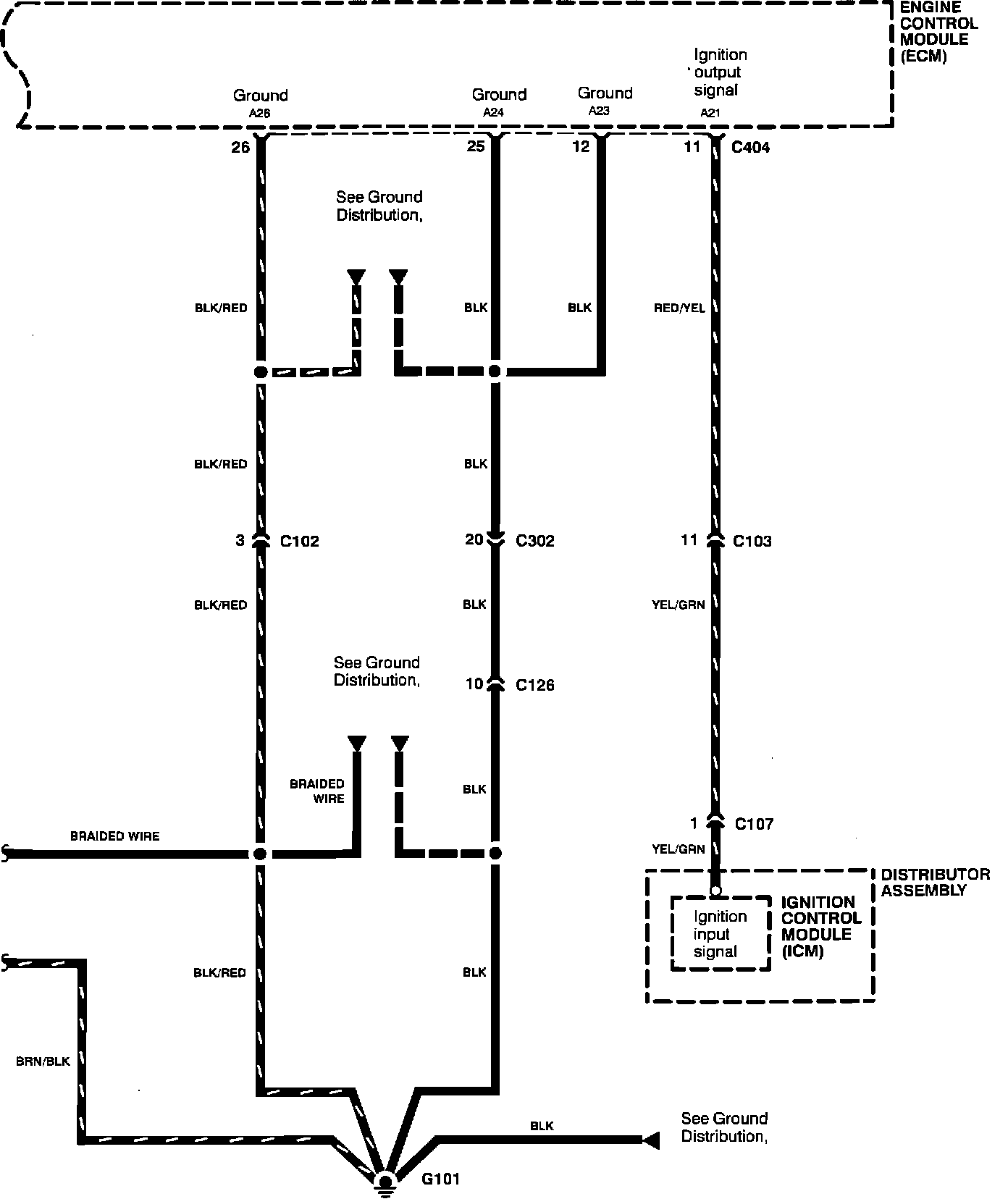

Programmed Fuel Injection System - All Except VX:



Programmed Fuel Injection System - All Except VX:
