Home >> Honda >> 1993 >> Civic L4-1590cc 1.6L SOHC (VTEC) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Under-Hood Fuse/Relay Box >> Fuse 43, 21, 22

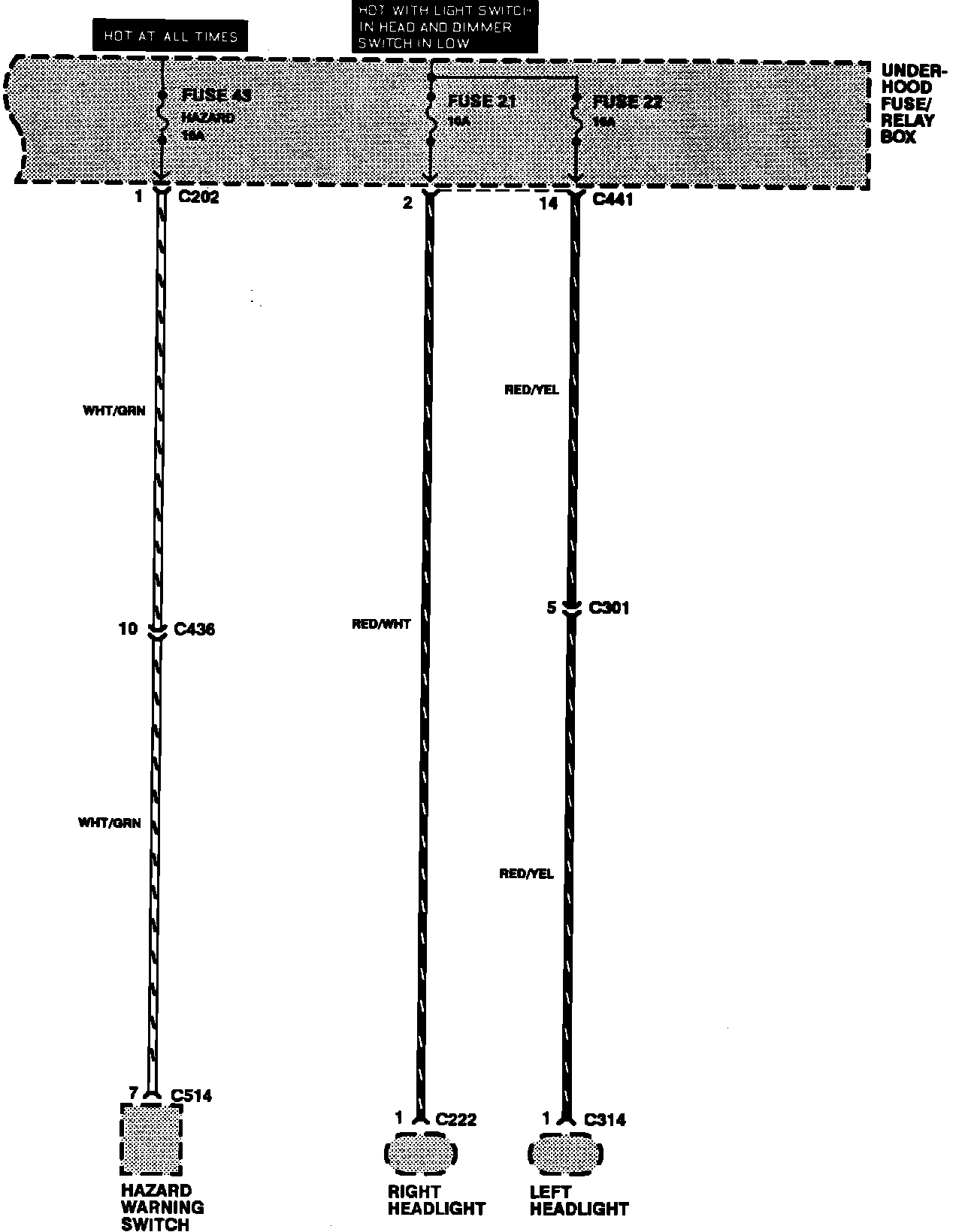

Fuse 43, 21, 22

Power Distribution:
