Civic L4-1590cc 1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Under-Dash Fuse/Relay Box
>>

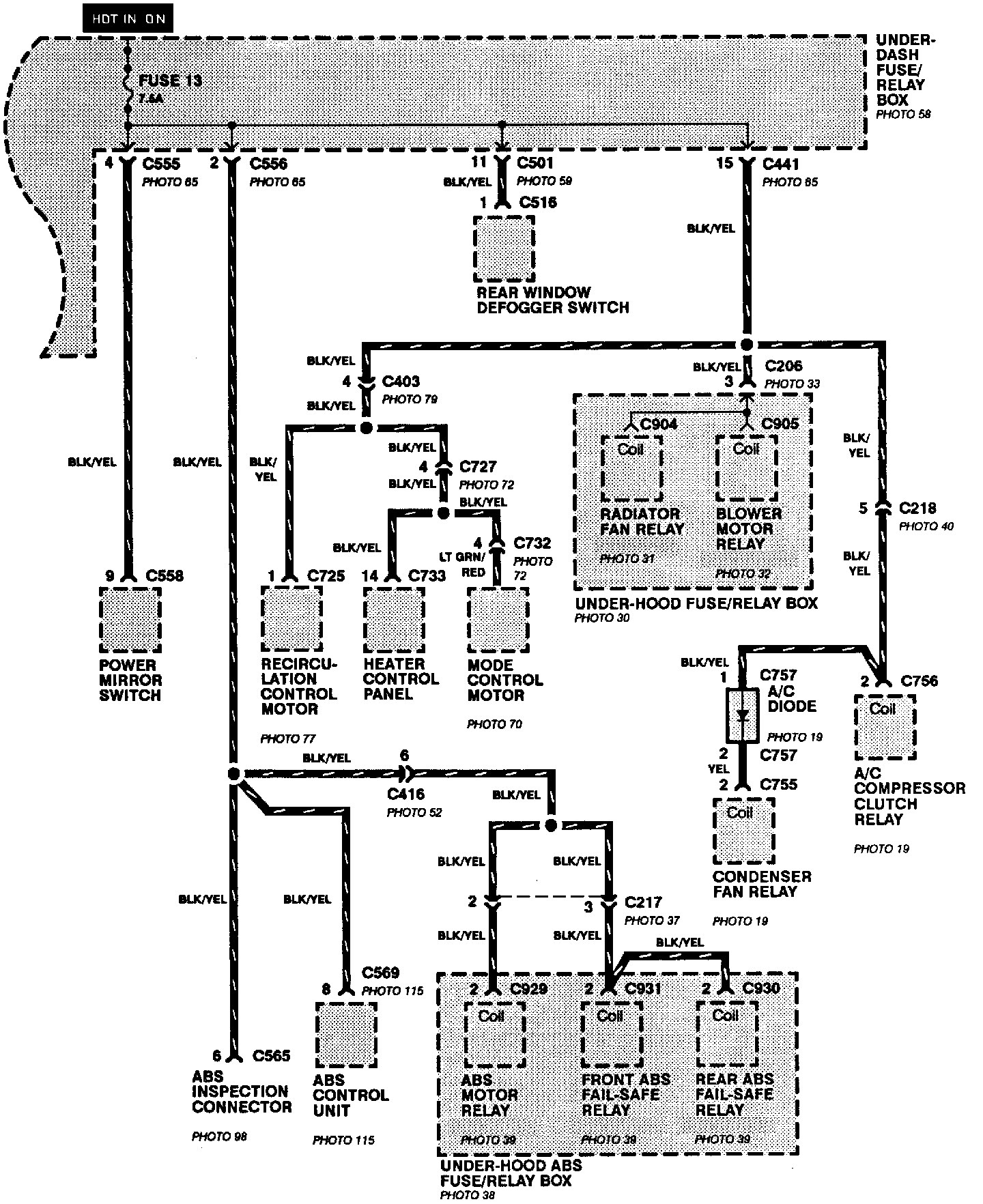

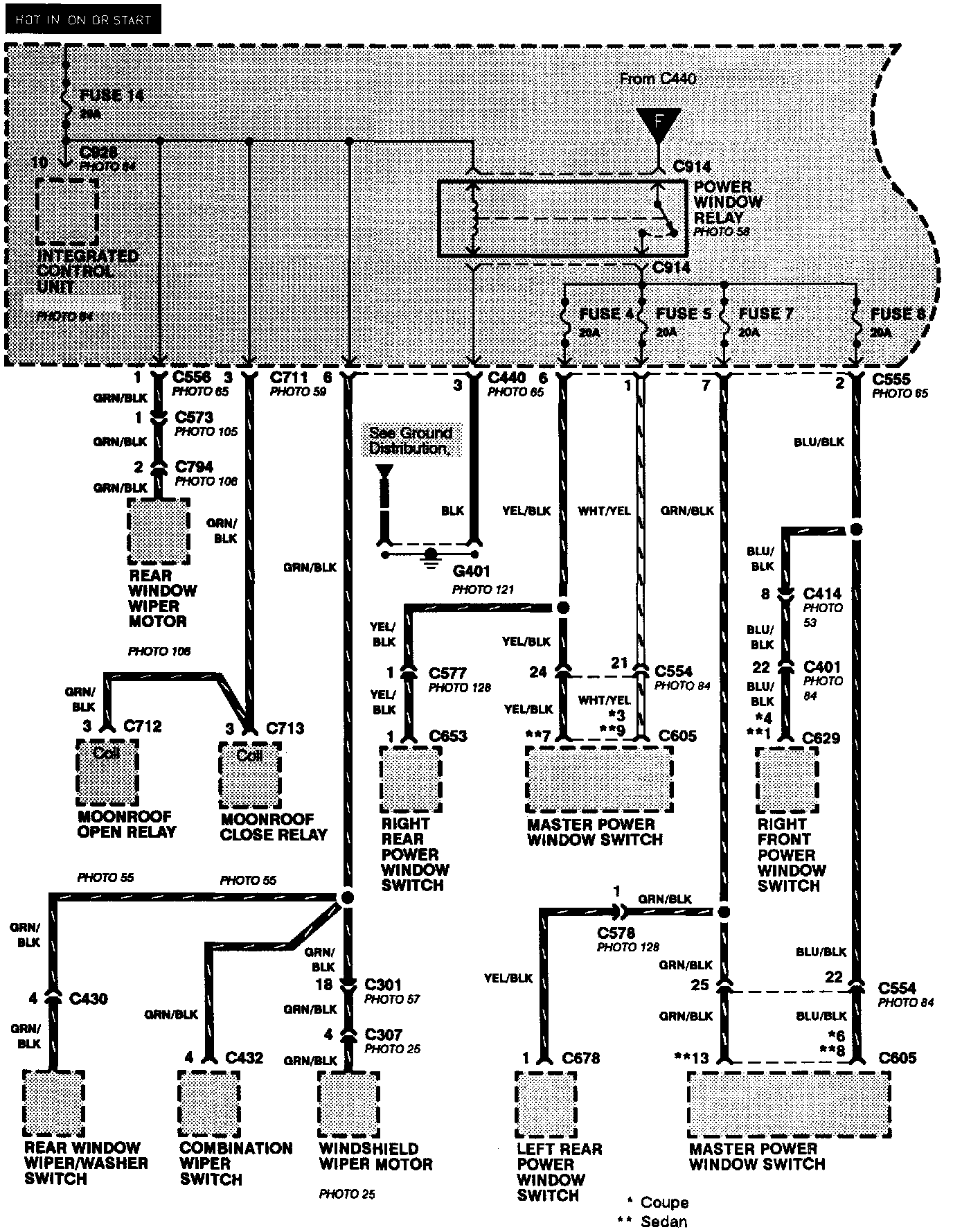

Fuse 4, 5, 7, 8, 13 and 14
Fuse 4, 5, 7, 8, 13 and 14
Power Distribution: Fuses And Relays To Components:
Power Distribution: Fuses And Relays To Components:
