Civic L4-1590cc 1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Under-Dash Fuse/Relay Box
>>

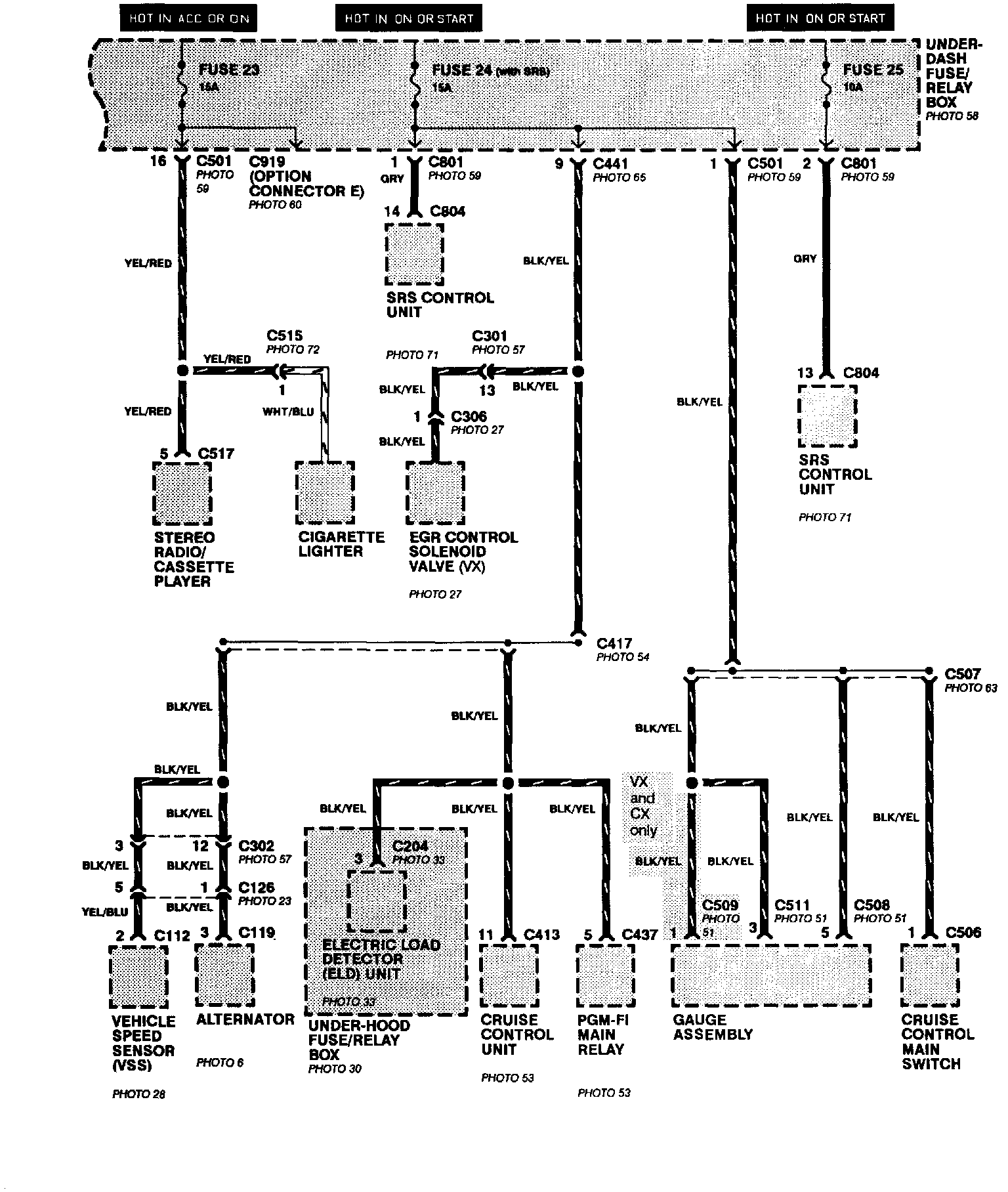

Fuse 23, 24 and 25
Fuse 23, 24 and 25

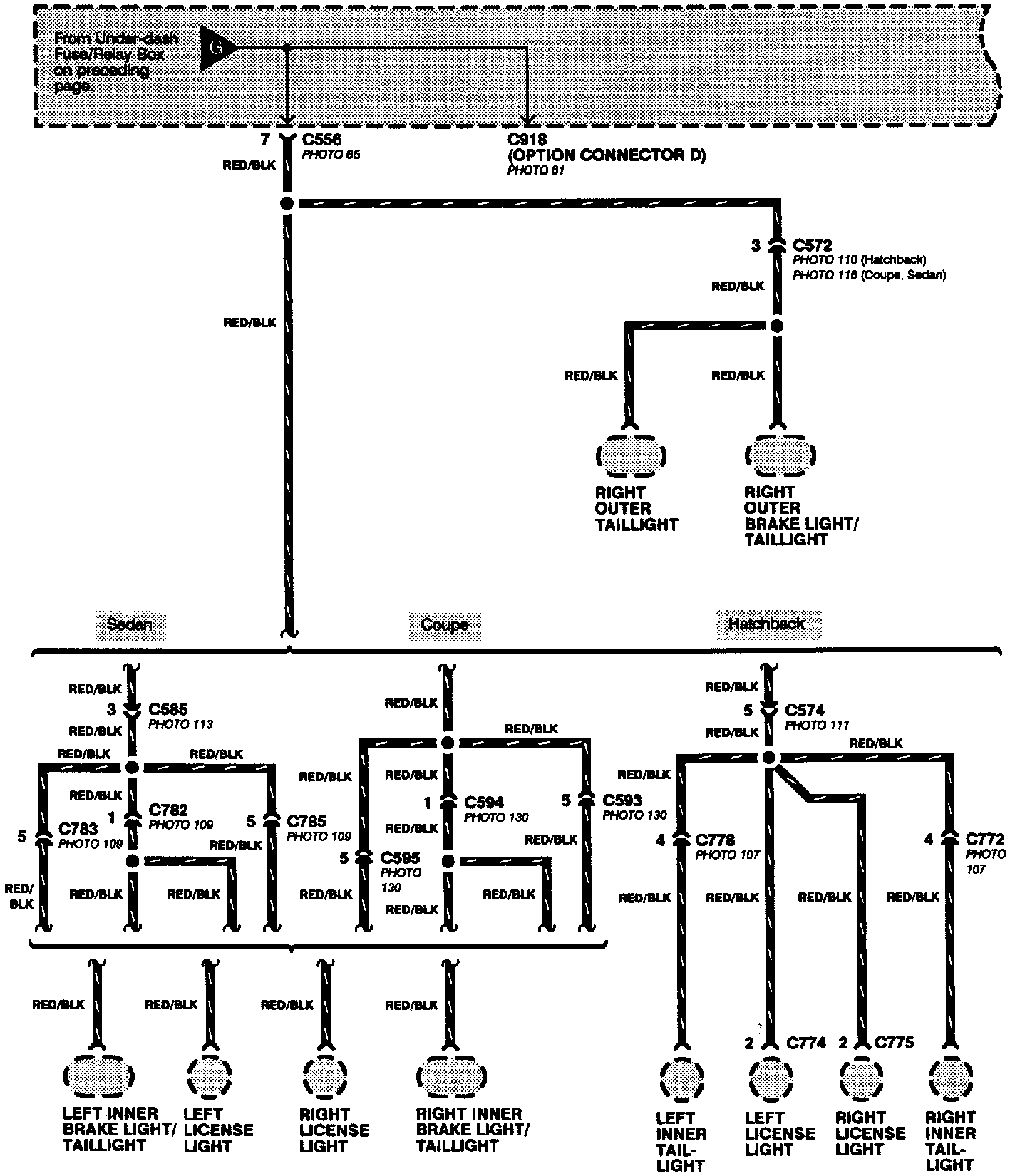

Power Distribution: Fuses And Relays To Components:
Power Distribution: Fuses And Relays To Components:
