Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
1993
>>
Civic L4-1590cc 1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Conditioning System
Air Conditioning System

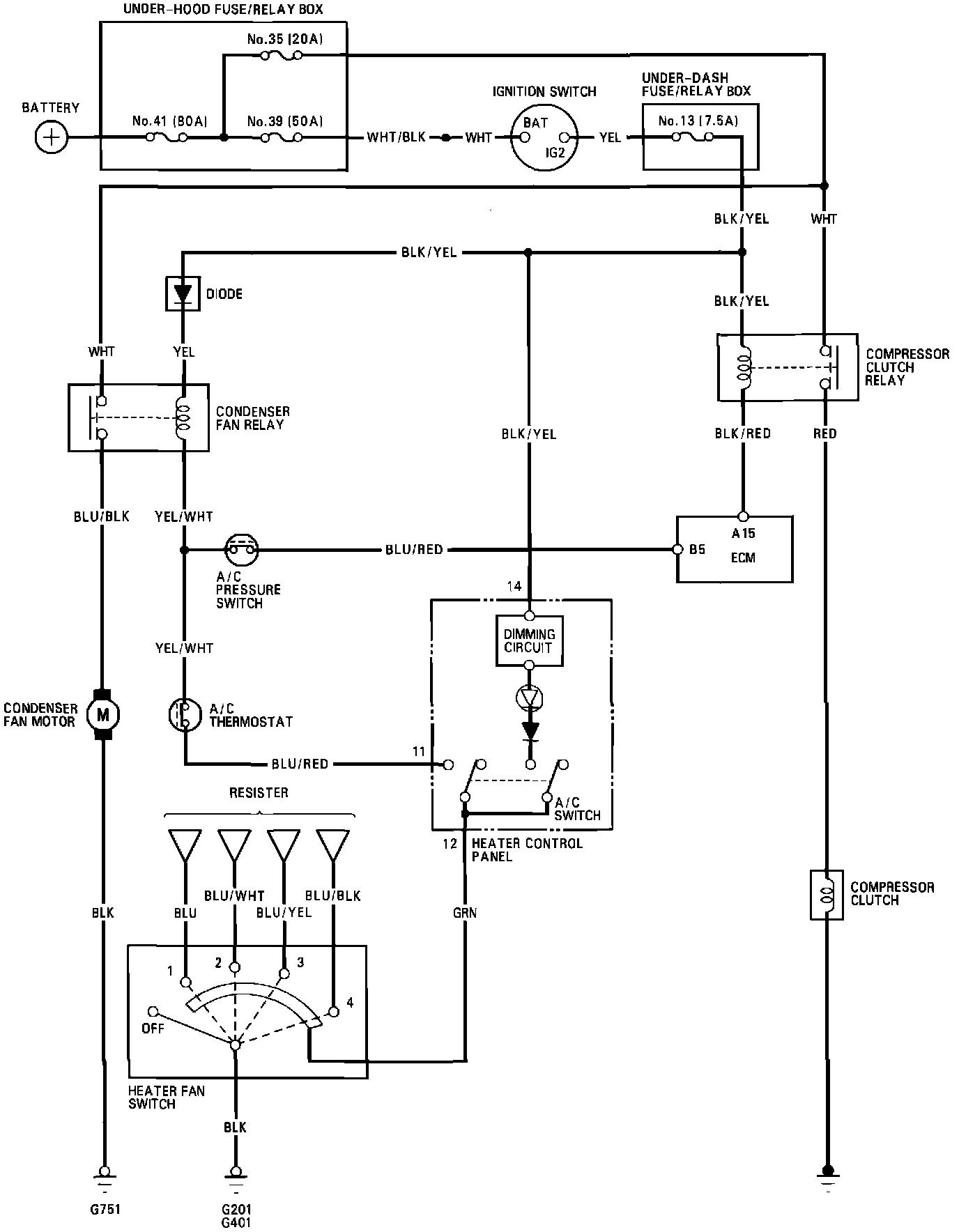

A/C Circuit:
