Main
>>
Right Side of Dash and Floor Branch
Right Side of Dash and Floor Branch

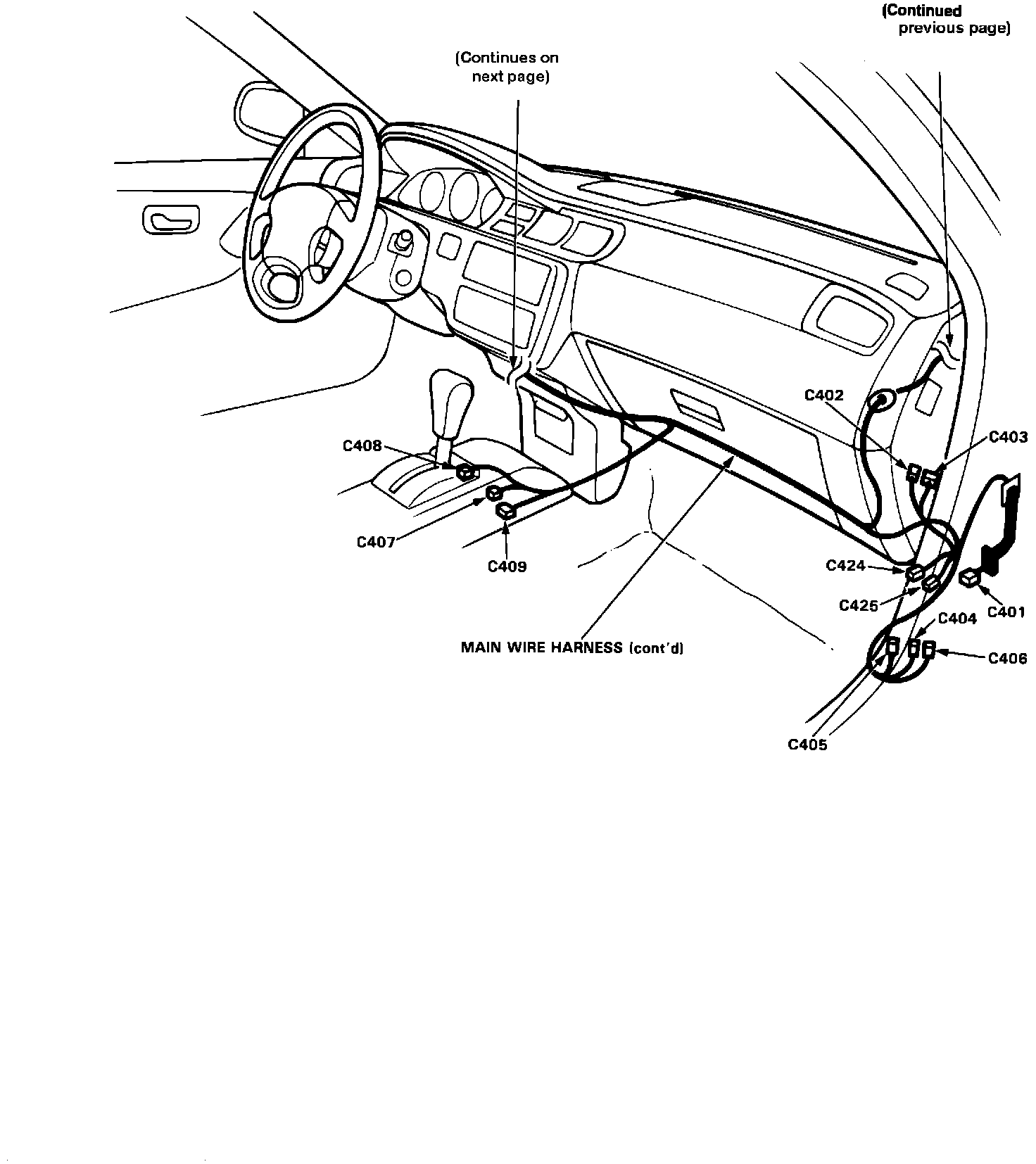

Connector Locations And Wire Harness Routing: Main Wire Harness (Right Side Of Dash And Floor Branch):
