Honda
>>
1993
>>
Civic L4-1590cc 1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Starter Motor
>>
Manual Transmission
Manual Transmission

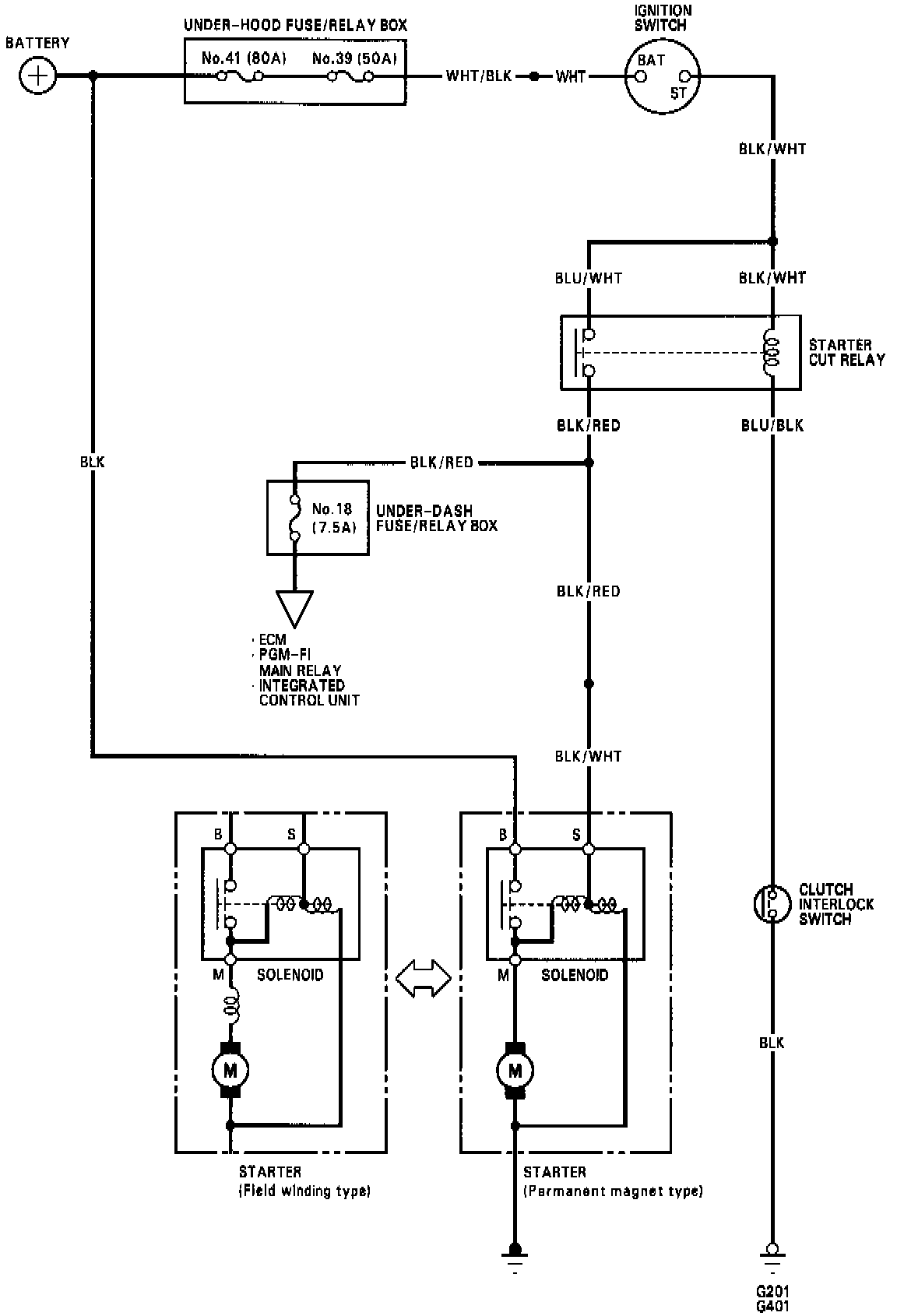

Starter Wiring Diagram:
