Civic L4-1590cc 1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>

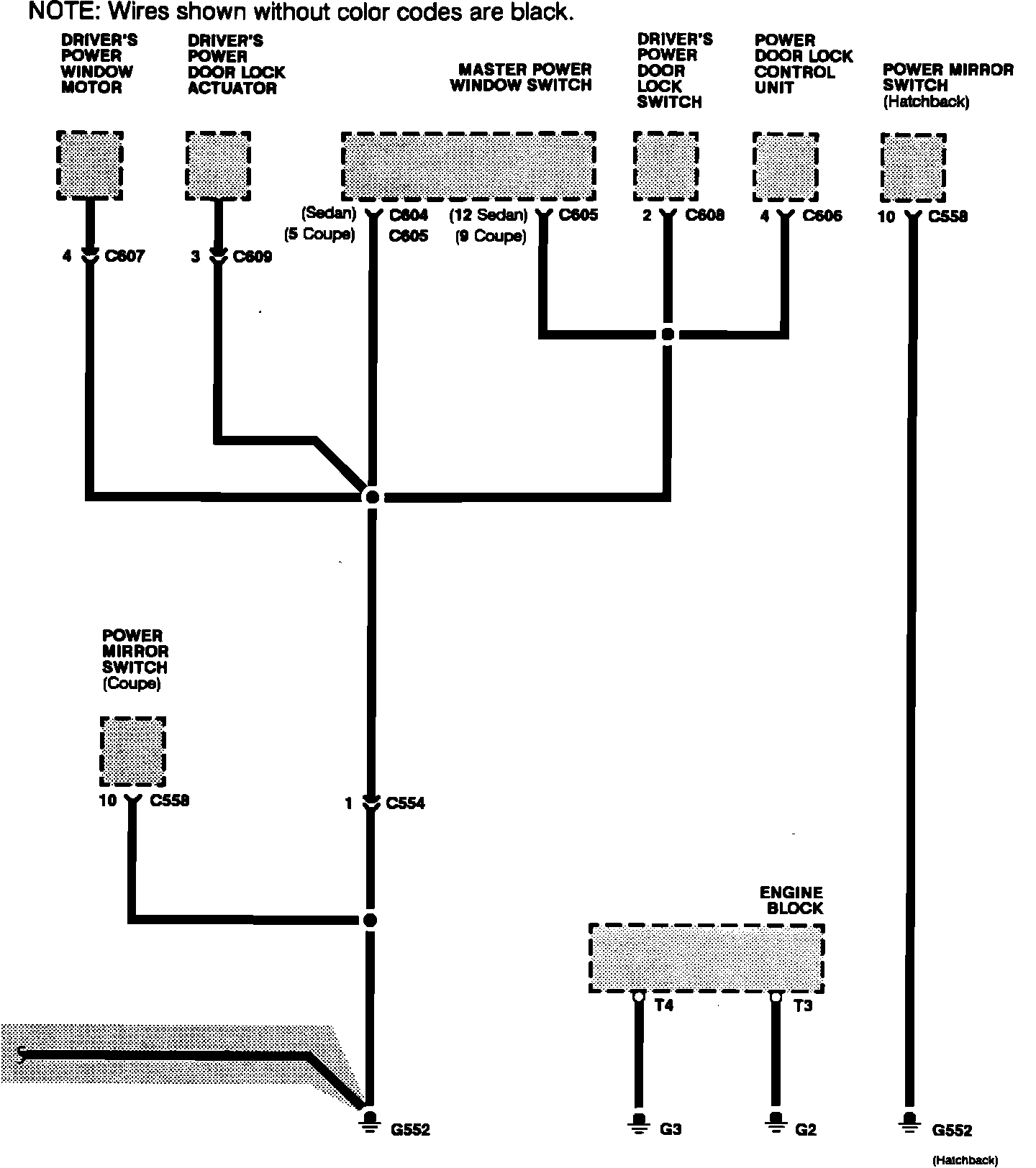

Ground Distribution
>>
G2, G3, G552
G2, G3, G552
Ground Distribution:
