Wiring Diagrams

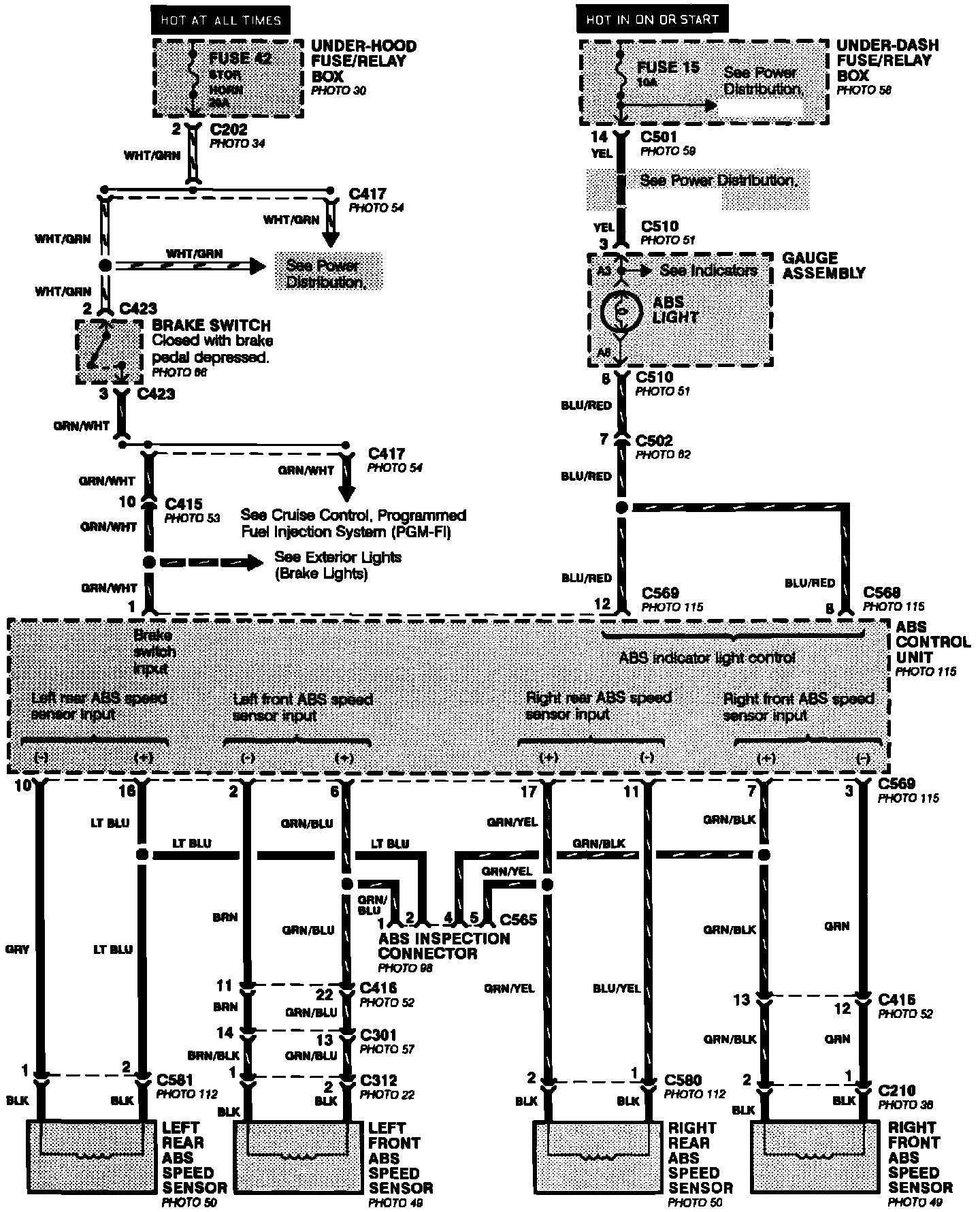

Anti-Lock Brake System (ABS): Brake Switch, Indicator And Wheel Speed Sensor Inputs:

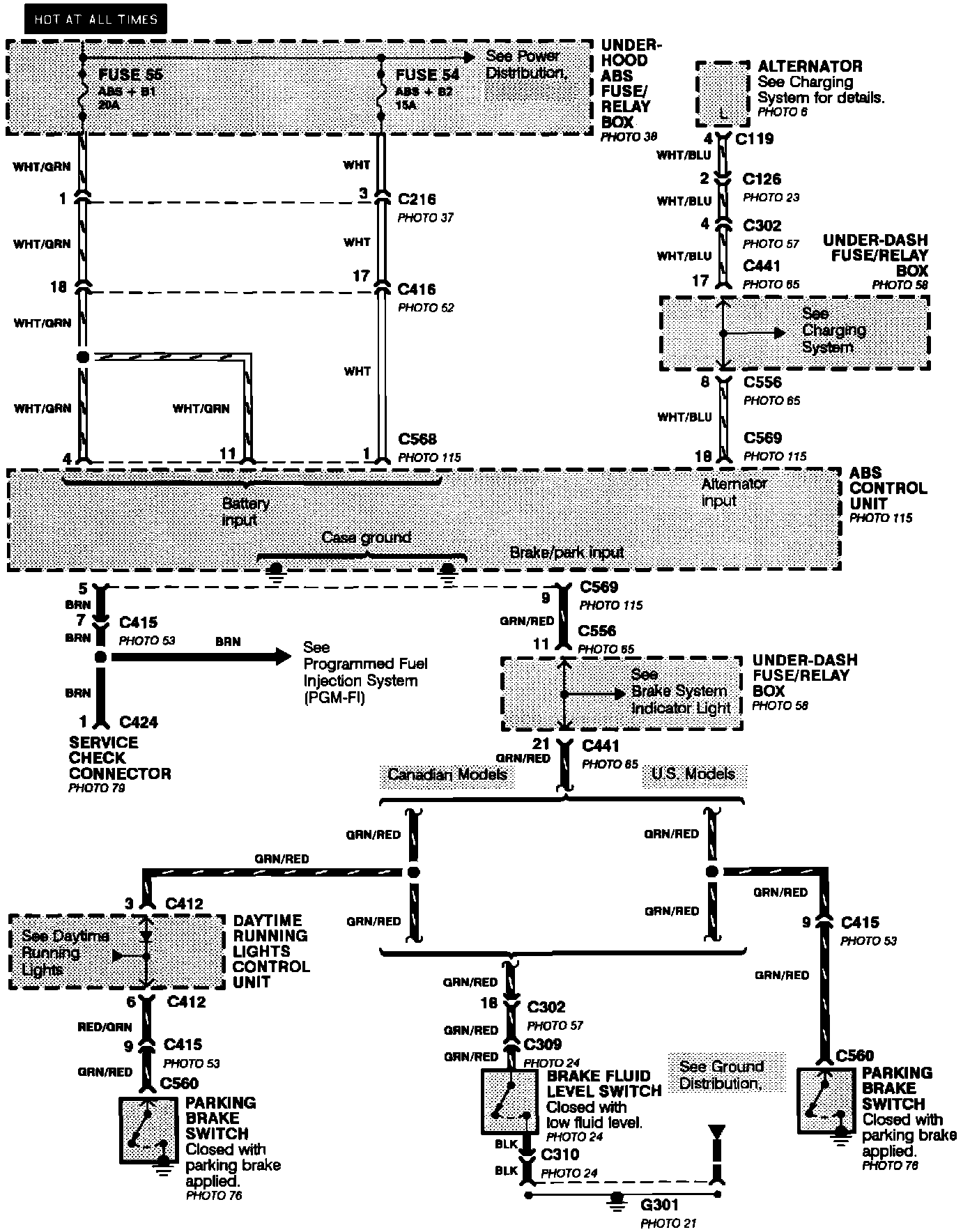

Anti-Lock Brake System (ABS): Power And Parking Brake Inputs:

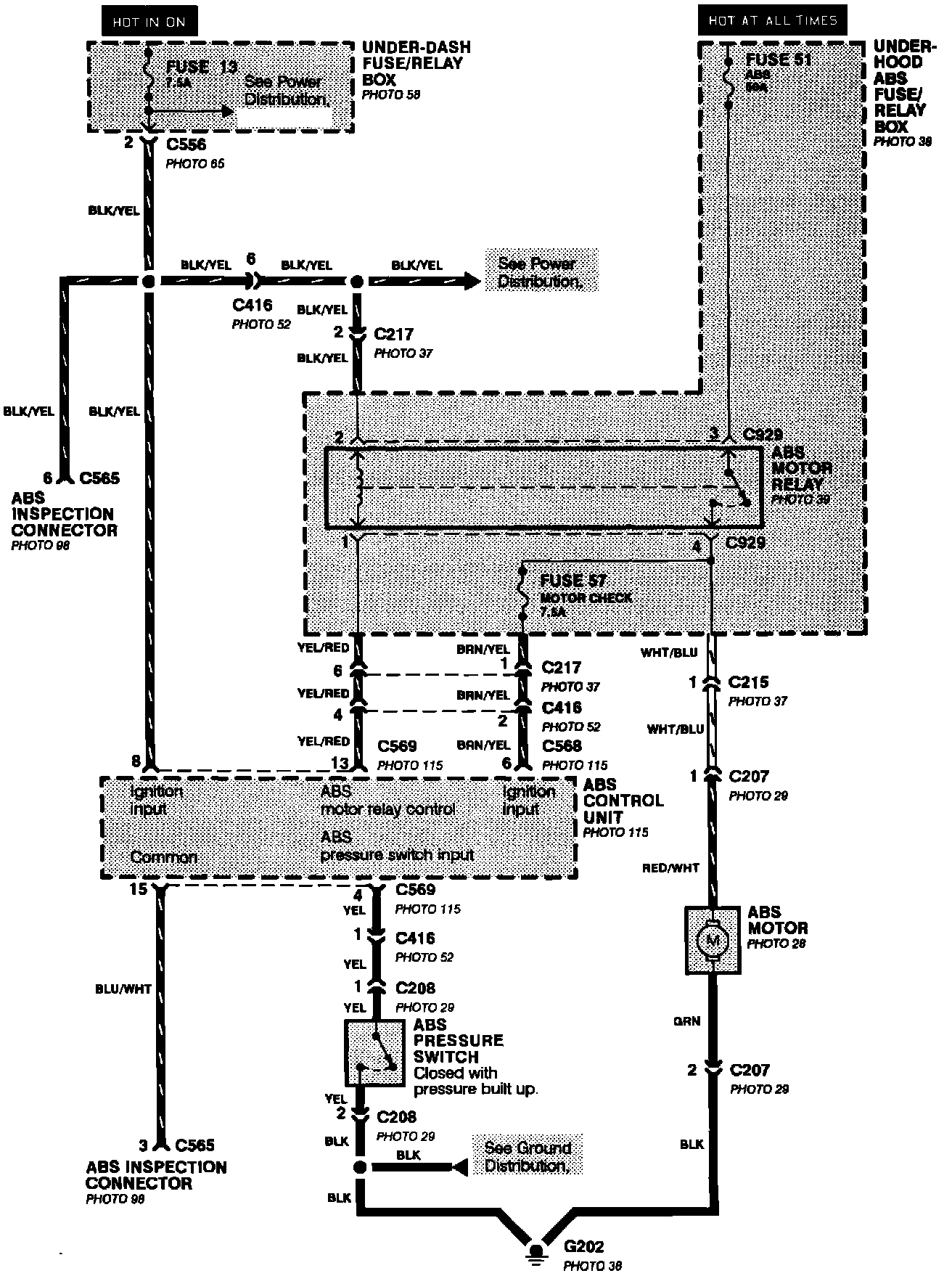

Anti-Lock Brake System (ABS): Motor And Pressure Switch:

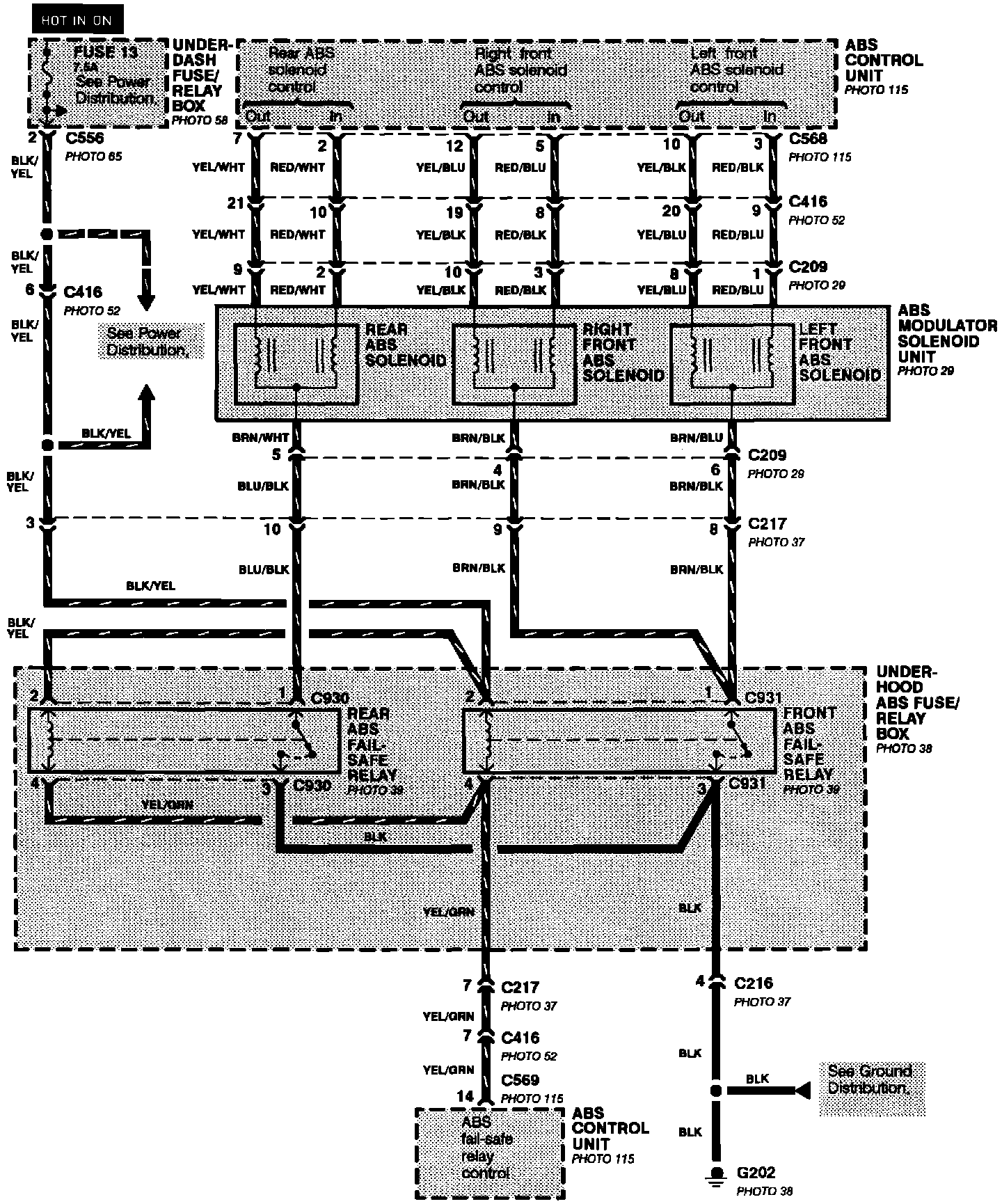

Anti-Lock Brake System (ABS): Fail-Safe Relays And Modulator Unit:
