Part 1

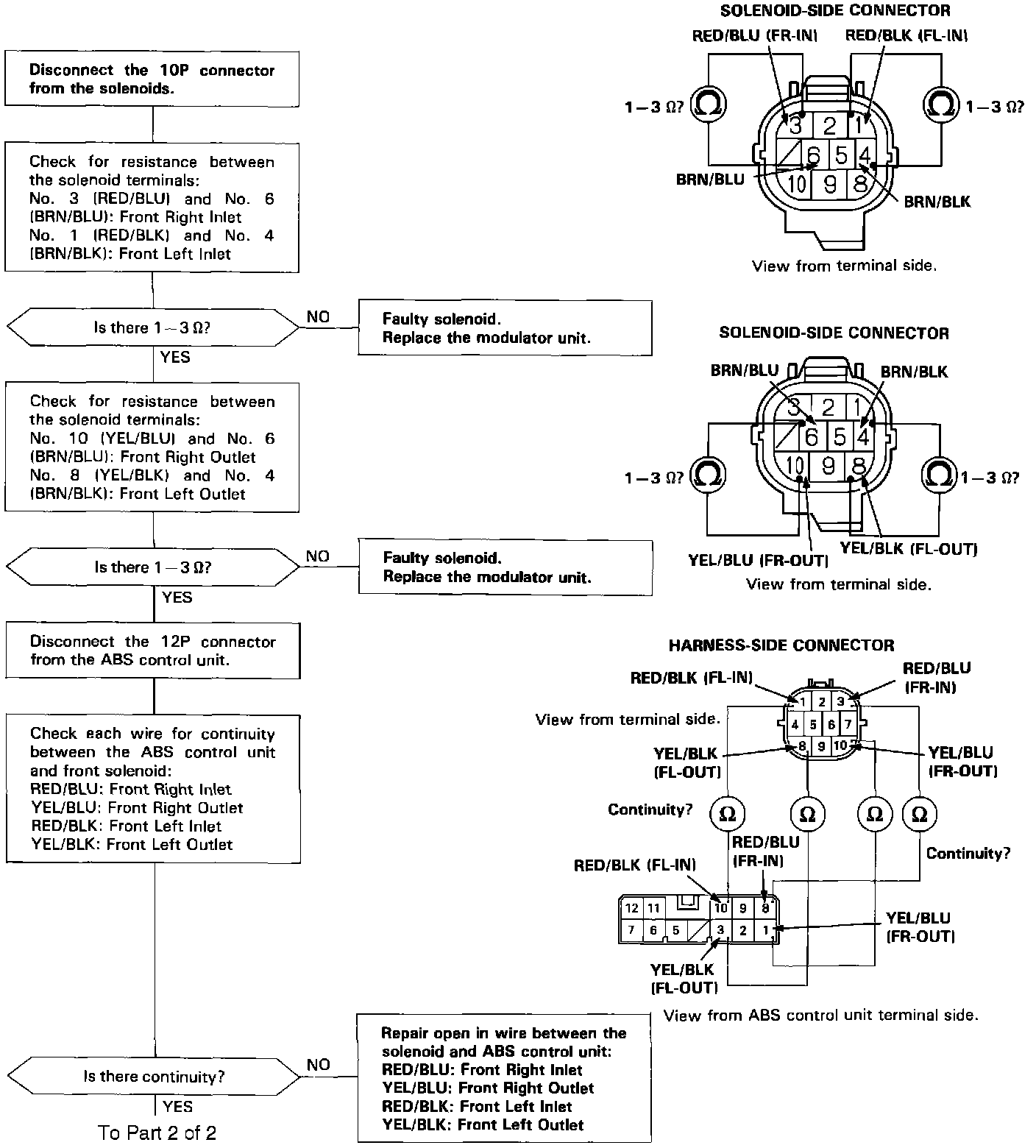

DTC 7-1 And 7-2: Front Solenoid Related Problem (Part 1 Of 2):




CAUTION: Use only the digital multimeter to check the system.

Pre-test steps:
^ Check ABS B1 (20 A) fuse in the under-hood ABS fuse/relay box.
^ Check for loose under-hood ABS fuse/relay box connectors.
