Hitachi Starters

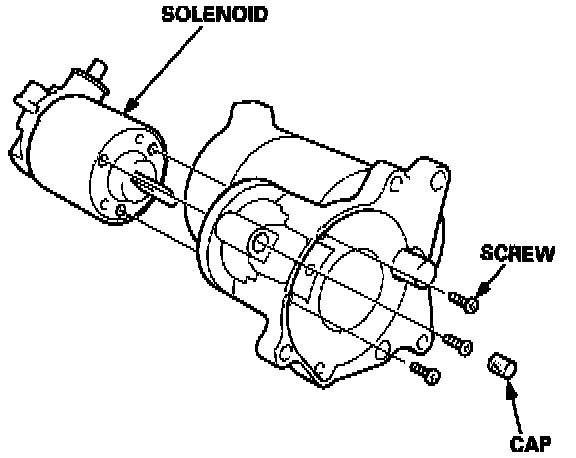

NOTE: The illustration shows Mitsuba type.

Starter Solenoid Test (Hitachi Type):

1. Remove the starter solenoid from the gear housing cover.

Solenoid Continuity Test:

2. Check for continuity between the terminals in each solenoid plunger position according to the table.
