Manifold Pressure/Vacuum Sensor: Locations

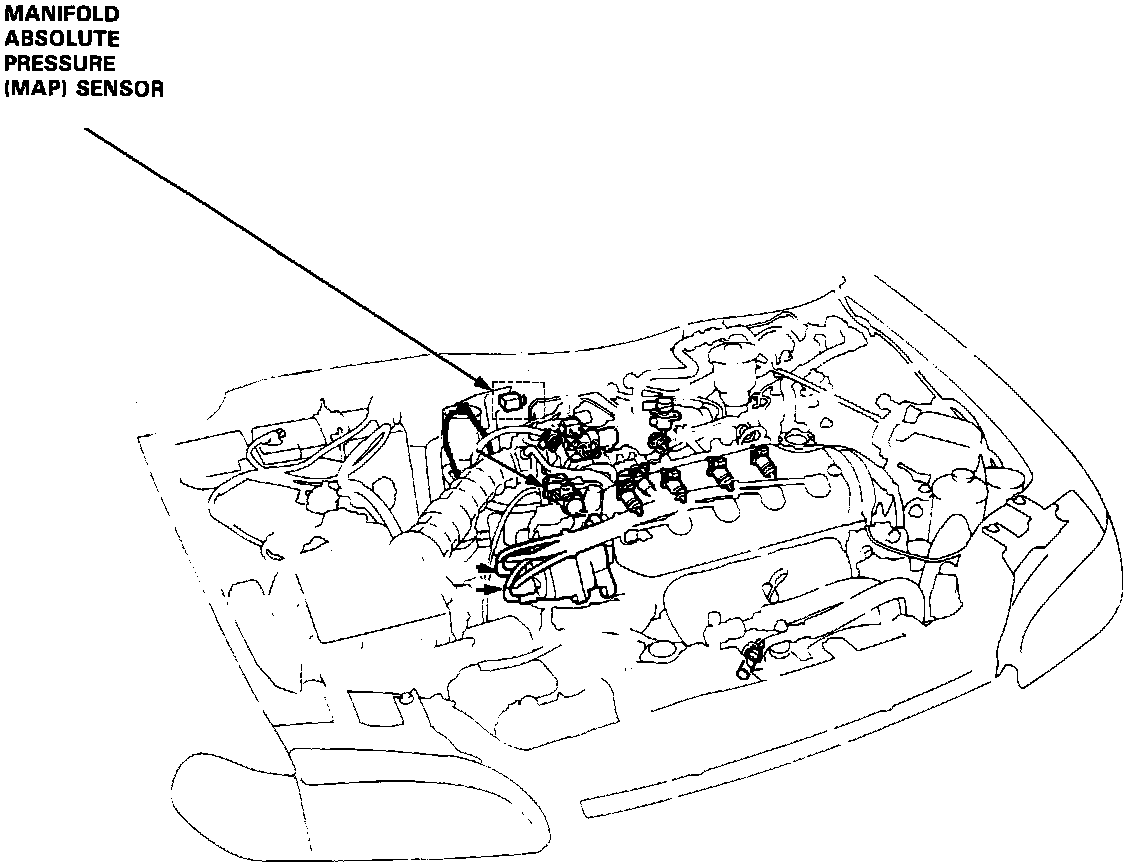

Under-hood Component Location:






Located on the firewall (bulkhead) behind the throttle body.
