Electrical Diagrams

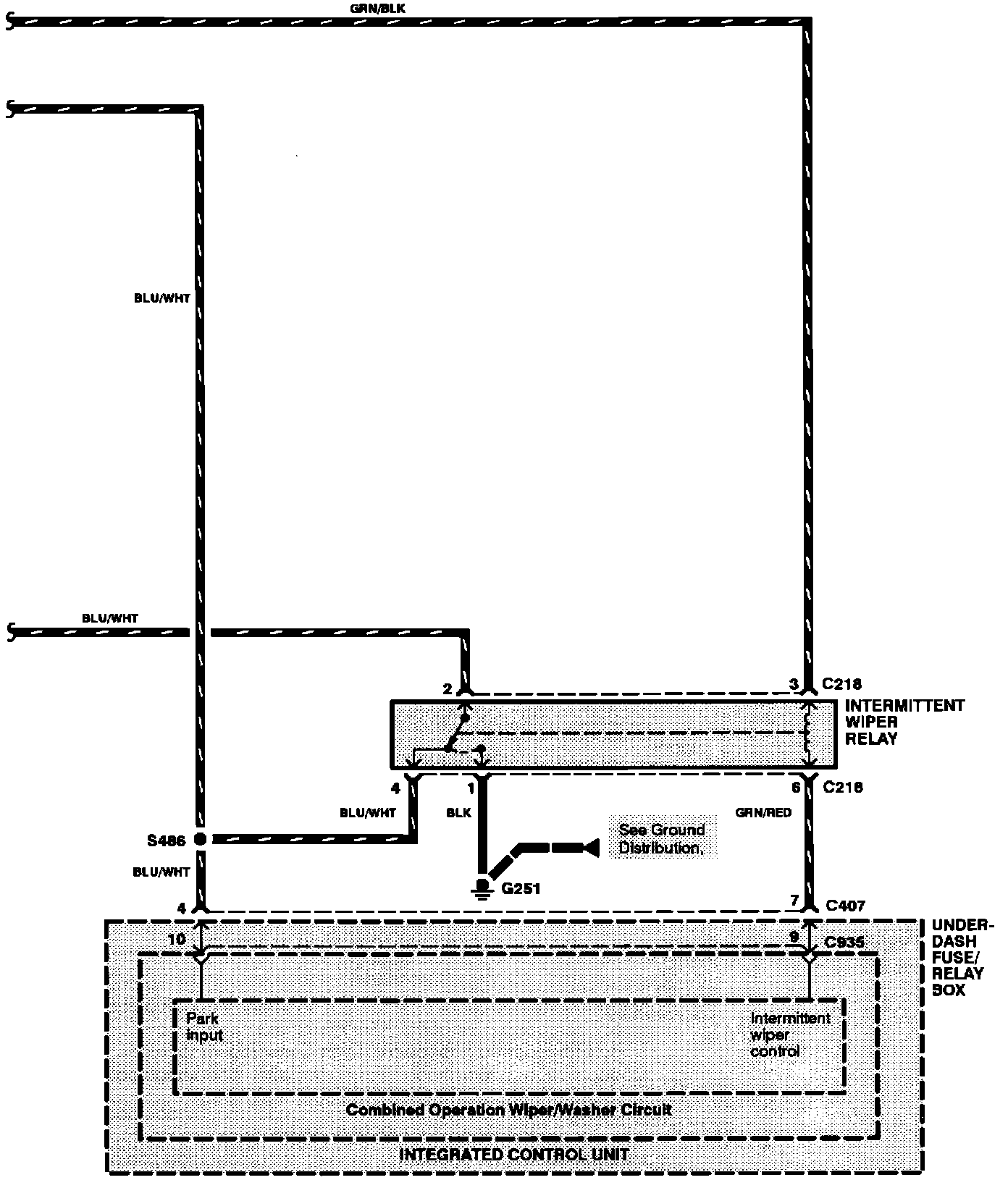

Front Windshield Wiper/Washer:



Front Windshield Wiper/Washer:

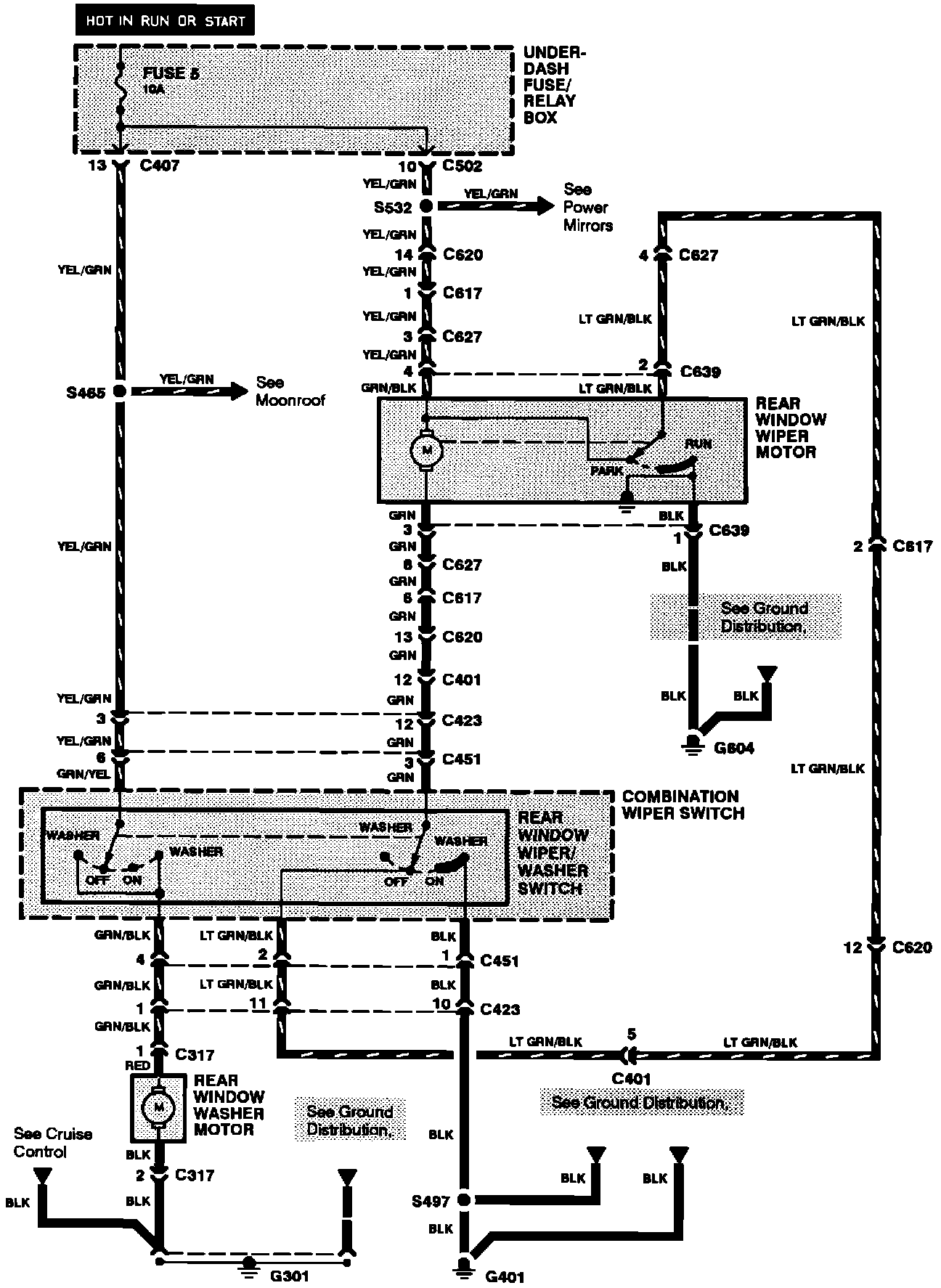

Rear Wiper/Washer: Component Location Index:
