Inspection

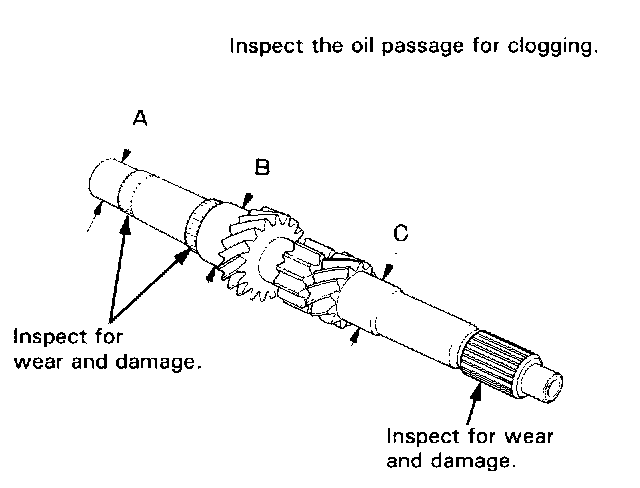

1. Measure the mainshaft at points A, B and C.
2. If any part of the mainshaft is less than the service limit, replace it with a new one.

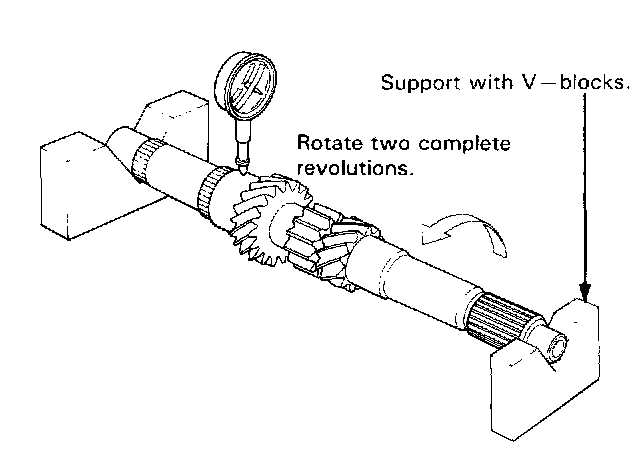

3. Inspect for runout.
4. If the runout exceeds the service limit, replace the mainshaft with a new one.
