Mainshaft Bearing/Bushing: Service and Repair

1. Remove the differential assembly.

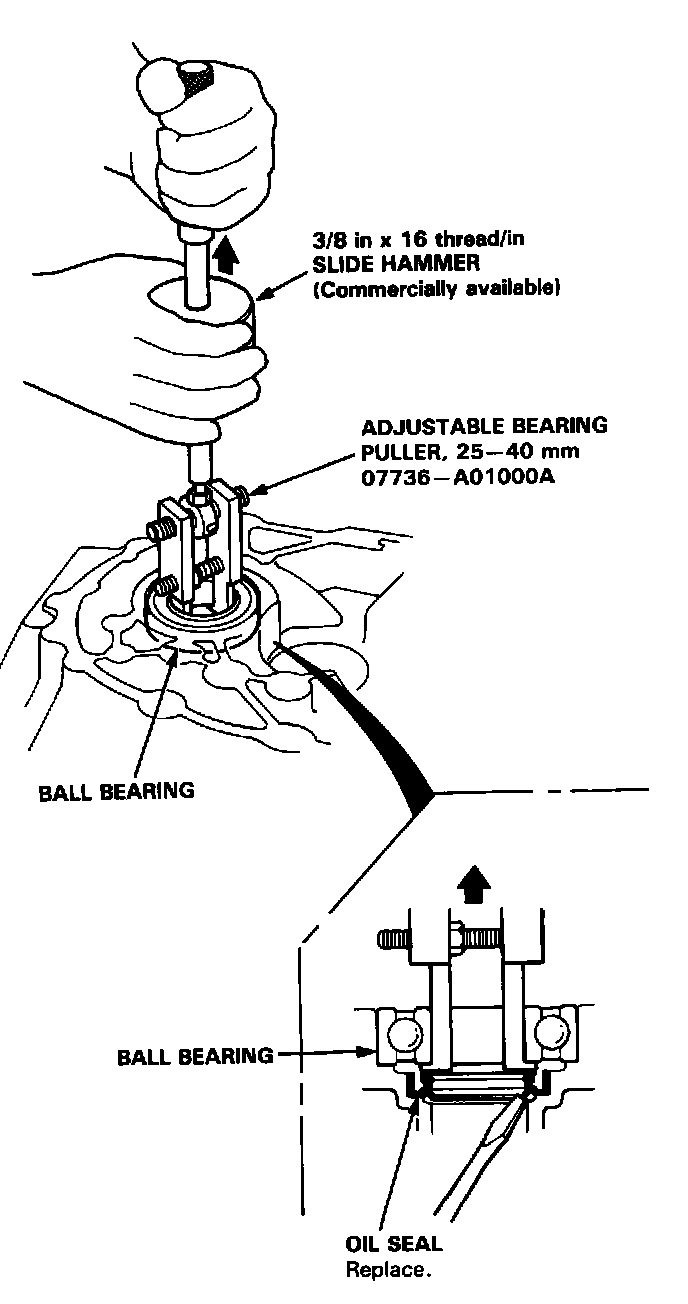

2. Remove the ball bearing with the special tool as shown.

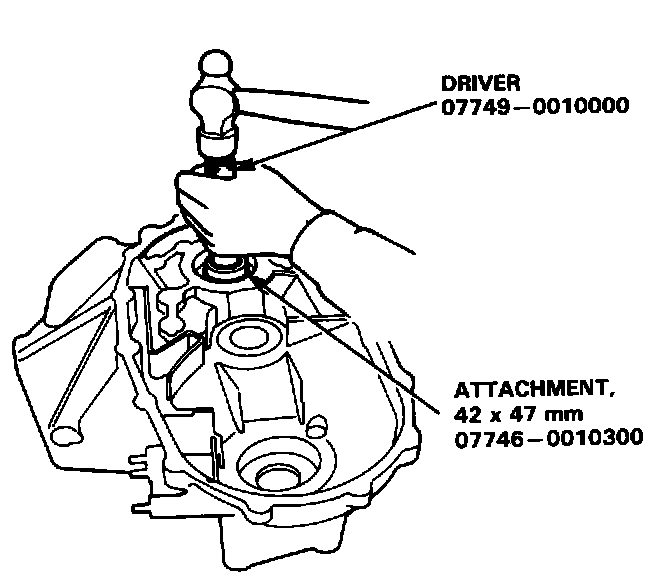

3. Remove the oil seal from the clutch side.

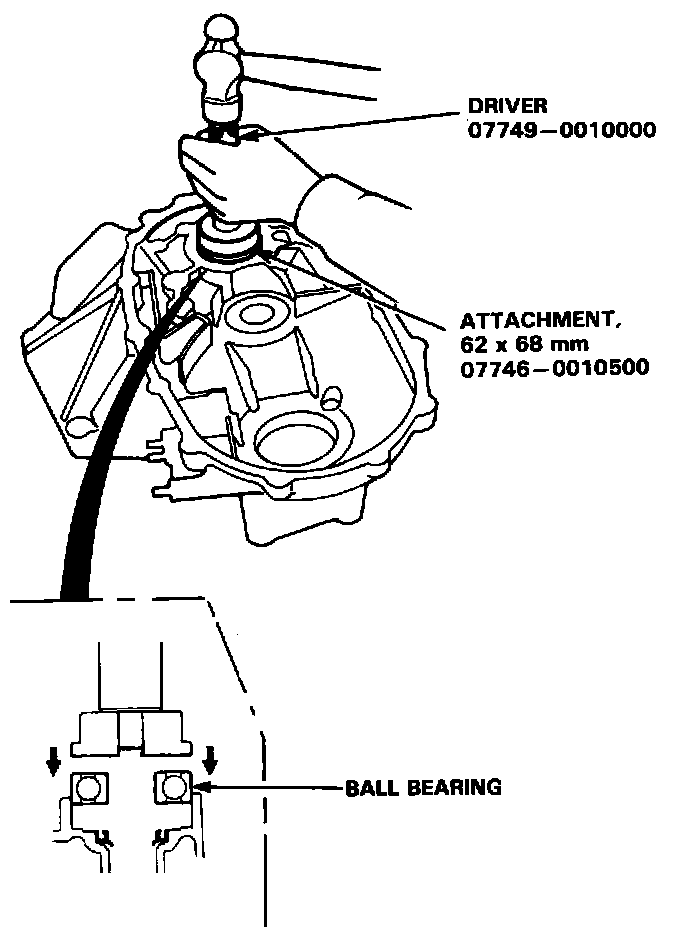

4. Drive a new oil seal from the transmission side using the special tools as shown.





5. Drive a new ball bearing from the transmission side using the special tools as shown.
