Inspection

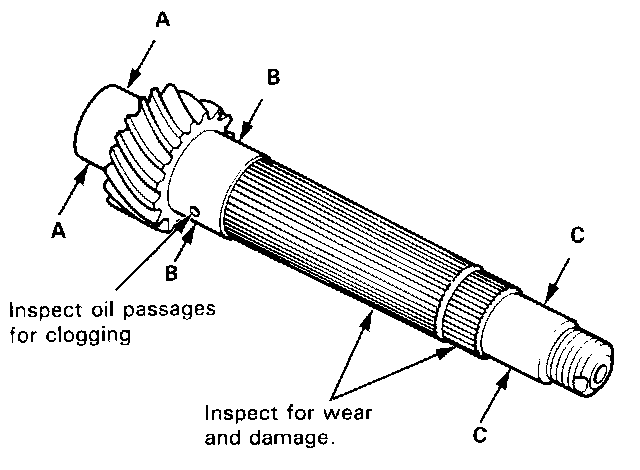

1. Measure the countershaft at points A, B and C.

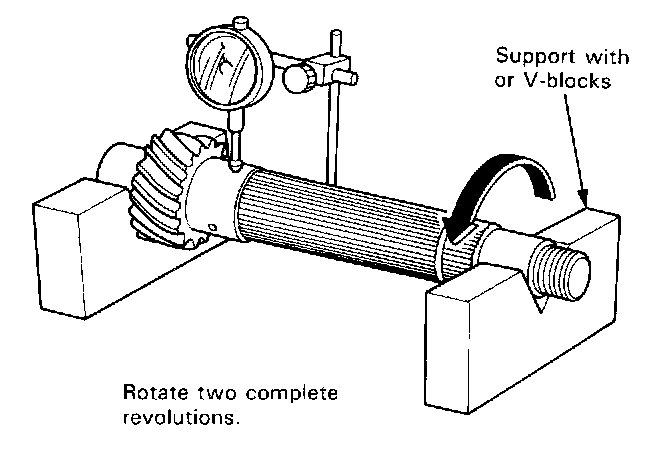

2. If any part of the countershaft is less than the service limit, replace it with a new one.





3. Inspect for runout.
4. If the runout exceeds the service limit, replace the countershaft with a new one.
