Shift Cable: Service and Repair

WARNING:
- MAKE SURE LIFTS, JACKS AND SAFETY STANDS ARE PLACED PROPERLY, AND HOIST BRACKETS ARE ATTACHED TO THE CORRECT POSITION ON THE ENGINE.
- APPLY PARKING BRAKE AND BLOCK REAR WHEELS SO VEHICLE WILL NOT ROLL OFF STANDS AND FALL ON YOU WHILE WORKING UNDER IT.





CAUTION:

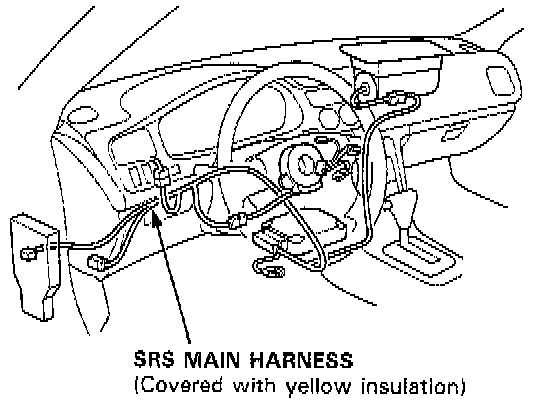

- All SRS wire harnesses are covered with yellow insulation. Before you disconnect any part of an SRS wire harness, disconnect the airbag connectors.
- Whenever the ignition switch ON (II), or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.

1. Remove the console.

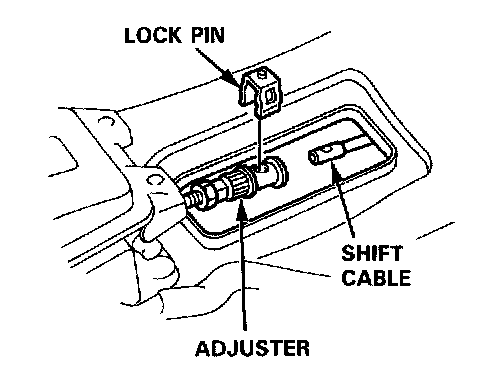

2. Remove the lock pin from the cable adjuster.

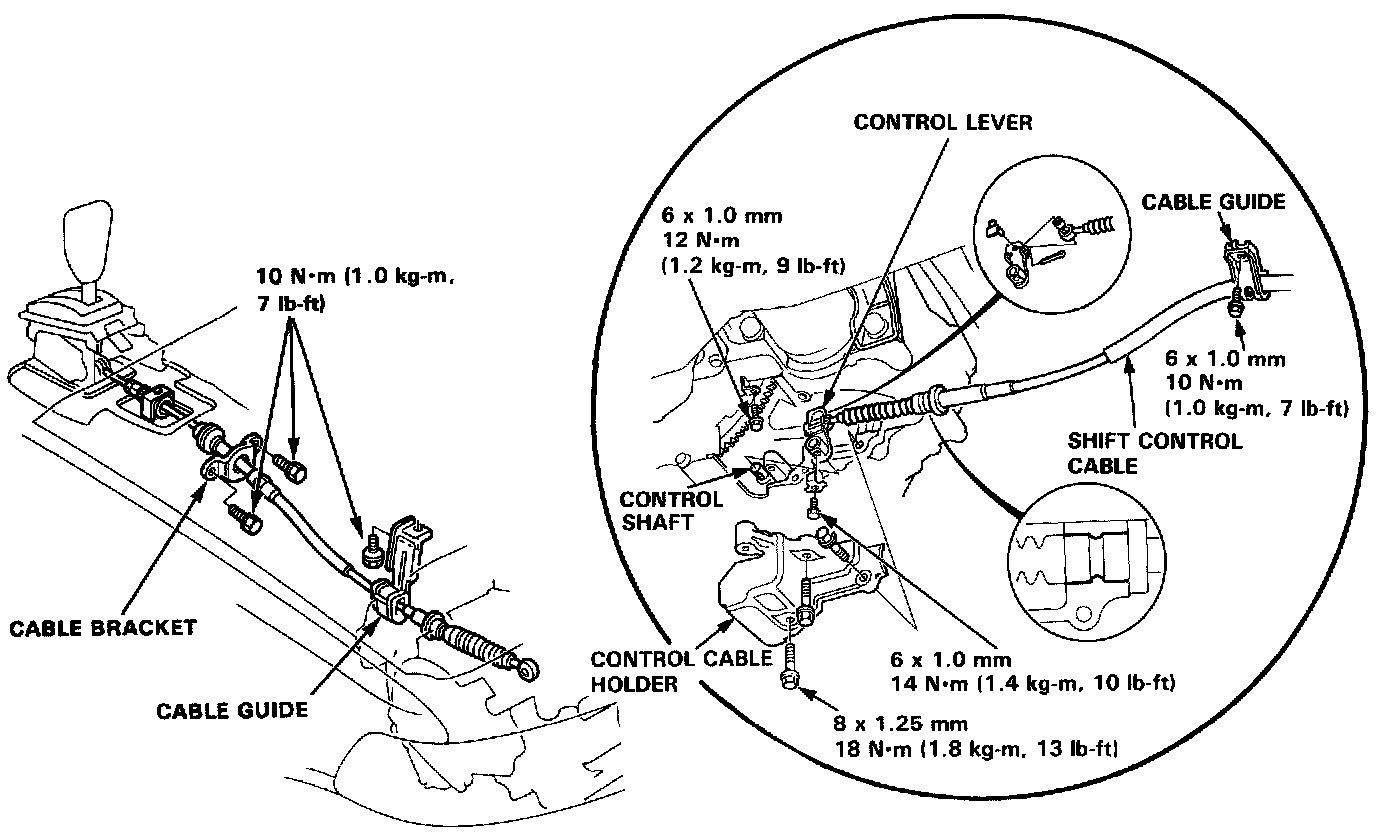

3. Remove the bolts, then remove the cable bracket and cable guide.

4. Remove the exhaust pipe A and center beam.

5. Remove cable holder.

6. Remove the shift cable with control lever from the control shaft.

CAUTION: Take care not to bend the cable when removing it.

7. Install the shift cable in the reverse order of removal.

NOTE: On reassembly, check the cable adjustment.
