Lighting - Buzzing During Turn Signal Lever Operation

Bulletin No.: 91-008
Model [NEW]: 1990-94 ACCORD
Applicable To: ALL
File Under: ELECTRICAL
Issue Date: JAN 7, 1994

Buzzing Noise During Turn Signal Lever Operation (Supersedes 91-008, dated March 1, 1991)

PROBLEM

The turn signal relay makes a buzzing noise when the turn signal lever is operated. This noise does not affect the turn signal's operation. The noise may vary and be intermittent.

CORRECTIVE ACTION

Replace the turn signal/hazard relay with the new unit listed under PARTS INFORMATION.

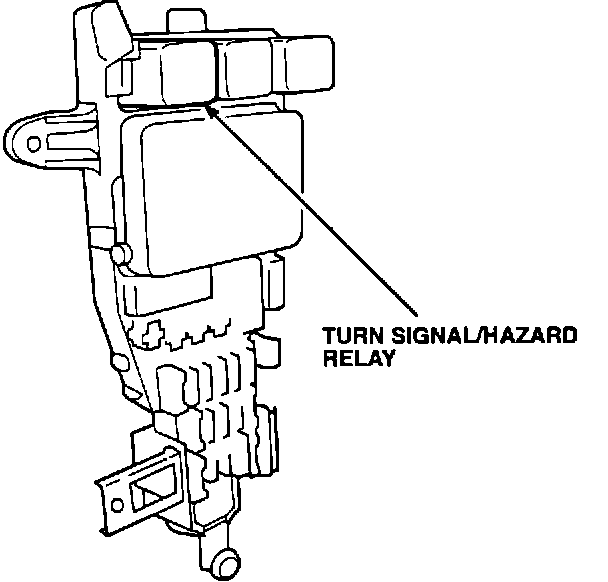

1. Remove the turn signal/hazard relay from the under-dash fuse box by inserting a small screwdriver underthe holding tab on each side of the relay. Pull the relay straight out.

2. Install the new relay in the fuse box.

PARTS INFORMATION

Turn Signal Relay: P/N 38300-SE3-003, H/C 2177863

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Off ice. You must request consideration, and get a decision, before starting work.

Operation number: 730125
Flat rate time: 0.3 hour
Failed part: P/N 38300-SE3-004
H/C 2177871
Defect code: 042
Contention code: B07
