Control Arm Bushing: Service and Repair

Lower Control Arms, Rear

Lower Control Arm Bushing Removal:

Lower Arm A: and B:

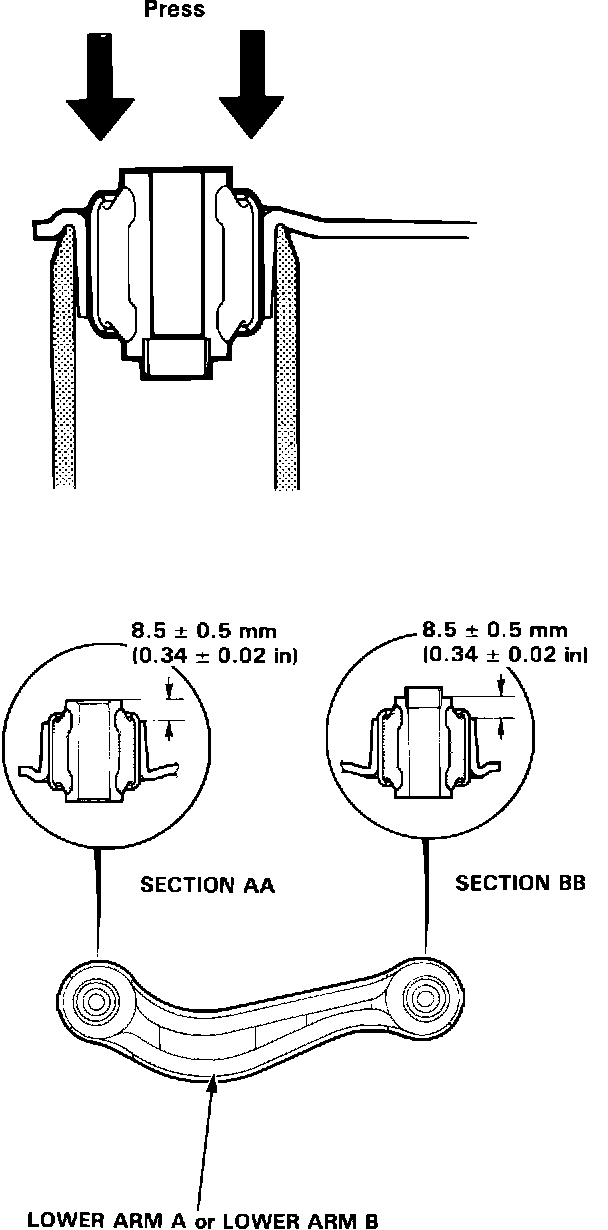

NOTE: Install the bushings so that 8.5 +/- 0.5 mm (0.34 +/- 0.02 in) protrudes from the lower arm A as shown.


1. Use an appropriate size socket (0.D. 35mm) and a press.
