Removal

WARNING! Store a removed driver's airbag assembly with the pad surface up. If the airbag is improperly stored face down, accidental deployment could propel the unit with enough force to cause serious injury.

CAUTION:

^ All SRS electrical wiring harnesses are covered with yellow outer insulation.
^ Before disconnecting the SRS wire harness, install the short connector(s) on the airbag(s).
^ Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.

1. Disconnect both the negative cable and positive cable from the battery.

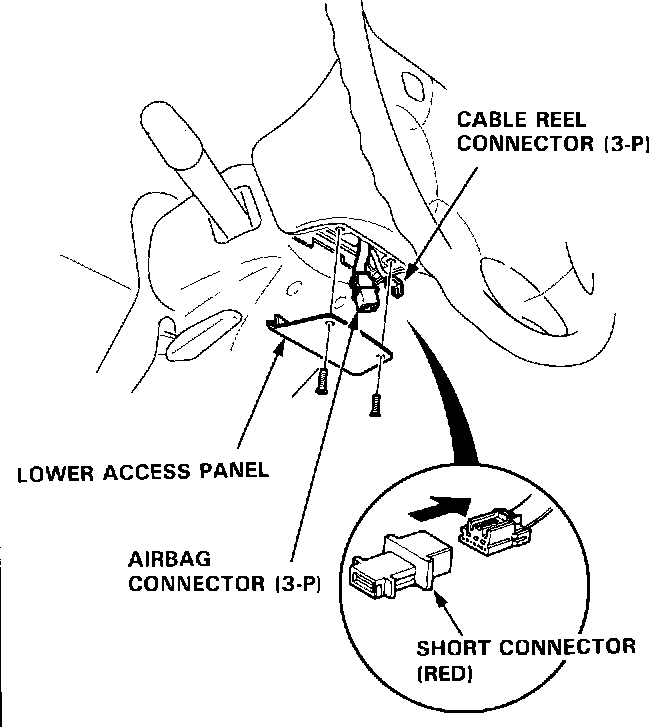

2. Remove the lower access panel from the steering wheel lower cover, then remove the short connector (red).

3. Disconnect the connector (3-P) between the airbag and cable reel.

Short Connector Installation:

4. Connect the short connector to the airbag side of the connector.

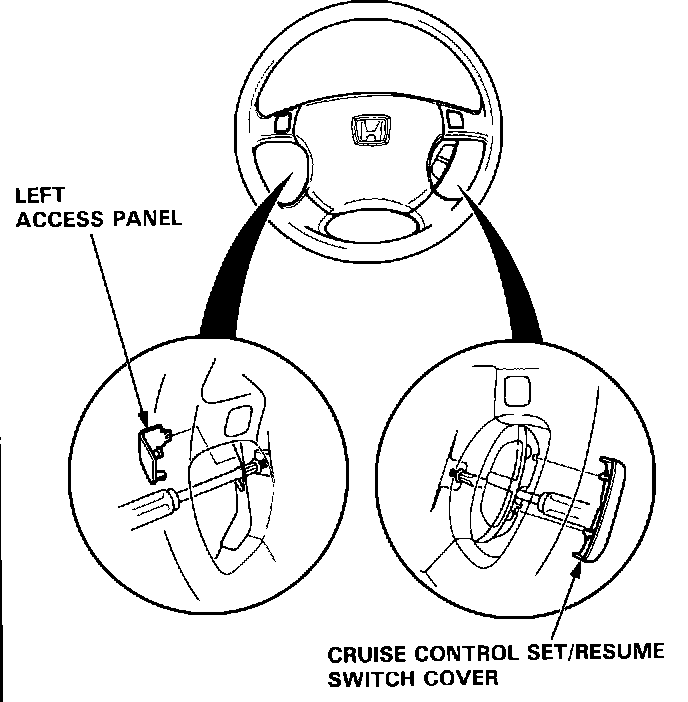

5. Remove the left access panel and the cruise control SET/RESUME switch cover.

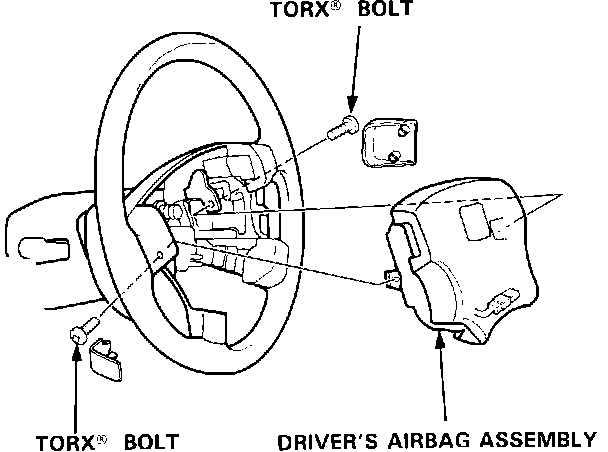

Removing TORX<Reg> Bolts:

6. Remove the two TORX bolts using a TORX T3O bit, then remove the driver's airbag assembly.

Disconnecting Wire Connectors:

7. Disconnect the connectors from the horn and cruise control set / resume switches, then remove the cable reel connector (3-P) from its clip.

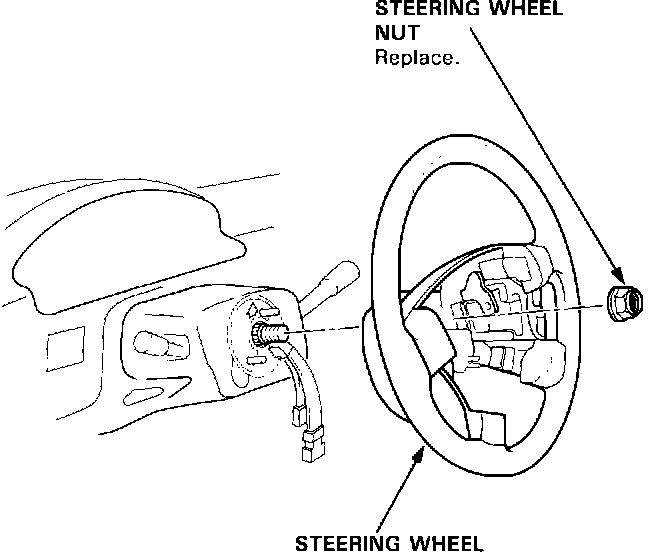

8. Remove the steering wheel nut.

Removing Steering Wheel:

9 Remove the steering wheel by rocking it slightly from side-to-side as you pull steadily with both hands.
