Removal

CAUTION:

^ All SRS electrical wiring harnesses are covered with yellow outer insulation.
^ Before disconnecting the SRS wire harness. install the short connector(s) on the airbag(s).
^ Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.


1. Remove the driver's airbag assembly and steering wheel.

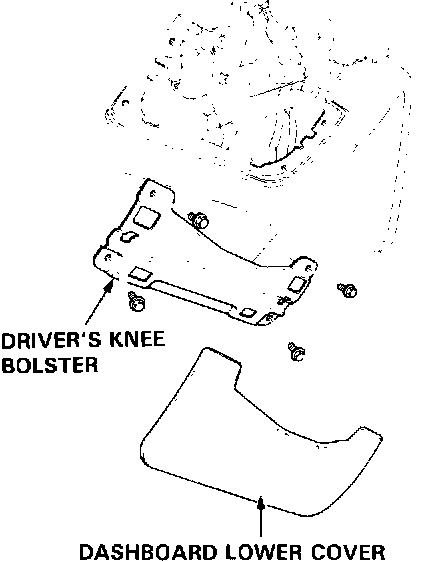

Lower Panel Removal:

2. Remove the dashboard lower cover and driver's knee bolster.

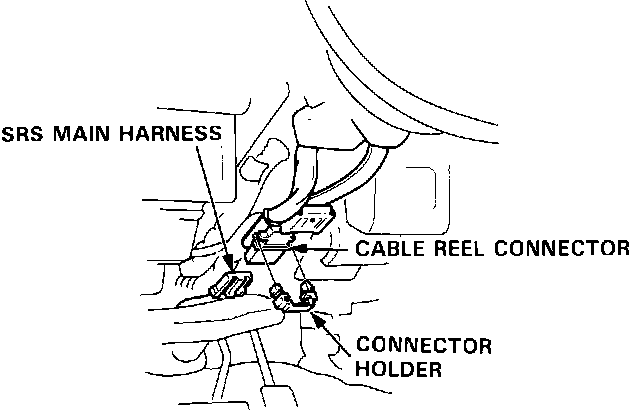

Cable Reel Connector Removal:

3. Disconnect the cable reel connector from the SRS main harness, then remove the connector holder.

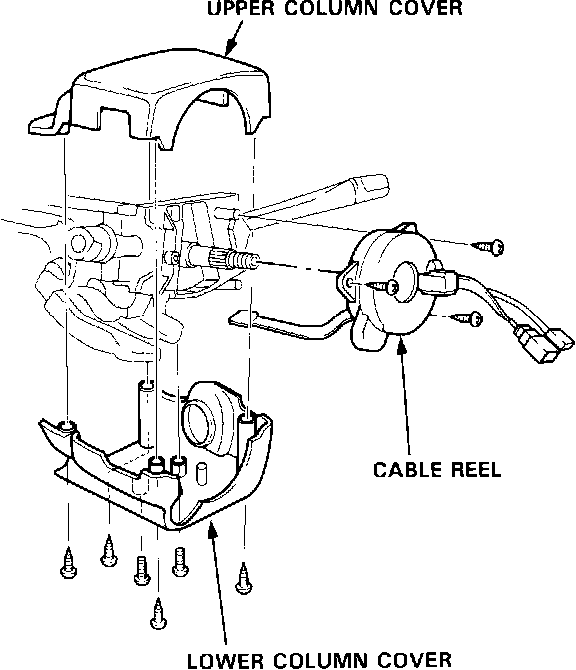

Column Cover Removal:

4. Remove the column covers and cable reel.
5. Disconnect each wire connector from the combination switch.

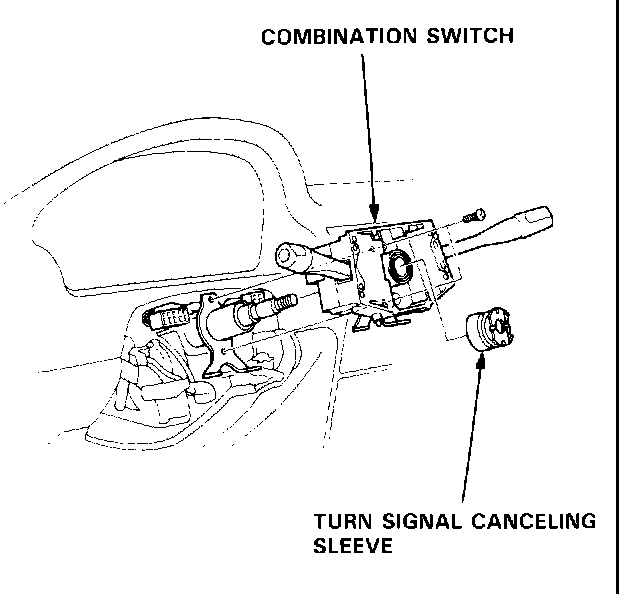

Combination Switch Removal:

6. Remove the turn signal canceling sleeve and combination switch.

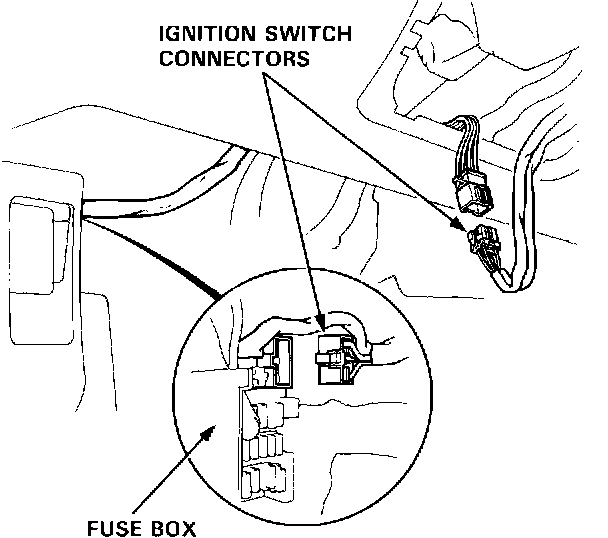

Ignition Switch Wiring:

7. Disconnect the ignition switch connectors from the fuse box under the left side of the dash.

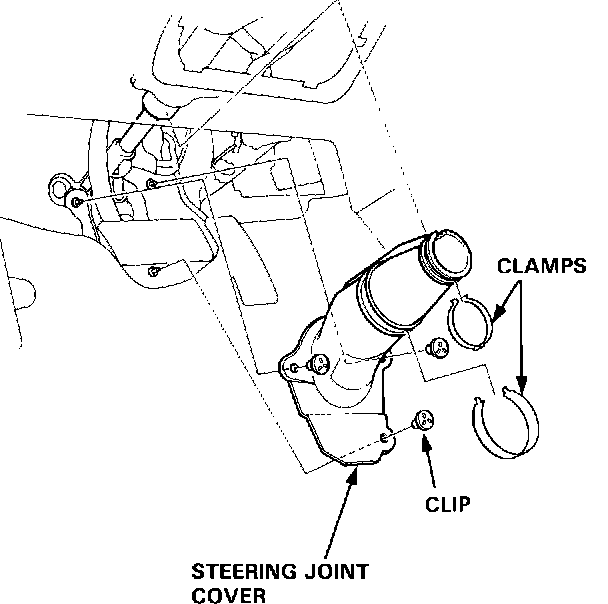

Removing Steering Joint Cover:

8. Remove the steering joint cover by removing the clamps and clips.

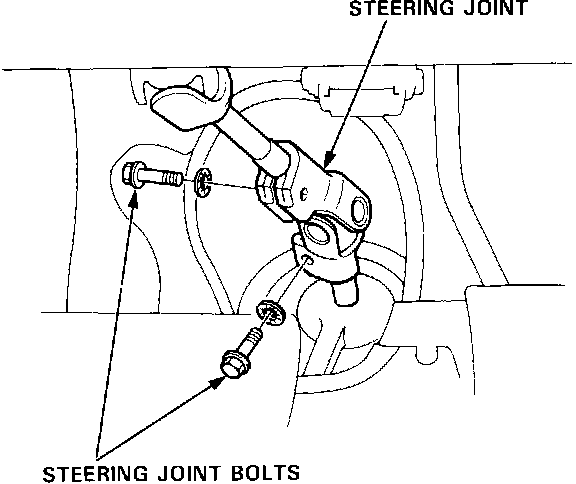

Steering Joint Removal:

9. Remove the steering joint bolts and move the joint toward the column.

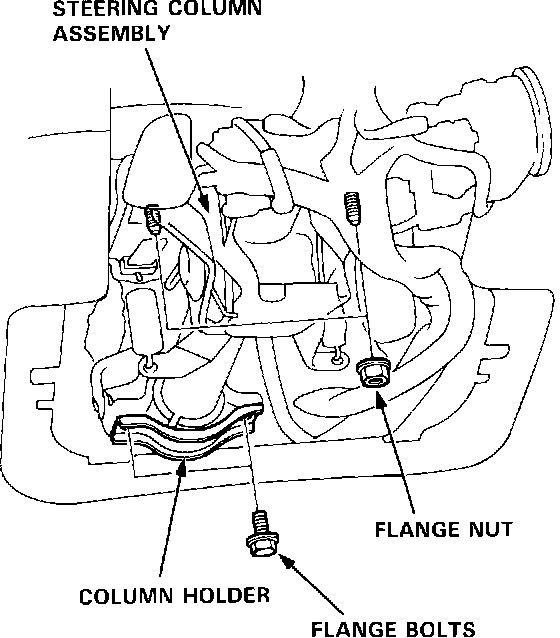

Column Holder Removal:

1O. Remove the column holder and steering column assembly by removing the attaching nuts and bolts.
