Removal

1. Drain the power steering fluid.
2. Raise the front of car and support on safety stands in the proper locations.

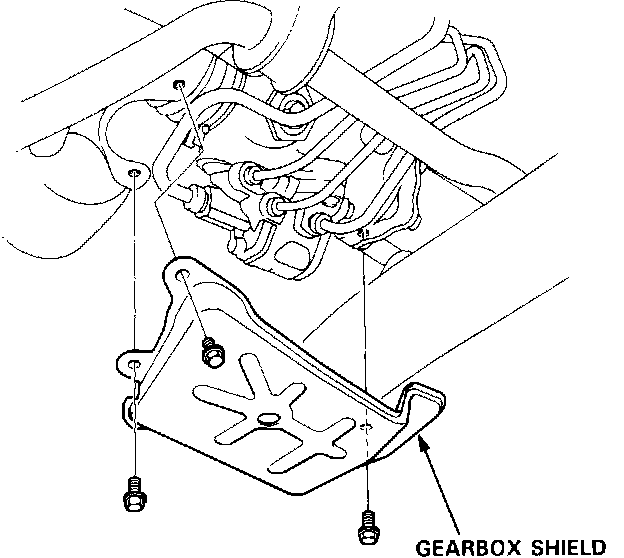

Gear Box Shield Removal:

3. Remove the gearbox shield.
4. Using solvent and a brush, wash any oil and dirt off the valve body unit, its lines, and that end of the gearbox. Blow them dry with compressed air.

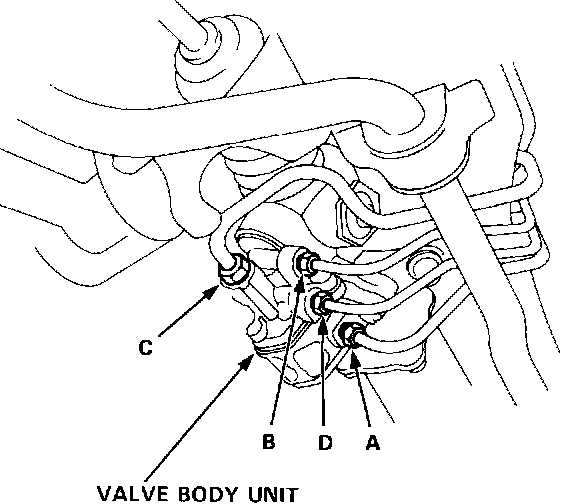

Disconnect Lines From Valve Body:

5. Using flare nut wrenches, disconnect the four lines from the valve body unit.

A: From pump: 14 mm wrench
B: To oil cooler: 12 mm wrench
C: To reservoir: 17 mm wrench
D: To power steering speed sensor: 12 mm wrench

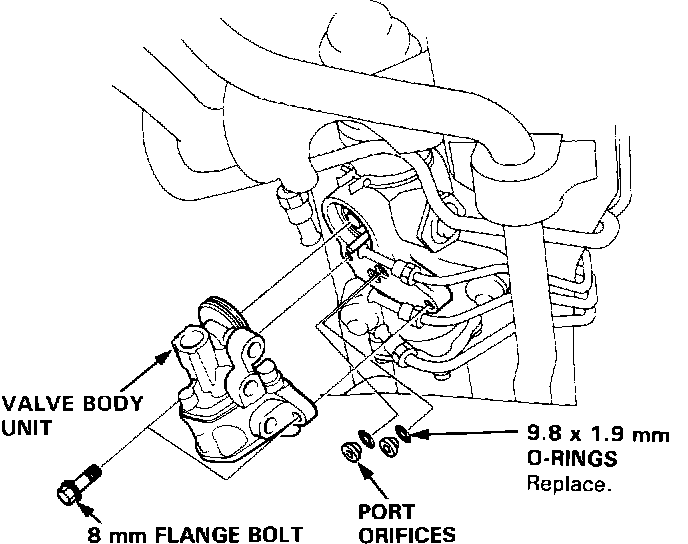

6. Remove the two 8 mm flange bolts and remove the valve body unit from the gearbox.

Remove O-ring And Port Orifices:

7. Remove the O-rings and port orifices from the gearbox.
