Overhaul

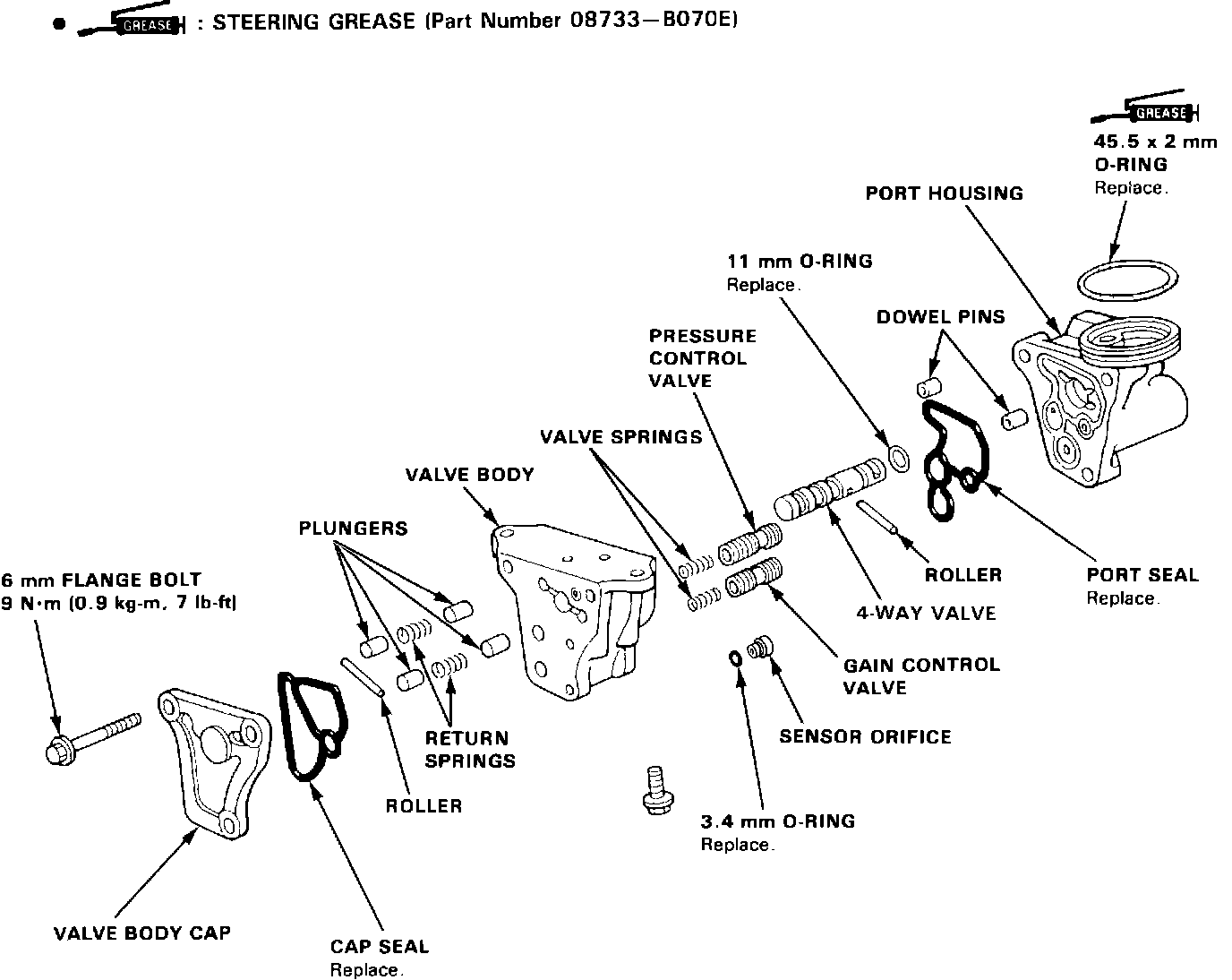

Exploded View Valve Body Assembly:

1. Thoroughly clean the disassembled parts shown below.
2. Coat the plungers, pressure control valve, gain control valve and 4-way valve surfaces with power steering fluid.
3. Reassemble the parts in the reverse order of disassembly.

CAUTION:

^ Before disassembling the gearbox, wash it off with solvent and a brush.
^ Thoroughly clean all disassembled parts.
^ Always replace O-rings and seals.
^ Replace parts with damaged sliding surfaces.
^ Do not dip seals and O-rings in solvent; coat O-rings with grease, make
sure they stay in position during reassembly, and use the appropriate special tools to install them where necessary.

NOTE: If the valve body is damaged, replace the valve body unit (valve body, pressure control valve, gain control valve, 4-way valve) as an assembly.
