Removal

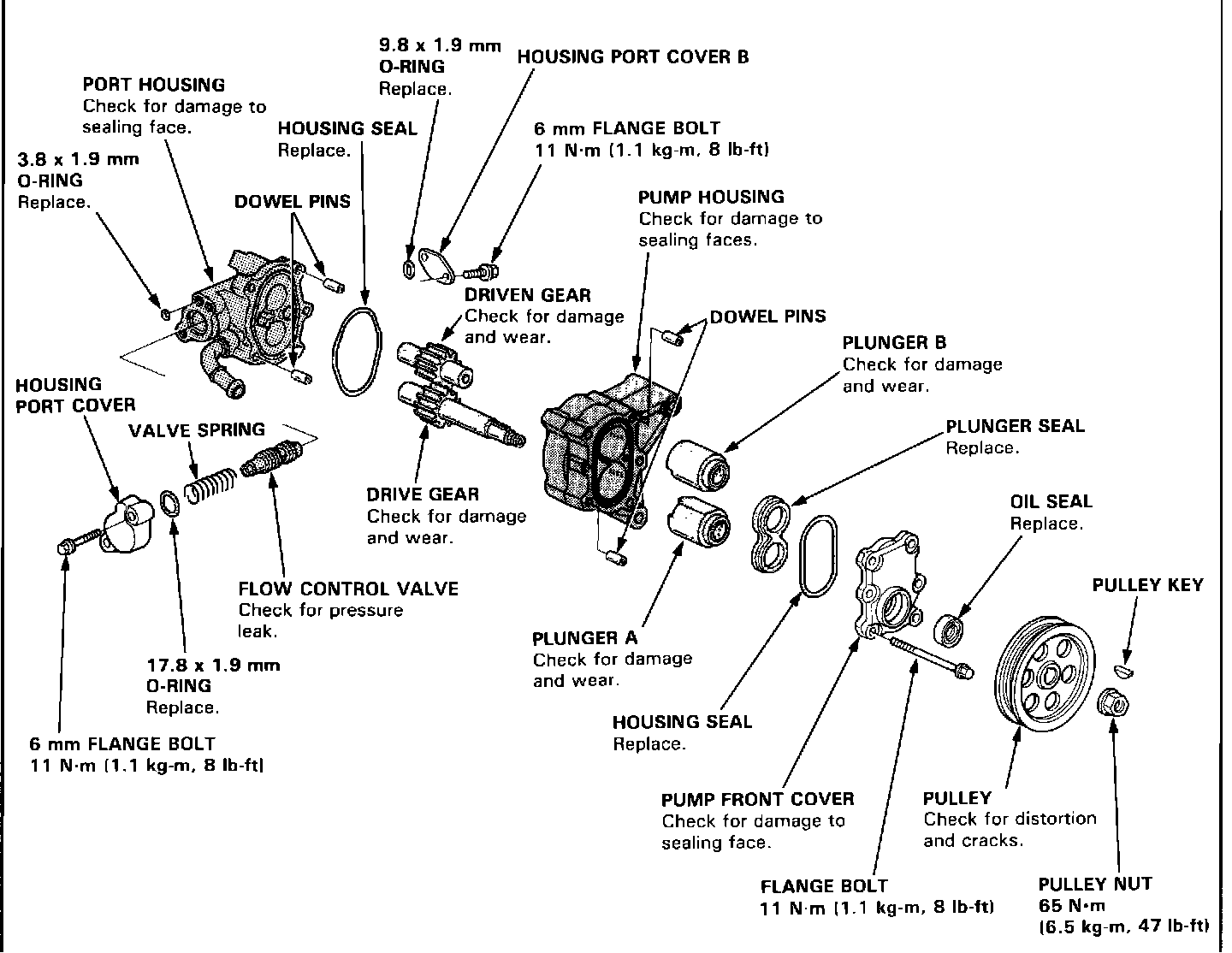

Exploded View Steering Pump:

CAUTION: Pump components are made of aluminum. Be careful not to damage them when servicing.


^ Clean all of the disassembled parts thoroughly.

^ Replace all O-rings and seals. Do not dip new O-rings and seals in solvent; coat O-rings with steering grease before installation, and make sure they stay in place during reassembly.

^ The shaded parts are selectively fitted, and should not be disassembled except to replace seals. If any one of them is faulty, replace the whole pump as an assembly.

NOTE: Before disconnecting the hoses from the pump, place a suitable container under the car.

1. Drain the fluid from the system.
2. Disconnect the inlet and outlet hoses from the pump and plug them.
3. Remove the belt by loosening the special bolt, nut and adjusting bolt.

NOTE: Take care not to spill the fluid on the body and parts. Wipe off the spilled fluid at once.

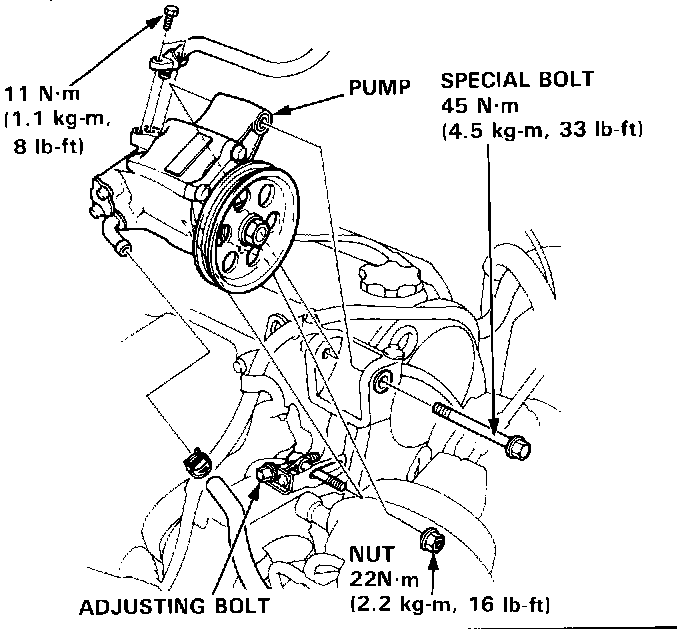

Power Steering Pump Removal:

4. Remove the special bolt and nut, then remove the pump.

NOTE: Do not turn the steering wheel while the pump removed.

5. Loosely install a new pump on the bracket.
6. Connect the inlet and outlet hoses to the pump.

Belt Adjustment And Fit:

7. Install and adjust the belt.


CAUTION:

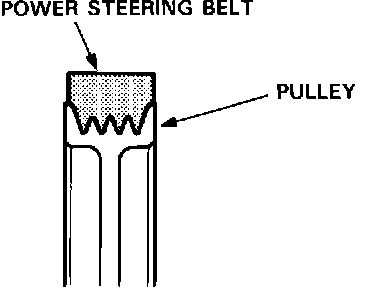

^ Make sure that the power steering belt is securely on the groove of the pulleys.
^ Do not get power steering fluid or grease in the power steering belt or pulley faces. Clean off any fluid or grease before installation.

8. Fill the reservoir with new fluid to the upper level line on the reservoir.
9. Start the engine and let it run at fast idle while turning the steering wheel lock-to-lock several times to bleed air from the system.

Preload Inspection:

10. Check the pump preload with a torque wrench after overhauling a pump or installing a replacement pump.


Preload: 8 Nm (0.8 kg-m, 5.8 lb-ft) max.
