Starter Solenoid Test

Checking Continuity:

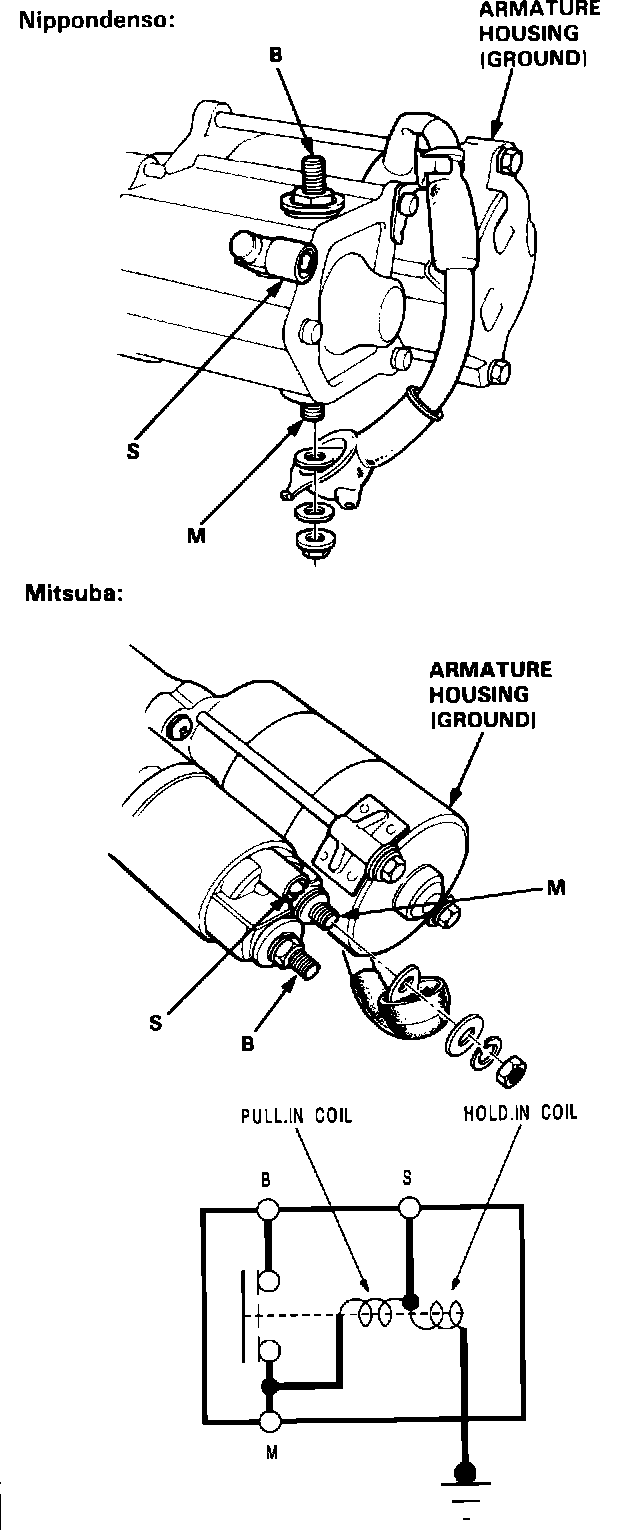

1. Check the holding coil for continuity between the S terminal and the armature housing (ground). The coil is OK if there is continuity.
2. Check the pull-in coil for continuity between the S and M terminals. The coil is OK if there is continuity.
