Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>
Connector Locations
>>
Right Side Dash
Right Side Dash

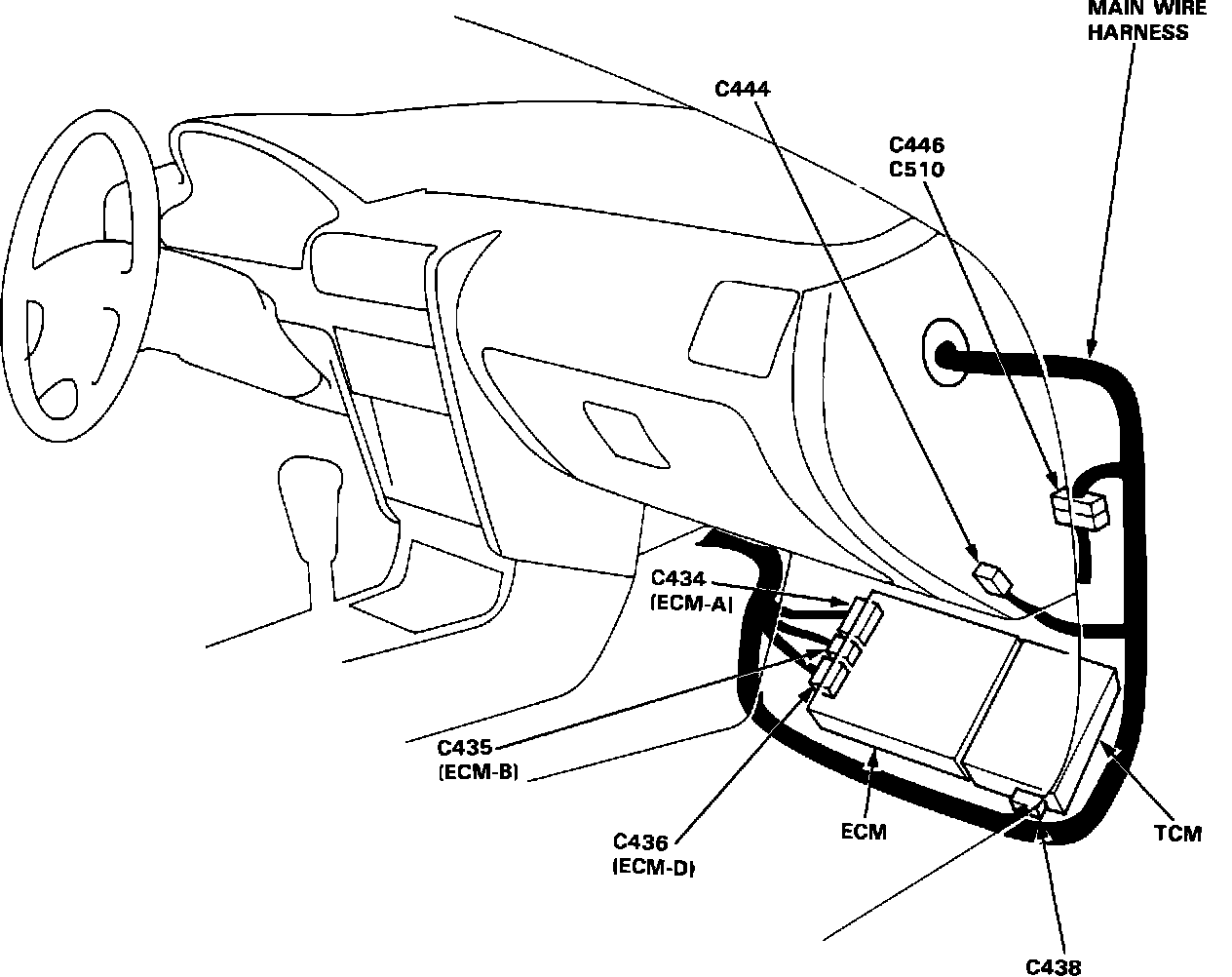

Wiring Harness Right Dash Area:
