Under-Dash Fuse/Relay Box
>>

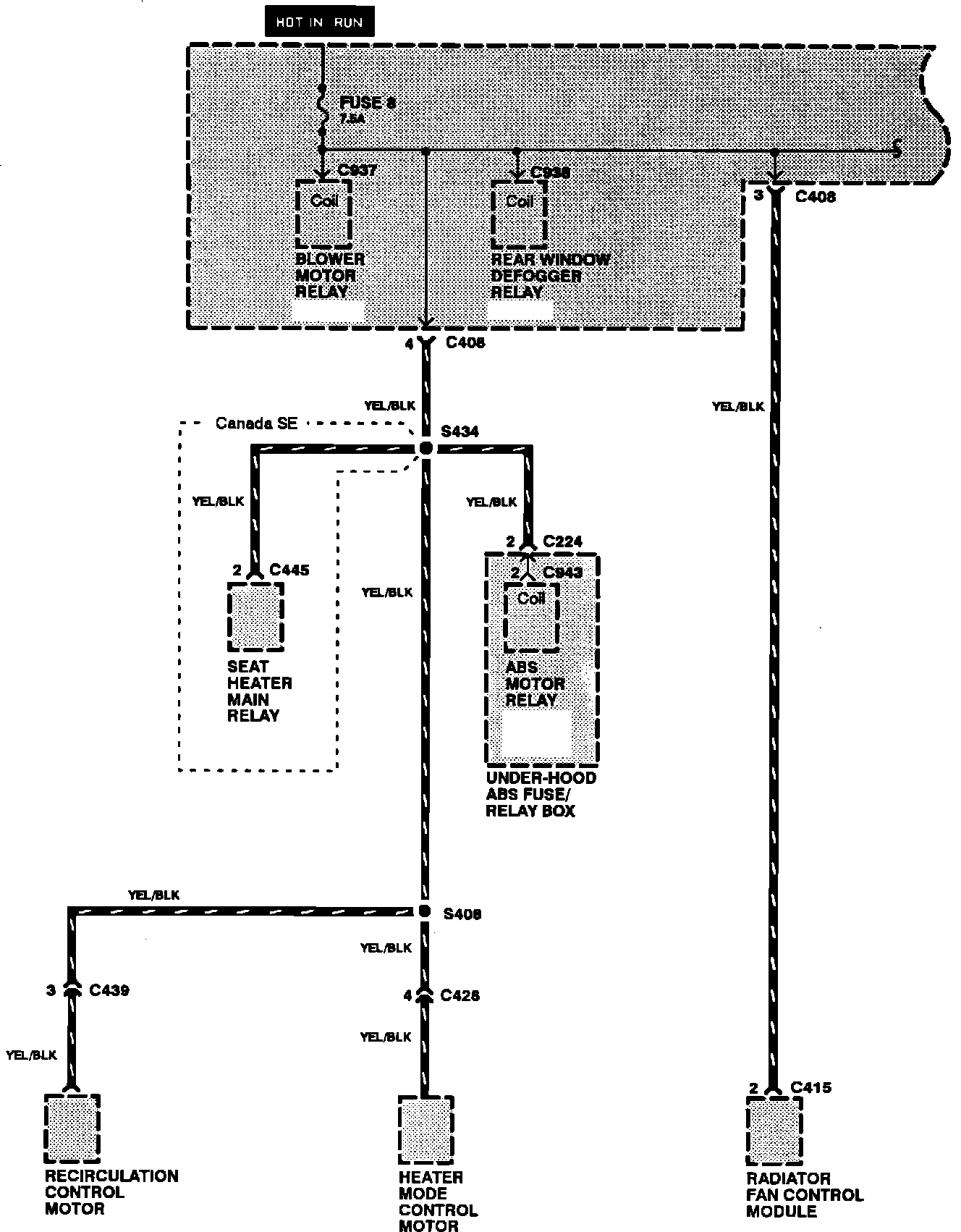

Fuse 8
Fuse 8

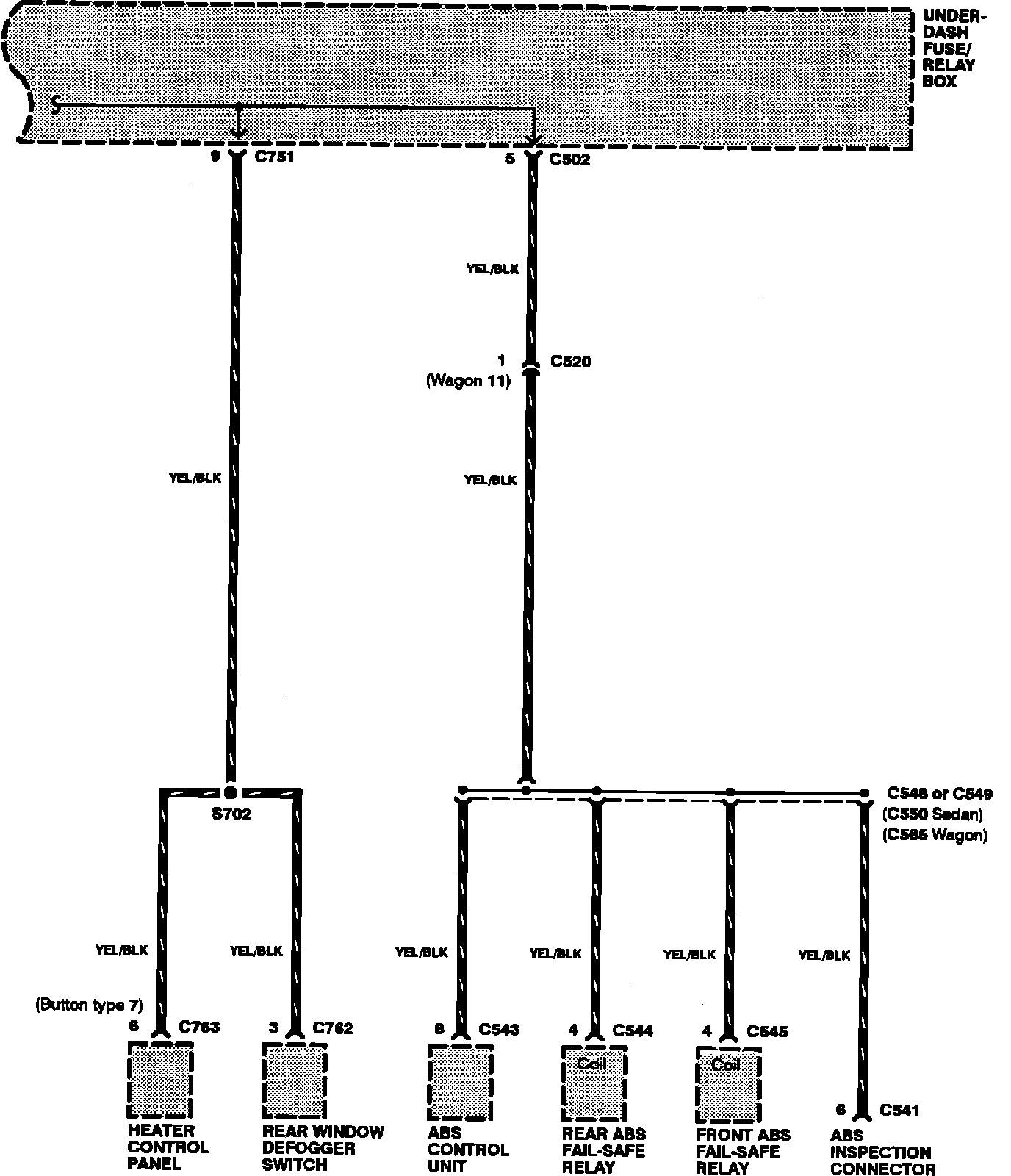

Under-dash Fuse / Relay Box:
Under-dash Fuse / Relay Box:
