Honda
>>
1993
>>
Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Under-Dash Fuse/Relay Box
>>
Fuse 10, 11
Fuse 10, 11

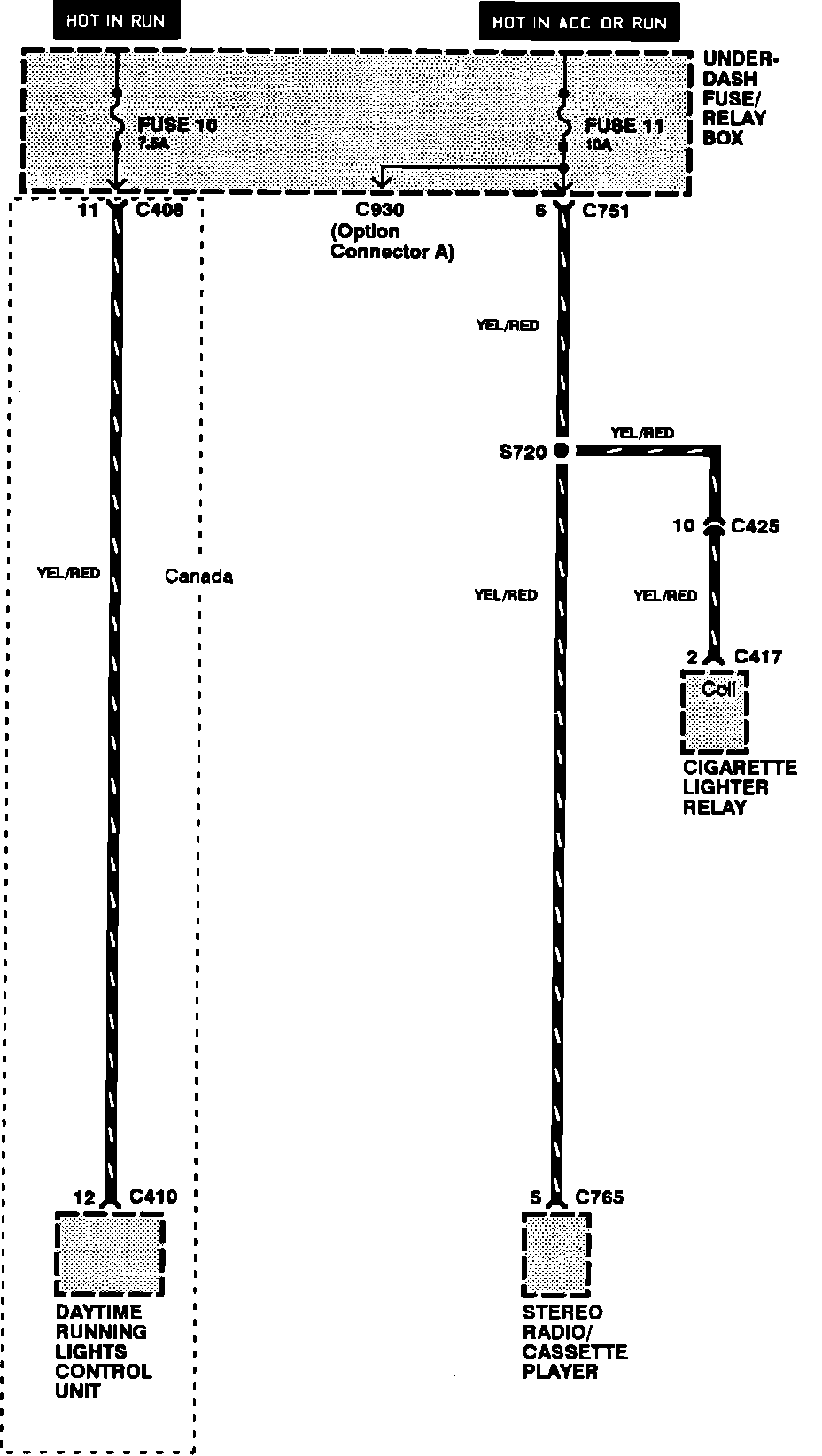

Under-dash Fuse / Relay Box:
