SRS Indicator Light Doesn't Come On
THE SRS WARNING LIGHT, DOES NOT COME "ON".

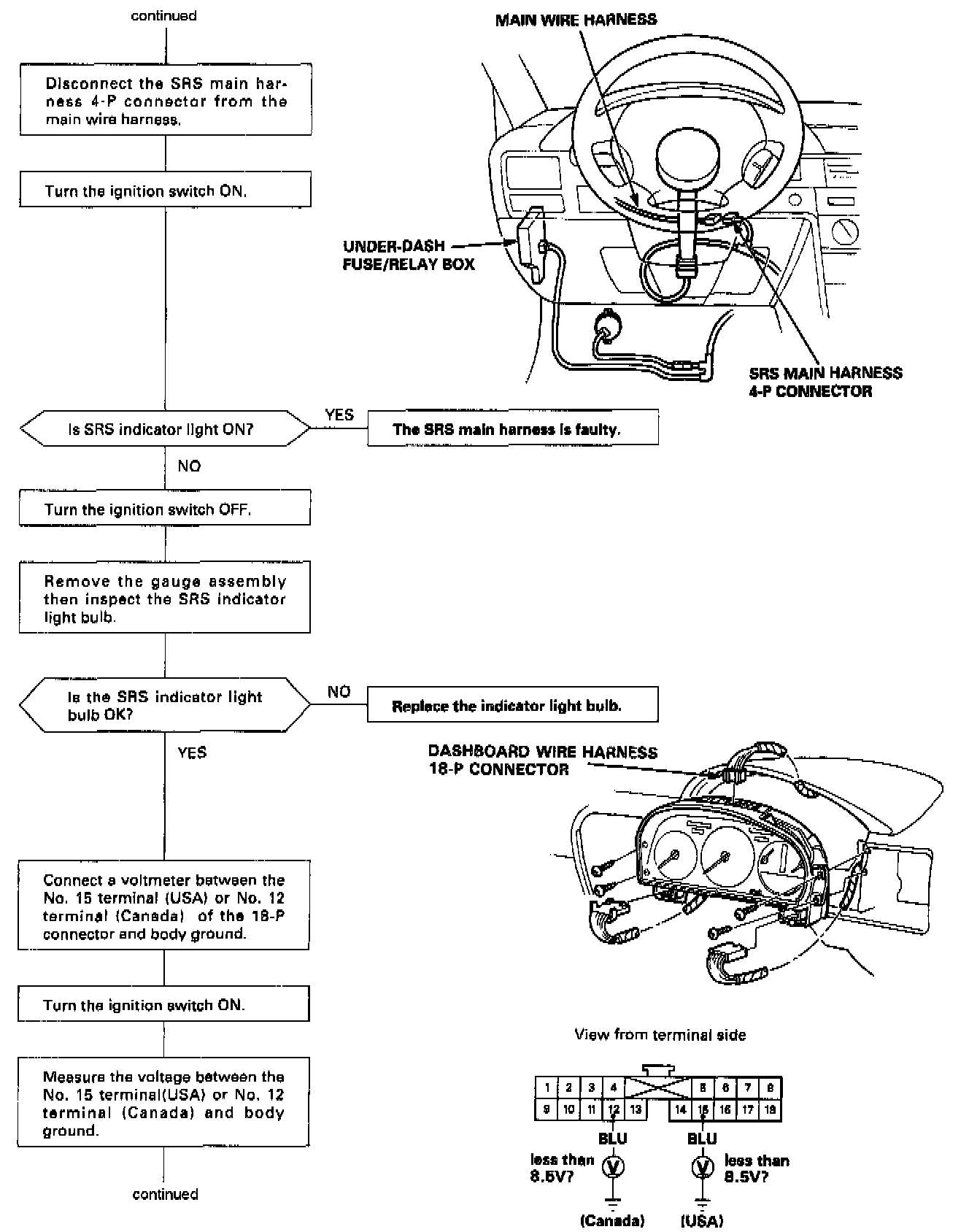

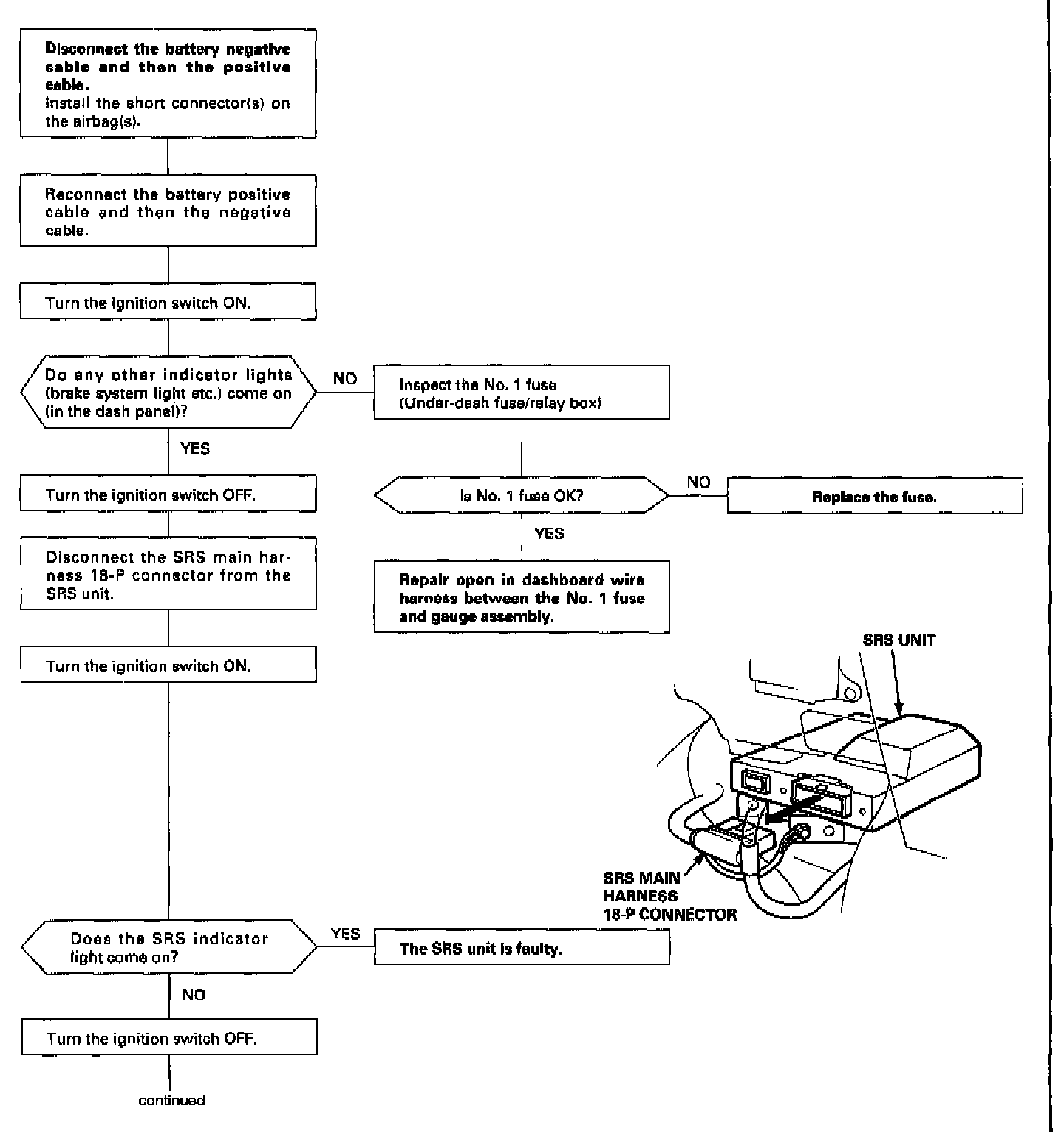

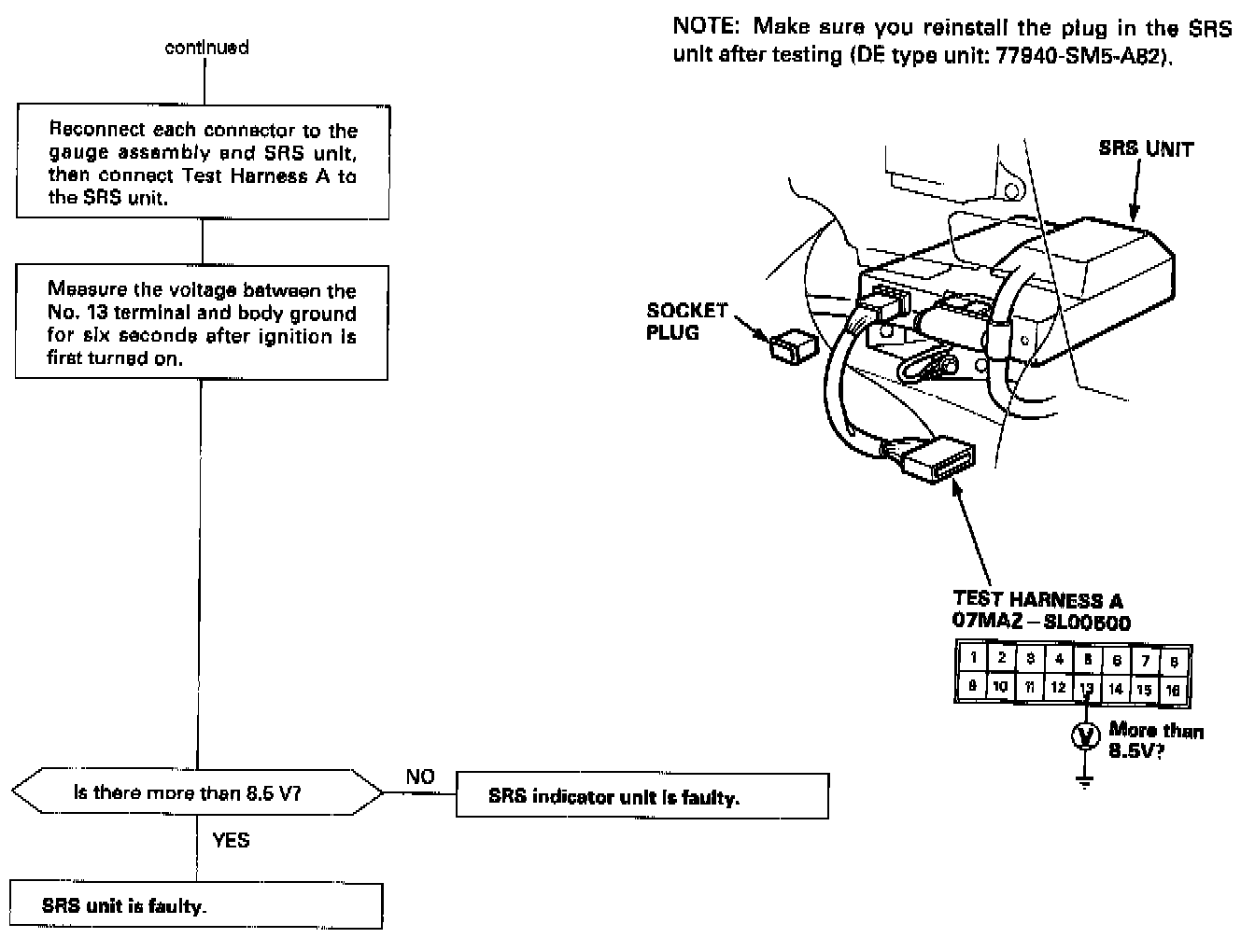

Follow the procedure(flow chart) to diagnose the malfunction:
1 OF 4:
2 OF 4:
3 OF 4:
4 OF 4:
