Failure Mode F

Failure Mode F: Open In Airbag Inflator or Cable Reel

NOTE:
The radio may have a five-digit coded theft protection circuit. Be sure to get the customer's code number before disconnecting the battery cables.

1. Before disconnecting any part of the SRS wire harness, install the short connector(s).

2. Connect Test Harness B (07MAZ - SPOO5OO) between the SRS unit and SRS main harness 18-P connector.

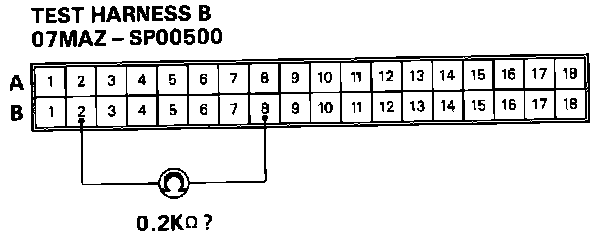

Test Harness B Connector Pinout:

3. Reconnect the front passenger's airbag connector, then measure the resistance between the No.2 terminal and the No.8 terminal.
- If resistance is more than 0.2 Kohm, go to step 4.
- If resistance is less than 0.2 Kohm, the SRS unit is faulty. Substitute a Known-good SRS unit and recheck the voltages according to the appropriate Failure Mode Diagnostic Chart. Refer to Failure Mode Diagnostic Chart.

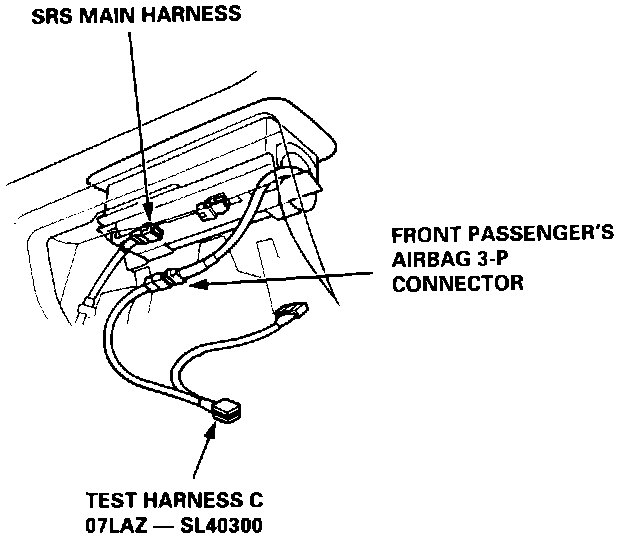

Installation Of Test Harness C:

4. Disconnect the front passenger's airbag 3-P connector from the SRS main harness, then connect Test Harness C (07LAZ - SL40300) to the front passenger 5 airbag side of the connector.

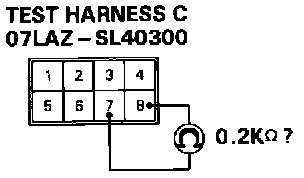

Test Harness C Connector Pinout:

5. Measure the resistance between the No. 7 terminal and the No. 8 terminal.
- If resistance is more than 0.2 Kohm, the front passenger's airbag inflator is faulty. Replace the front passenger's airbag assembly and recheck the voltages according to the appropriate Failure Mode Diagnostic Chart. Refer to Failure Mode Diagnostic Chart.
- If resistance is less than 0.2 Kohm, the SRS main harness is faulty. Replace it and recheck the voltages according to the appropriate Failure Mode Diagnostic Chart. Refer to Failure Mode Diagnostic Chart.
