USA: EX, SE, Canada: EX-R, SE Models Only

CAUTION: Do not adjust IAB control valve full-close screw. It is factory preset.

USA: EX, SE (CANADA: EX-R, SE) Models only.

1. Check IAB control valve shaft for binding or sticking.
2. Check valve for smooth movement.

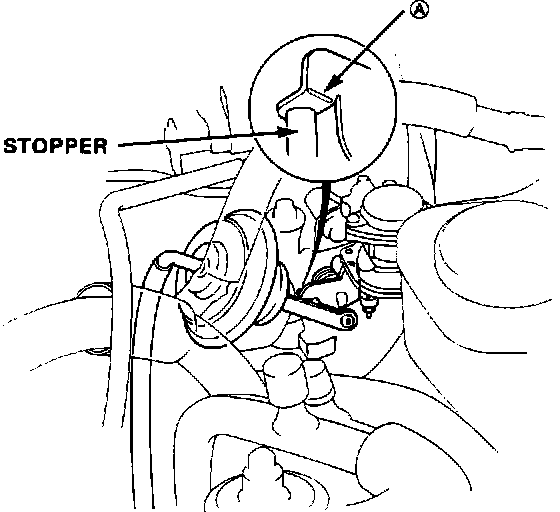

Intake Air Bypass Stopper:

3. With engine idling, be sure "A" of the IAB control valve is in close contact with stopper when vacuum hose is disconnected.

Intake Air Bypass Full-close Screw:

4. With engine idling, be sure "B" of the IAB control valve is in close contact with the full-close screw when the vacuum hose is connected.
a. If problem found, clean linkage and shafts with carburetor spray cleaner.

Intake Air Bypass (IAB) Control System:

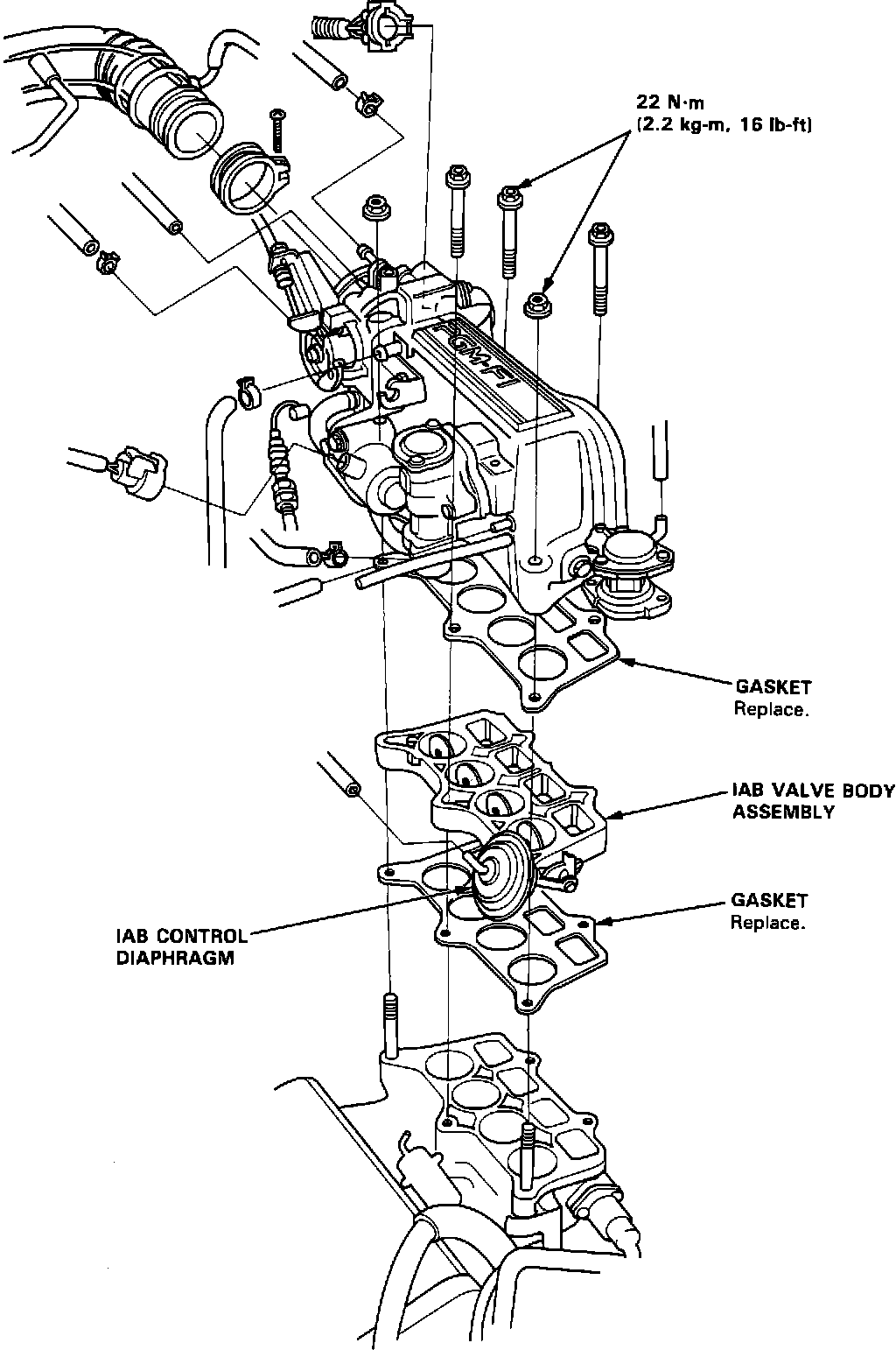

b. If problem still exists after cleaning, disassemble the intake manifold and check the IAB valve body assembly.
