Balance Shaft Belt: Testing and Inspection

NOTE: For more detailed instructions on timing cover access and removal, refer to Timing Belt. Service and Repair

1. Disconnect the alternator terminal and the connector, then remove the engine wire harness from the cylinder head cover.
2. Remove the cylinder head cover.
3. Remove the timing belt upper cover.
4. Remove the crankshaft pulley.
5. Remove the timing belt lower cover.
6. Install the crankshaft pulley.

Timing Balancer Belt Inspection:

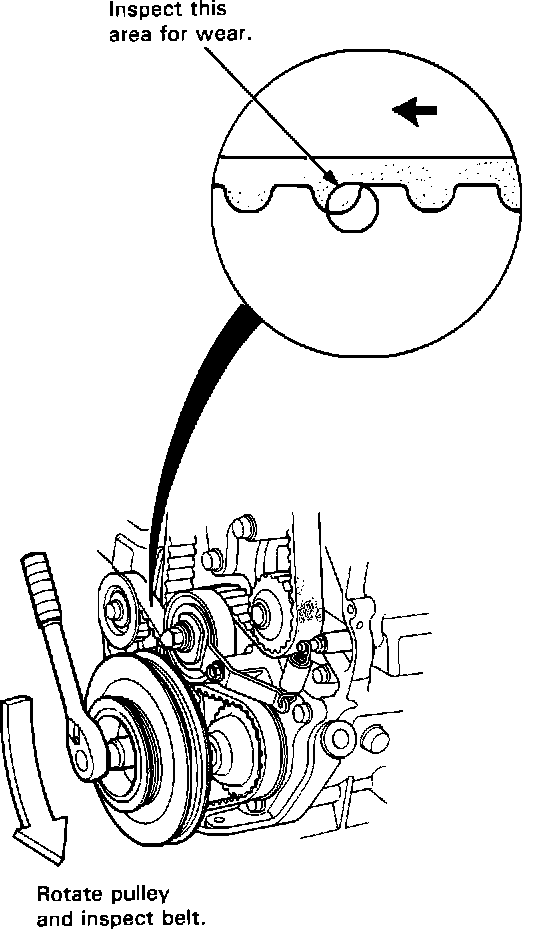

7. Inspect the timing belt for cracks and oil soaking.

NOTE:
- Replace the belt if oil soaked.
- Remove any oil or solvent that gets on the belt.

8. After inspecting, retorque the crankshaft pulley bolt to 220 Nm (22.0 kg-m, 159 lb ft).
