Glove Box Lamp: Testing and Inspection

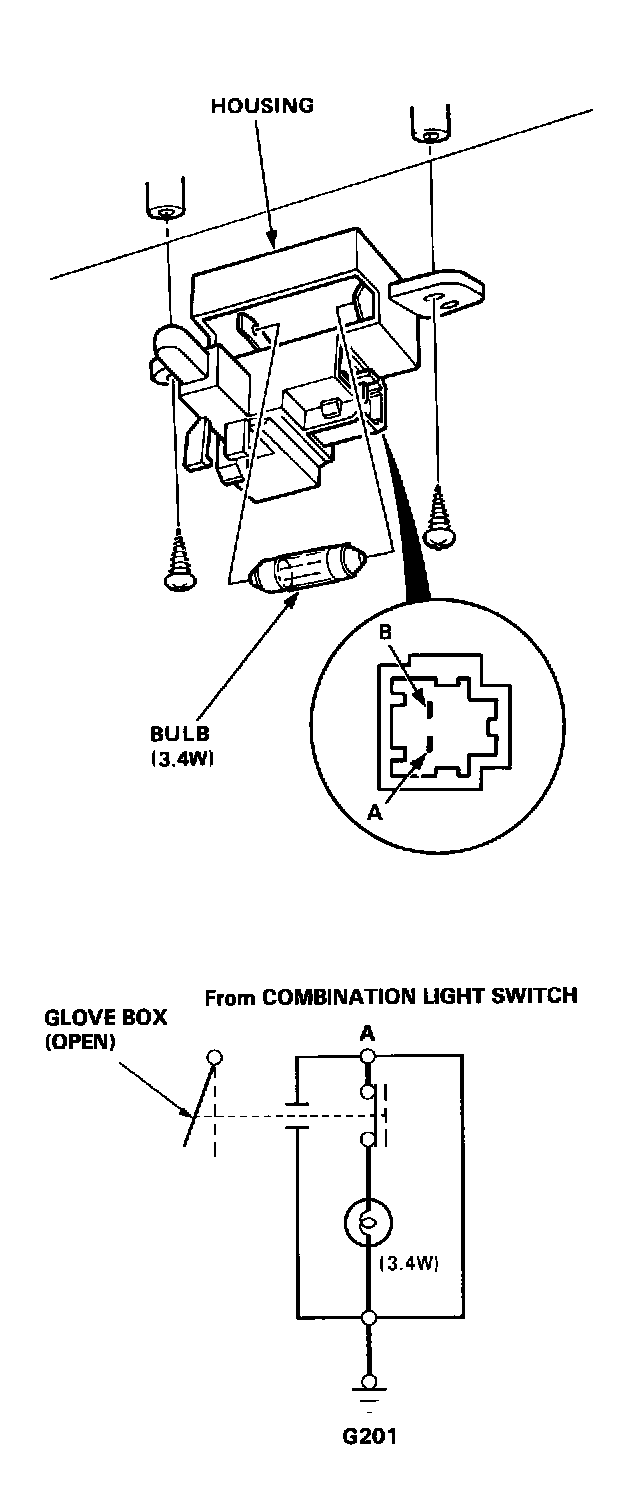

Glove Box Lamp Test





1. Open the glove box.
2. Disconnect the 2-P connector from the light.
3. There should be continuity between the A and B terminals with a bulb installed.
