Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Speedometer Head >> Testing and Inspection

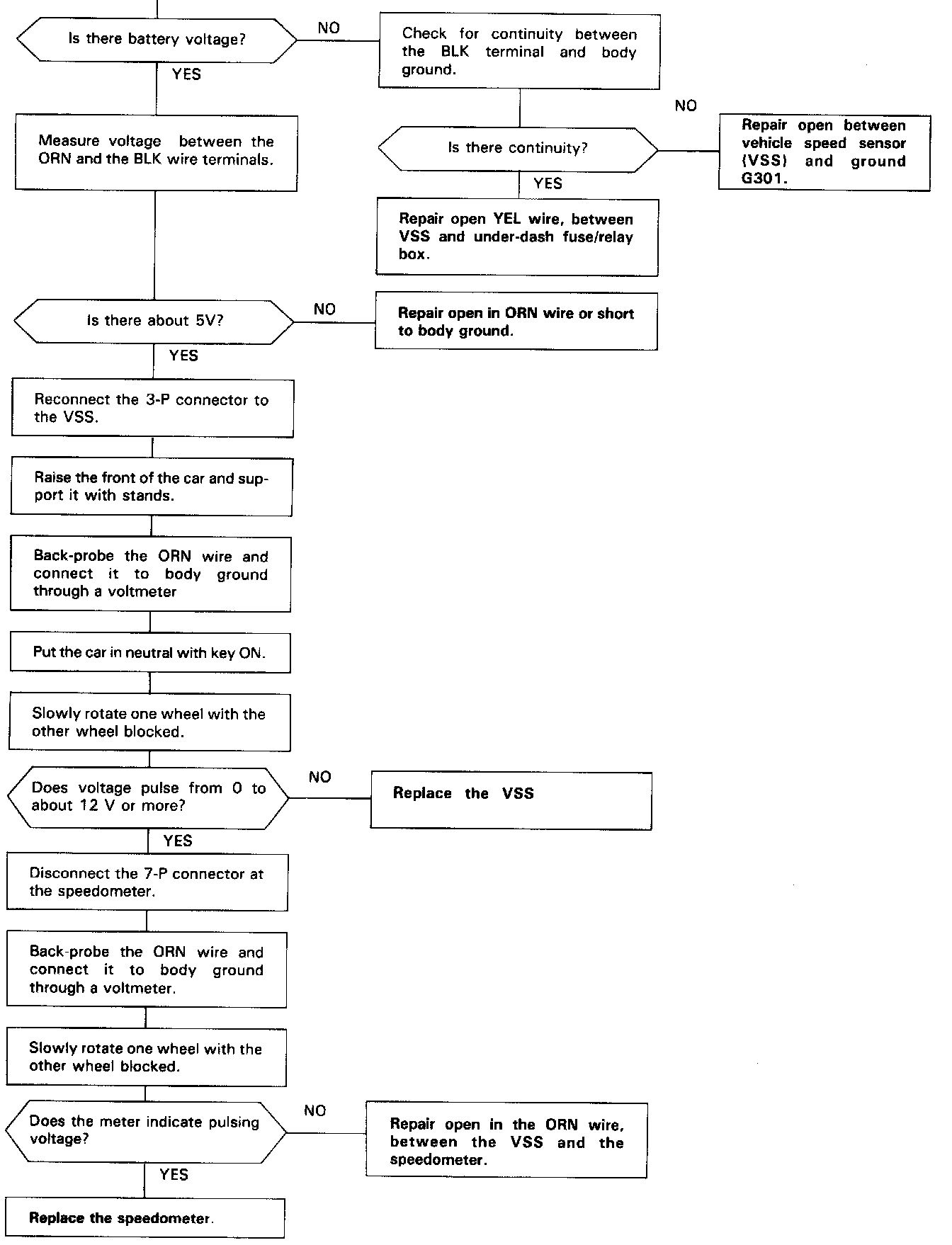

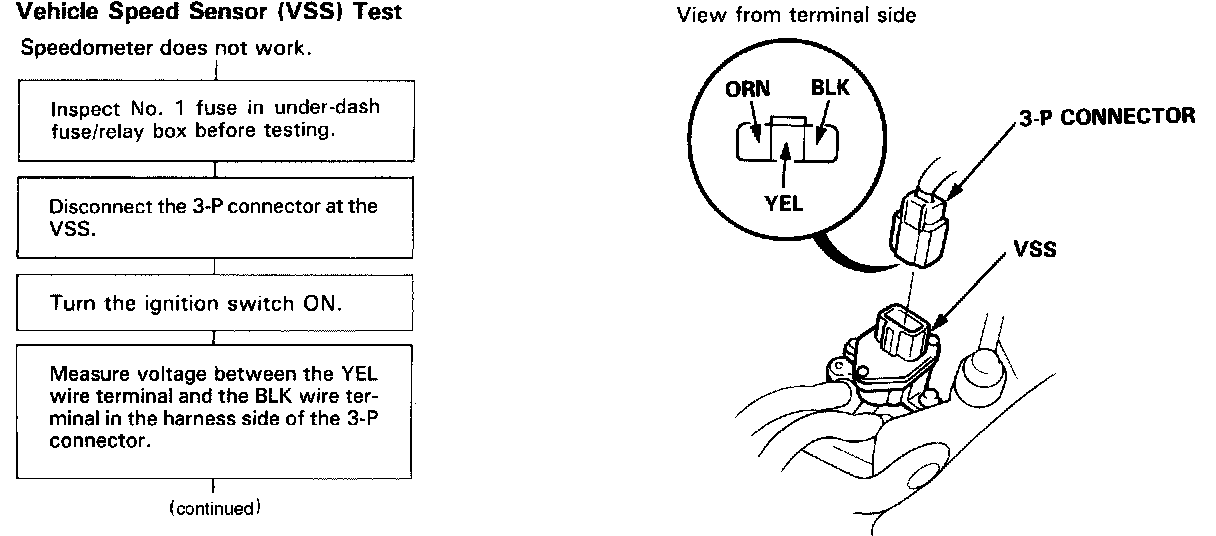

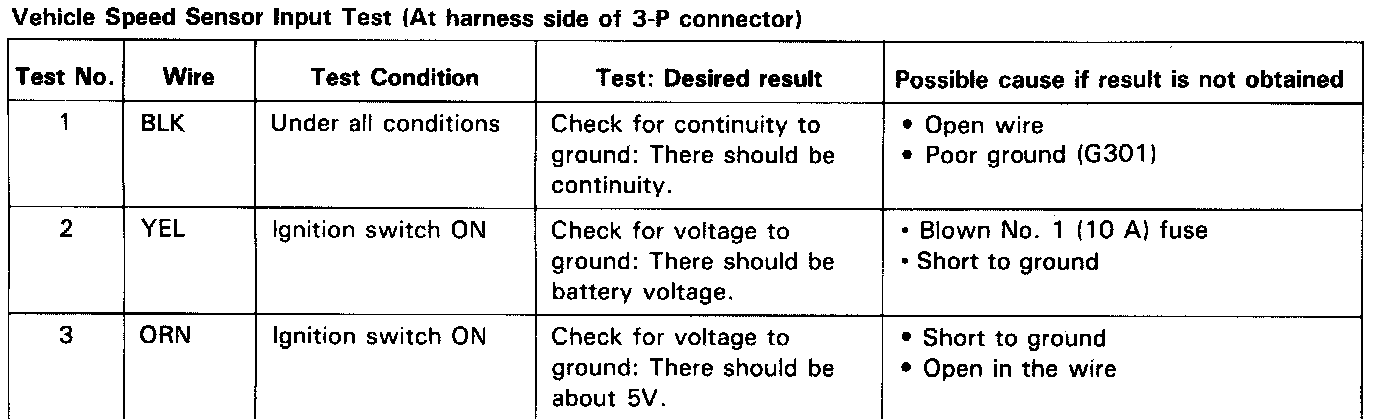

Speedometer Head: Testing and Inspection












NOTE: A short to ground in the ORN wire can be caused by a short in any component connected to it.
