Function (Mode Control) Cable

MODE CONTROL CABLE ADJUSTMENT (LEVER TYPE ONLY)

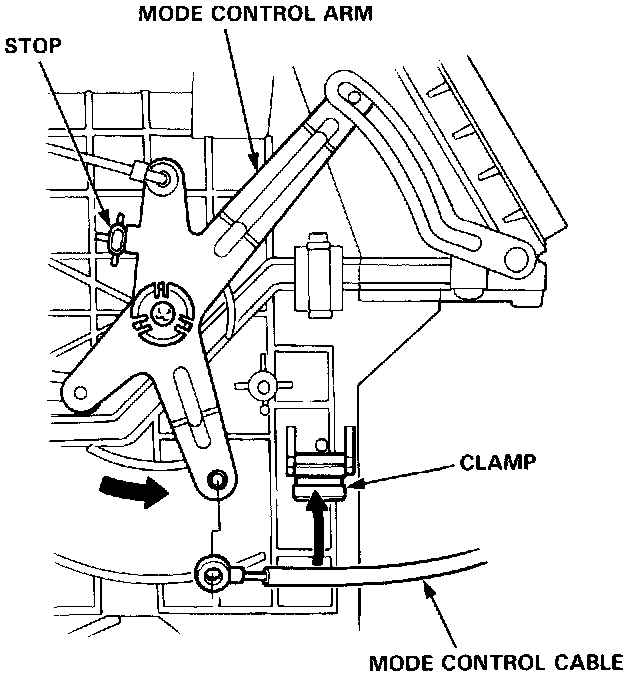

1. Disconnect the mode control cable from the mode control arm and clamp.
2. Slide the mode control lever to DEFROST.
3. Turn the mode control arm to the stop and connect the end of the mode control cable to the arm.
4. Gently slide the mode control cable housing back from the end enough to take up any slack in the cable, but not enough to make the mode control lever move, then snap it in the clamp.
