EX/SE (USA), EX-R/SE (Canada)

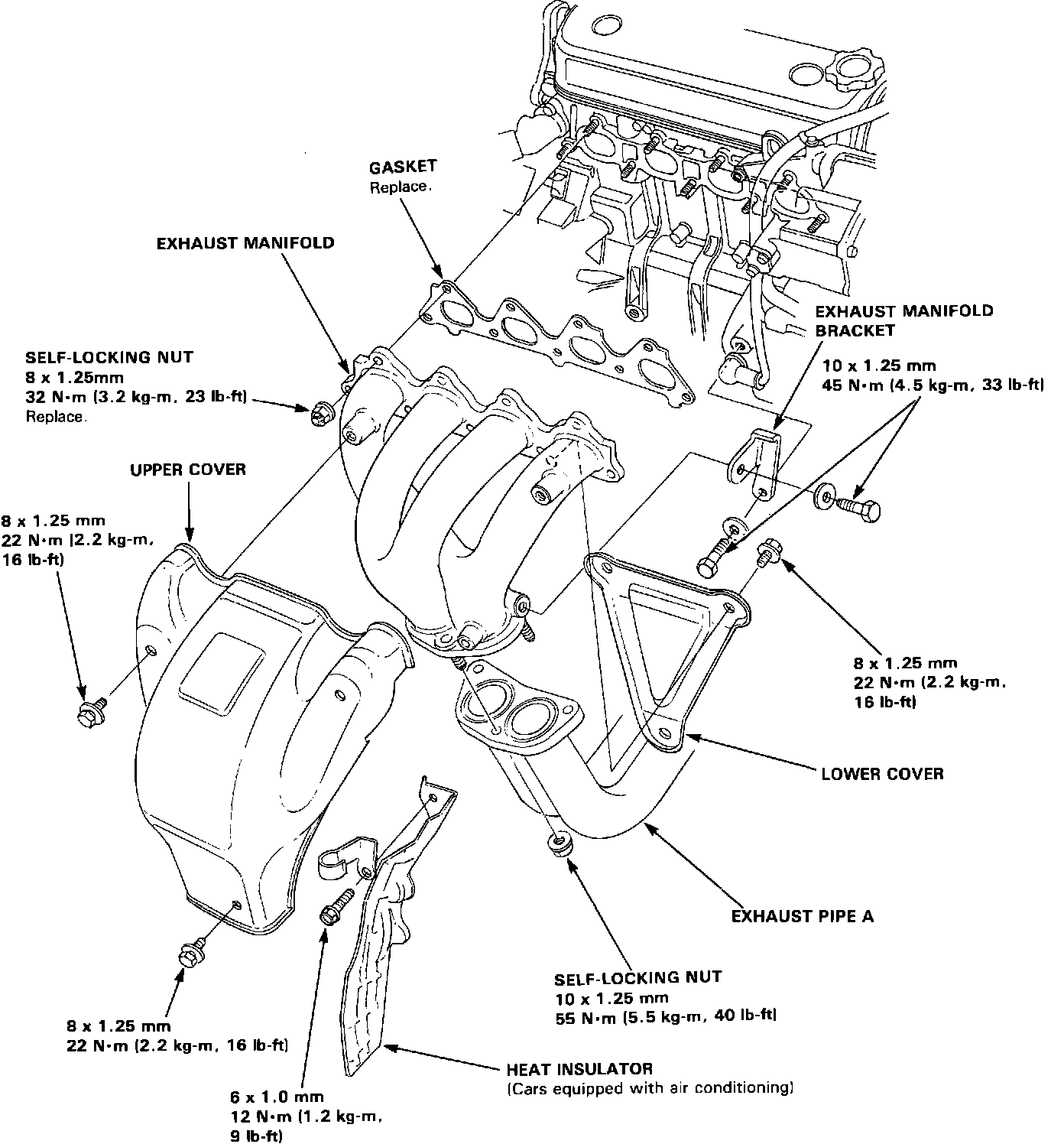

Exhaust Manifold Exploded View:
1. Refer to image for removal and installation.
2. Use new gaskets and self-locking nuts when reassembling.
CAUTION: Check for folds or scratches on the surface of the gasket.
1. Refer to image for removal and installation.
2. Use new gaskets and self-locking nuts when reassembling.
CAUTION: Check for folds or scratches on the surface of the gasket.
